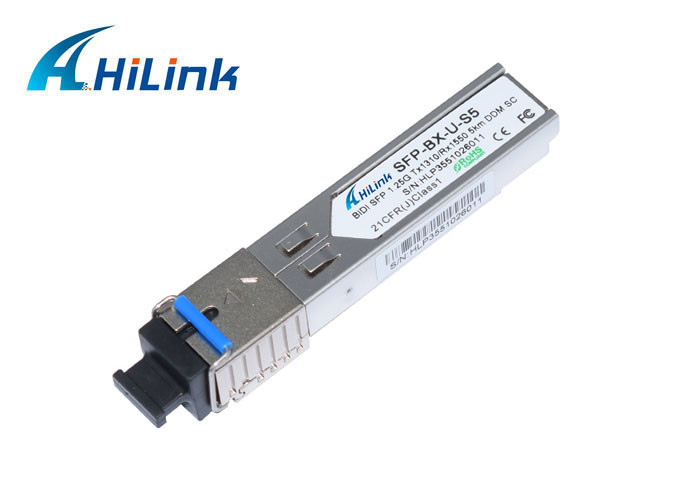

Single core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm SC Connector

Single core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm SC Connector

    • Single core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm  SC Connector
    • Single core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm  SC Connector
  • Single core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm  SC Connector

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE,ROHS,FCC
    Model Number: HL-SFP1G-BXx-S3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pair
    Price: Negotiable
    Packaging Details: Static bag, Plastic Flat, Retail box etc.
    Delivery Time: 1-6working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 50000pairs/month
    Contact Now
    Detailed Product Description
    Product Name: 1.25G SFP BIDI 3Km Wavelength A: TX1310/RX1550nm
    Wavelength B: TX1550/RX1310nm Distance: 3Km
    DDM: Yes Operating Temperature: 0°C To 70°C
    Connector Type: Single SC CE Rohs: Compliant

    Cisco Compatible SM BIDI SFP Transceiver Module 1310nm / 1550nm SC Connector



    Hilink WDM or BIDI small form-factor pluggable (SFP) is a compact optical transceiver, module used in optical communications for both telecommunication and data bidirectional communications applications. BIDI 1G optics are a small form factor pluggable module for Single Mode Fast Ethernet, Gigabit, Fiber Channel, SDH/SONET applications.



    A.Type: Tx1310nm /Rx1490nm and Tx1490nm /Rx1310nm
    B.Type: Tx1310nm /Rx1550nm and Tx1550nm /Rx1310nm
    C.Type: Tx1490nm /Rx1550nm and Tx1550nm /Rx1490nm

    D.Type: Tx1270nm/Rx1330nm and Tx1330nm/Rx1270nm



    Features:
    Up to 1.25 Gb/s bi-directional data links
    Hot-pluggable SFP footprint
    1310nm FP Transmitter and 1490 PIN Receiver

    1550 DFB Transmitter and 1310 PIN Receiver

    Single LC/SC connector
    Low power dissipation
    Metal enclosure, for lower EMI
    Up to 3km point to point transmission
    Single 3.3V power supply

    Compliant with SFP MSA Specification

    Average Output Power: -15~-6dBm

    Receiver Sensitivity: -20dBm

    Operating temperature range: 0°C to 70°C



    Applications:

    •  Gigabit Ethernet
    •  Fiber Channel
    •  WDM Application
    •  Telecommunication
    •  PON Network

    General

    Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.






    BiDi(WDM) Transceivers



    155M/622M BiDi SFP LC/SC 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
    4/2/1G BIDI SFP LC/SC 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
    10G SFP BiDi SFP+ BiDi 1270 20km SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
    SFP+ BiDi 1330 20km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
    SFP+ BiDi 1270 40km SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
    SFP+ BiDi 1330 40km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
    10G XFP BiDi XFP BiDi 1270 20km XFP BiDi 20km Tx1270nm/Rx1330nm LC
    XFP BiDi 1330 20km XFP BiDi 20km Tx1330nm/Rx1270nm LC
    XFP BiDi 1270 40km XFP BiDi 40km Tx1270nm/Rx1330nm LC
    XFP BiDi 1330 40km XFP BiDi 40km Tx1330nm/Rx1270nm LC



    Single core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm  SC ConnectorSingle core Compatible Cisco SM BIDI SFP Fiber Module 1310nm / 1550nm  SC Connector
