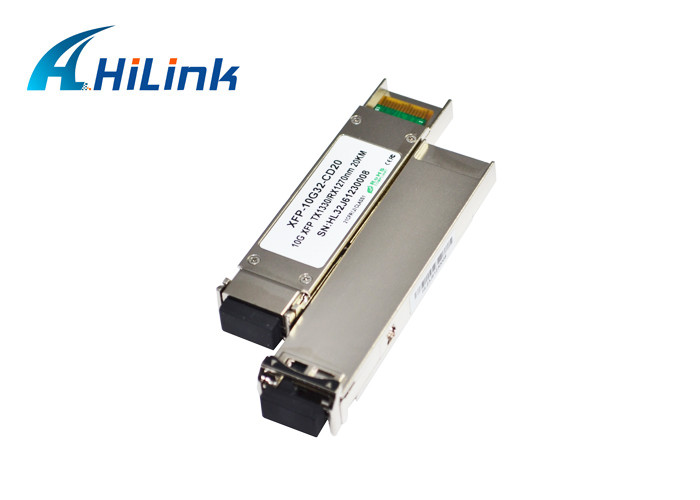

WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM

WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM

    • WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
    • WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
    • WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM
  • WDM 1330/1270nm BIDI Single Fiber XFP Transceiver 10G Module 20KM

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE ROHS FCC
    Model Number: HL-XFP-WDM

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 pair
    Price: Negotiable
    Packaging Details: Poly bag
    Payment Terms: L/C, T/T, Western Union,paypal
    Supply Ability: 500/pair/month
    Contact Now
    Detailed Product Description
    Data Rate: 10G Wavelength: 1270/1330nm
    Transfer Distance: 20km Connector: LC
    DDM: Yes

    WDM 1330/1270nm BIDI XFP Single Fiber Transceiver 10G Module 20KM



    PRODUCT FEATURES



    Compatible Brand Cisco Juniper Mikrotik .. Vendor Name Hilink
    Form Type XFP Max Data Rate 10Gbps
    Wavelength 1270nm/1330nm Max Cable Distance 20km
    Interface LC simplex Optical Components DFB BiDi
    Cable Type SMF DOM Support Yes
    TX Power -7~0.5dBm Receiver Sensitivity < -13dBm
    Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000





    APPLICATIONS



    10GBASE-BX 10.3125Gb/s Ethernet

    10GBASE-BX 9.953Gb/s Ethernet

    SONETOC-192&SDHSTMI-64.





    PRODUCT DESCRIPTION



    XFP BIDI 20KM is hot pluggable 3.3V XFP Form transceiver module.

    It designed expressly for high-speed communication applications that require rates upto 11.3Gb/s,

    it designed to be compliant with XFP MSA Agreement.



    WDM XFP 20km Optical Parameter

    Parameter Symbol Min Typ Max Unit
    Maximum Launch Power PMAX -6 -3 +0.5 dBm
    Optical Center Wavelength UBXFP-20-U λ 1260 1270 1280 nm
    UBXFP-20-D 1320 1330 1340
    Optical Extinction Ratio ER 3.5     dB
    Spectral Width Δλ     1 nm
    Sidemode Supression ratio SSRmin 30     dB
    Rise/Fall Time (20%~80%) Tr/Tf     50 ps
    Optical Eye Mask   IEEE802.3ae
    Operating Date Rate BR 9.95   11.3 Gb/s
    Receiver Sensitivity Sen     -13.4 dBm
    Maximum Input Power PMAX 0     dBm
    Optical Center Wavelength UBXFP-20-U λC 1320 1330 1340 nm
    UBXFP-20-D 1260 1270 1280
    Receiver Reflectance Rrx     -13 dB
    LOS De-Assert LOSD     -14 dBm
    LOS Assert LOSA -30     dBm
    LOS Hysteresis LOSH 0.5   5

    dB





    Hilink Advantage

    1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
    2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
    3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
    4. We provide 3 years warranty for all our products from the date of shipment.
    5. All of our products get through CE,ROHS,FCC.
    6. We also provide DWDM CWDM WDM with optical solutions.
