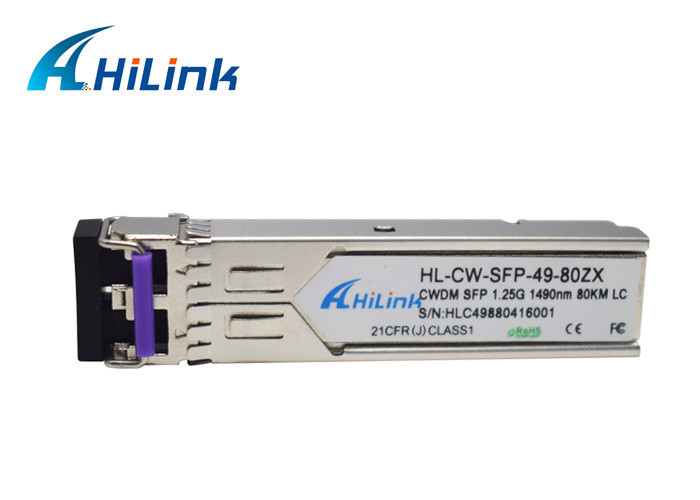

1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance

1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance

    • 1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance
    • 1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance
    • 1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance
    • 1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance
    • 1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance
    • 1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance
  • 1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hilink
    Certification: CE,ROHS,FCC
    Model Number: HL-CW-1.25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiation
    Packaging Details: Blister Packaging, 10pcs/ tray
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500pcs/month
    Contact Now
    Detailed Product Description
    Name: 1.25G CWDM SFP Wavelength: 1410nm 1530nm 1550nm 1570nm 1590nm 1610nm
    Connector: Dual LC Application: CWDM Solution
    Transmission Rate: 1.25G Warranty: 3 Years
    DDM: Yes Transmission Distance: 80km

    CWDM 1.25G SFP 80KM  Optical Transceiver Module LC DDM





    The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 80km transmission distance with SMF.


    FEATURES :

    Product Name CWSFP-1410-80D Vendor Name HiLink
    Form Type SFP Max Data Rate 1000Mbps
    Wavelength 1410nm Max Cable Distance 80km
    Interface LC Duplex Optical Components DFB CWDM+PIN CWDM
    Cable Type SMF DOM Support Yes
    TX Power 0~5dBm Receiver Sensitivity <-25dBm
    Commercial Temperature Range 0 to 70°C (32 to 158°F) Power Supply +3.3V



    RELEVANT SOLUTION :



    CWDM MUX Modules Optical Transceiver Module 1.25G SFP 80KM 1410nm LC DDM -25dB with isolator

    1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance

    1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance1.25G Transmission Rate CWDM SFP Transceiver Dual LC Connector 80km Max Cable Distance
