10G BIDI SFP Transceiver Module 1490/1550nm LC Connector 3 Years Warranty

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-SFP-BIDI
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000pcs/month
  • Detail Information
  • Product Description

Detail Information

Data Rate: 10g Wavelength: 1490/1550nm
Distance: 80km Connector: LC
Warranty: 3 Years
High Light:

sfp optical transceiver

,

sfp fiber module

Product Description

10G BIDI SFP Transceiver Module 1490/1550nm LC Connector 3 Years Warranty









Features

SFP MSA package with single LC connector

Typical bidi 1490/1550nm and 1550nm/1490nm for commission

APD receiver for high sensitivity

Very low EMI and excellent ESD protection

Digital Diagnostic Monitor Interface

Hot pluggable

Support 9.95Gb/s to 11.1Gb/s serial optical interface

Up to 80km distance

Compliant with SFP+ MSA

High transmission margin

+3.3V single power supply

Below <1.5W power consumption







Applications

10GBASE-BX at 10.3125 Gb/s

Other optical link







STANDARD

SFP+ MSA Compliant

SFF-8472 reversion 9.5 compliant

IEEE802.3-2005 compliant

Telcordia GR-468-CORE compliant

FCC 47 CFR Part 15,Class B compliant

FDA 21 CFR 1040.10 and 1040.11,class1 compliant

RoHS compliant





PRODUCT DESCRIPTIONS:

The 10G BIDI SFP 80km is hot pluggable 3.3V Small-Form-Factor transceiver module.

It designed expressly for high-speed communication applications that require rates up to 11.1Gbps,

it designed to be compliant with SFF-8472 and SFP+ MSA. The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable.

Tx Fault is provided to indicate that degradation of the laser.

Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.







BiDi(WDM) Transceivers



155M/622M BiDi SFP LC/SC 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
4/2/1G BIDI SFP LC/SC 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
10G SFP BiDi SFP+ BiDi 1270 20km SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 20km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 40km SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 40km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
10G XFP BiDi XFP BiDi 1270 20km XFP BiDi 20km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 20km XFP BiDi 20km Tx1330nm/Rx1270nm LC
XFP BiDi 1270 40km XFP BiDi 40km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 40km XFP BiDi 40km Tx1330nm/Rx1270nm LC

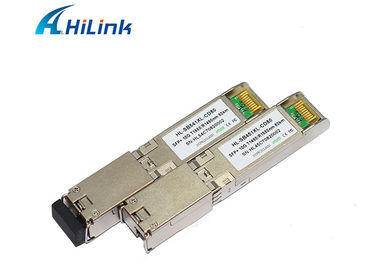

Photo show:

10G BIDI SFP Transceiver Module 1490/1550nm LC Connector 3 Years Warranty 0







Packaging & Shipping

We provide safe and reliable packaging:Plastic box+Carton

Delivery time:2-5 working days

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.






Our Services


OEM and ODM

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.







What we supply

We supply wide range of high quality optical transceiver modules and passive CWDM/DWDM Mux/Demux. Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.

Company Information

We are specialized in supplying network equipments. Our main products are optical transceiver modules and passive CWDM/DWDM multiplexers. The transceiver modules include SFP, GBIC, SFP+, XFP,X2, Xepnak, and CWDM/DWDM transceivers. The transceivers can be compatible with almost all the brands switches.

We supply high quality products with competitive prices. We have professional staff who are always here to provide you technical support and best services.

The most populor modules we often have stock. The items with no stock often have very short delivery time too. If you can't find the items needed on our website you just contact us. We will reply you shortly.

10G BIDI SFP Transceiver Module 1490/1550nm LC Connector 3 Years Warranty 2









FAQ

1. Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use second-hand components.

2. Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.

3. Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

4. Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.

5. Q:What devices can your products compatible with?
A:Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

6. Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
