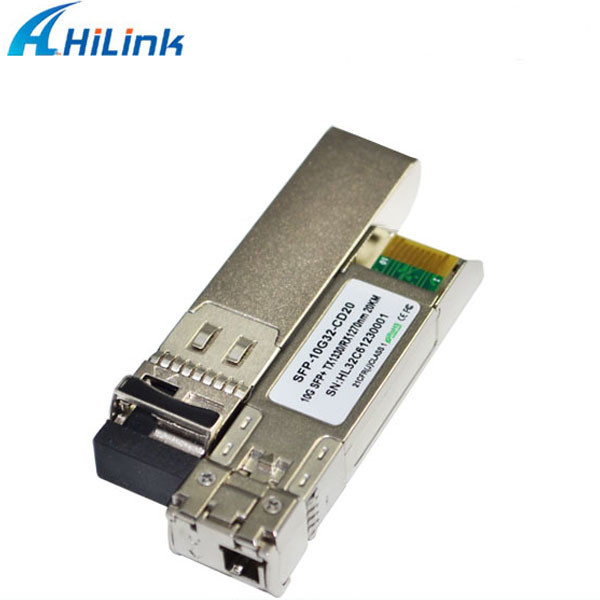

LC Connector SFP+ Transceiver Module HL-10G- BIDI-SFP 20km Bidi 10g Sfp 1270/1330nm

LC Connector SFP+ Transceiver Module HL-10G- BIDI-SFP 20km Bidi 10g Sfp 1270/1330nm

    • LC Connector SFP+ Transceiver Module HL-10G- BIDI-SFP 20km Bidi 10g Sfp 1270/1330nm
    • LC Connector SFP+ Transceiver Module HL-10G- BIDI-SFP 20km Bidi 10g Sfp 1270/1330nm
    • LC Connector SFP+ Transceiver Module HL-10G- BIDI-SFP 20km Bidi 10g Sfp 1270/1330nm
    • LC Connector SFP+ Transceiver Module HL-10G- BIDI-SFP 20km Bidi 10g Sfp 1270/1330nm
  • LC Connector SFP+ Transceiver Module HL-10G- BIDI-SFP 20km Bidi 10g Sfp 1270/1330nm

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE,ROHS,FCC
    Model Number: HL-10G- BIDI-SFP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Static bag, Plastic Flat, Retail box, by requires
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 2000pcs/month
    Contact Now
    Detailed Product Description
    Data Rate: 10g Wavelength: 1270/1330nm
    Distance: 20km Connector: LC
    Warranty: 3 Years

    good quality sfp 20km bidi 10g sfp 1270/1330nm





    BIDI SFP-10G23-10
    10km BIDI SFP+ transceivers are designed for bi-directional 10G serial optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

    Features
    Operating data rate up to 10.3Gbps1270nm DFB Transmitter/ 1330nm ReceiverPower budget 9dB at leastSingle 3.3V Power supply and TTL Logic InterfaceSimplex LC Connector InterfaceHot PluggablePower Dissipation < 1.5WOperating case temperature Standard : 0°C to +70°CAverage Output Power:-5~0dBmReceiver Sensitivity:-14dBmCompliant with SFP+ MSA Specification SFF-8431Compliant with IEEE 802.3ae 10GBASE-LRCompliant with IEEE 802.3ae 10GBASE-LWBuilt-in Digital Diagnostic Function

    Applications
    10GBASE-LR at 10.3125Gbps10GBASE-LW at 9.953GbpsOther Optical Links


    BiDi(WDM) Transceivers

    155M/622M BiDi SFP LC/SC 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
    4/2/1G BIDI SFP LC/SC 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional
    10G SFP BiDi SFP+ BiDi 1270 20km SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
    SFP+ BiDi 1330 20km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
    SFP+ BiDi 1270 40km SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
    SFP+ BiDi 1330 40km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
    10G XFP BiDi XFP BiDi 1270 20km XFP BiDi 20km Tx1270nm/Rx1330nm LC
    XFP BiDi 1330 20km XFP BiDi 20km Tx1330nm/Rx1270nm LC
    XFP BiDi 1270 40km XFP BiDi 40km Tx1270nm/Rx1330nm LC
    XFP BiDi 1330 40km XFP BiDi 40km Tx1330nm/Rx1270nm LC

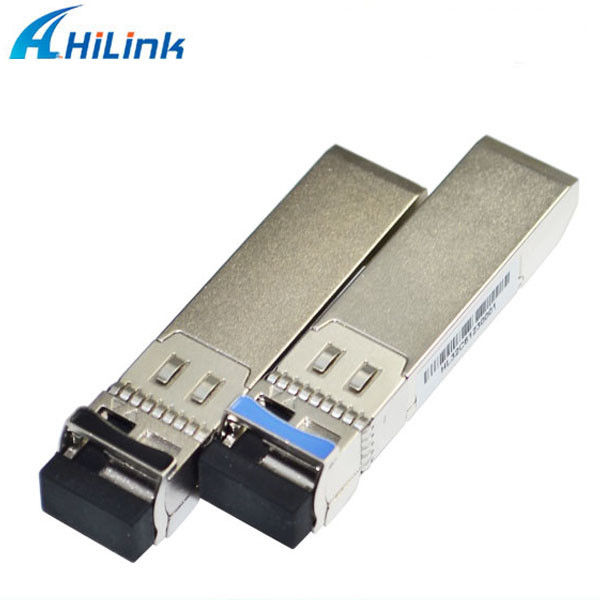

    Real Photo
