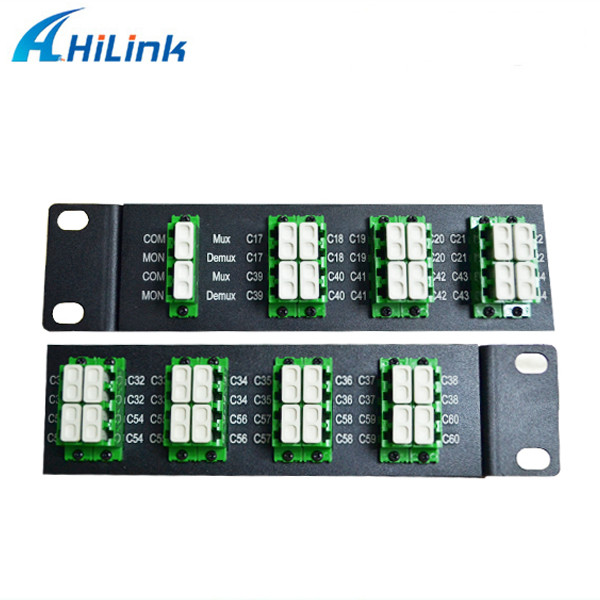

40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module HL-DWDM - MUX/DEMUX

40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module HL-DWDM - MUX/DEMUX

    • 40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module HL-DWDM - MUX/DEMUX
    • 40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module HL-DWDM - MUX/DEMUX
    • 40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module HL-DWDM - MUX/DEMUX
    • 40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module HL-DWDM - MUX/DEMUX
  • 40 Channel LC/APC 100GHz Duplex Athermal AWG DWDM Module HL-DWDM - MUX/DEMUX

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE, ROHS, TelcordiaGR-1221
    Model Number: HL-DWDM - MUX/DEMUX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Payment Terms: T/T, Western Union
    Supply Ability: 100pcs/week
    Contact Now
    Detailed Product Description
    Condition: New Channel: 40ch
    Logo: Can Be Customized Center Wavelength(nm): ITU, ITU+1
    Operating Temperature: -40~85°C Customerized: Yes



    40CH LC/APC 100GHz Duplex Athermal AWG DWDM Module







    Features



    - Low Insertion Loss

    - High Isolation

    - Low PDL

    - Compact Design

    - Good channel-to-channel uniformity

    - Wide Operating Wavelength

    - From 1260nm to 1620nm

    - Wide Operating Temperature

    - From -40°C to 85°C

    - High Reliability and Stability



    Applications



    - DWDM System

    - PON Networks

    - CATV Links





    1×N DWDM Mux/Demux Module



    Parameters
    Channel Space (GHz) 100 200
    Channel Number 1x4 1x8 1x16 1x4 1x8 1x16
    Center Wavelength (nm) ITU Grid
    Center Wavelength Accuracy (nm) ±0.05 ±0.1
    Channel Passband (@-0.5dB) (nm) 0.22 0.5
    Fiber Type SMF-28e with 900um loose tube or customer specified
    IL (dB) 1.8 3 4 1.7 2.9 3.8
    Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
    Isolation (dB) Adjacent Channel 25 28
    Non-Adjacent Channel 40
    PDL (dB) 0.2
    PMD (ps) 0.1
    RL (dB) 45
    Directivity (dB) 50
    Maximum Optical Power (mw) 300
    Operating Temperature (°C) -40~85
    Storage Temperature (°C) -40~85
    BOX Package (mm) 100x80x10 or 140x115x18
    LGX Package 1U,2U
    19"1 Rack mount Package 1U











    True photo show

    8.jpg40ch+40ch DWDM AAWG Mux & Demux (1).jpg40ch+40ch DWDM AAWG Mux & Demux (2).jpg40ch+40ch DWDM AAWG Mux & Demux (3).jpg





    Our Main Products

    As we have varies kinds of products,if you can't find the correct item you need,please send us an inquiry.We will reply shortly.

    Our Main Products.jpg









    Company Information

    Factory production line.jpgCertificates.JPG

    Packaging & Shipping

    International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.




    Our Services



    OEM/ODM order is available

    we can supply products according to your requirements, and design products label for your company.



    FAQ



    1.Do you sell second-hand products?

    No.All our products are brand new,we never use second-hand components.



    2.What devices can your products compatible with?

    Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.



    3.Do your products come with warranty?

    Yes,We provide 3 years warranty for all our products from the date of shipment.



    4.Whats the MOQ?

    To achieve customer`s satisfaction,we accept sample order,even one Piece.



    5.What payment terms do you accept?

    T/T,Paypal,Western Union are acceptable.



    6.How about Shipment?
    Generally we support the International Express: DHL, FedEx,EMS,TNT, UPS and so on. It

    takes 3-7 days.



    7.How to get the Tracking information?
    Our sales staff that you placed your order with,he/she will provide you with tracking information by email and over the phone.
