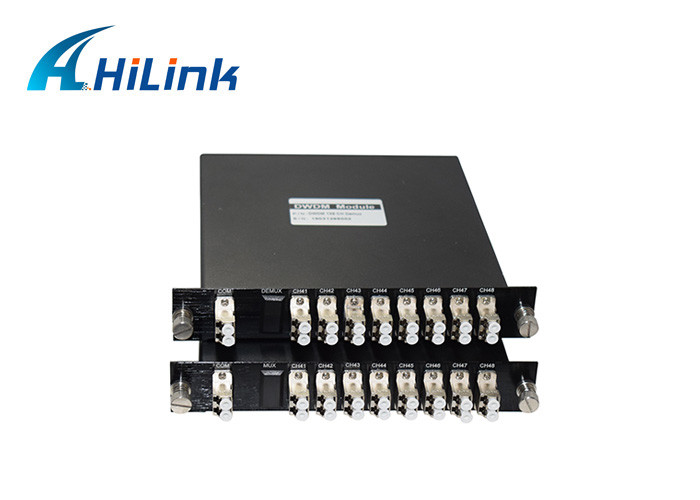

LGX Box Multiplexer Demultiplexer Optical Mux Demux 1x8ch Dual Fiber High Isolation

LGX Box Multiplexer Demultiplexer Optical Mux Demux 1x8ch Dual Fiber High Isolation

    • LGX Box Multiplexer Demultiplexer Optical Mux Demux 1x8ch Dual Fiber High Isolation
    • LGX Box Multiplexer Demultiplexer Optical Mux Demux 1x8ch Dual Fiber High Isolation
  • LGX Box Multiplexer Demultiplexer Optical Mux Demux 1x8ch Dual Fiber High Isolation

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE, ROHS, TelcordiaGR-1221
    Model Number: HL-DWDM - MUX/DEMUX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Payment Terms: T/T, Western Union
    Supply Ability: 100pcs/week
    Contact Now
    Detailed Product Description
    Condition: New Channel: 1X8ch
    Logo: Can Be Customized Operating Temperature: -40~85°C
    Customerized: Yes Operating Wavelength: C17~C63

    LGX Box Multiplexer Demultiplexer 1x8ch Dual Fiber DWDM mux Demux







    Features



    Low Insertion Loss

    High Isolation

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength

    From 1260nm to 1620nm

    Wide Operating Temperature

    From -40°C to 85°C

    High Reliability and Stability







    Applications



    DWDM System

    PON Networks

    CATV Links









    1×N DWDM Mux/Demux Module



    Parameters
    Channel Space (GHz) 100 200
    Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
    Center Wavelength (nm) ITU Grid
    Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
    Channel Passband (@-0.5dB) (nm) 0.22 0.5
    Fiber Type SMF-28e with 900um loose tube or customer specified
    IL (dB) 1.8 3 4 1.7 2.9 3.8
    Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
    Isolation (dB) Adjacent Channel 25 28
    Non-Adjacent Channel 40
    PDL (dB) 0.2
    PMD (ps) 0.1
    RL (dB) 45
    Directivity (dB) 50
    Maximum Optical Power (mw) 300
    Operating Temperature (°C) -40~85
    Storage Temperature (°C) -40~85
    BOX Package (mm) 100*80*10 or 140*115*18
    LGX Package 1U,2U
    19’ Rack mount Package 1U









    Package & Shipping:

    We provide safe and reliable packaging:Plastic box+Carton or by required

    Delivery time:2-5 working days
