HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm

HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm

    • HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm
    • HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm
  • HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE, ROHS,
    Model Number: HL-Fiber Converter

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Payment Terms: T/T, Western Union
    Supply Ability: 100pcs/week
    Contact Now
    Detailed Product Description
    Output Power: -8~3dBm Optic Fiber: 50/125u Multimode,62.5/125u Multimode,9/125u Single Mode
    Rx Sensitivity: -26dBm Wave Length: 1310nm/1550nm
    Optical Connector: FC、ST、SC (optional) Distance: 0~550M (MM) / 0~80KM (SM) (Default Distance Is 20Km)
    Customerized: Yes

    Hi-Definition Analog Video TVI/CVI/AHD to Fiber Converter






    Introduction

    Our 1-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD , can simultaneously transmit 1 channels video and 1-ch RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM , it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals . Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.





    Features

    •Lossless non-compression real time transmission.

    •Automatically identify formats of input video :AHD/TVI/CVI/PAL/NTSC/SECAM

    •Support 720P/25/30/50Hz , 960P/25/30Hz,1080P/30Hz

    •Advanced lightning protection design ,support 5.7KV lightning protection

    •Through LED indicators to inform its functional mode

    •Industrial wide range of operational temperature

    •Stand-alone or Rack-mounted, simple installation.

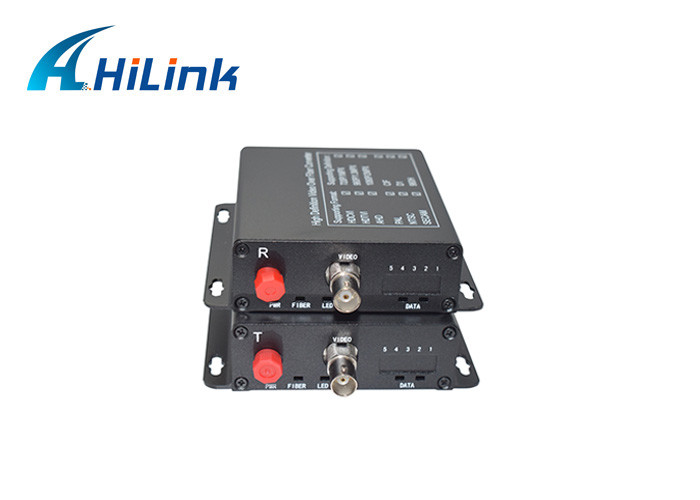

    products picture:

    HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm

    HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm



    AHD TO Fiber Converter System connection diagram



    HL- Definition Analog Video Optical Media Converter TVI/CVI/AHD 1310nm/1550nm









    Technical Specification





    Optics:



    Wavelength WDM:1310nm/1550nm
    Output Power -8~3dBm
    Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
    Rx sensitivity -26dBm
    Optical connector FC,ST,SC (optional)
    Distance 0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)





    Video:



    Number of Channels 1
    Input/output impedance 75 Ohm (unbalance)
    Standard video input/output voltage 1.0Vp-p
    Video Bandwidth 50MHz
    Sampling Bandwidth 8bit
    Sampling Frequency 108MHz
    Signal to noise ratio >67dB
    Rise and Fall time <0.8ns
    Optical Signal Intrinsic Jitter <0.2 UI
    Differential Gain < ±1.5%
    Differential Phase < ±1°
    Connector BNC
    Supporting video pixel

    1280(H)x720(V)@30Hz/1MPX

    1280(H)x720(V)@50Hz/1MPX

    1280(H)x960(V)@30Hz/1.3MPX

    1920(H)x1080(V)@30Hz/2MPX





    Data:



    Protocol Default :RS485 (RS232/RS422 Optional)
    Number of channels 1
    Connector 5pins Terminal Blocks
    Data Rate 0-200Kbps
    Directions Default :Simplex from Rx to Tx (BIDI duplex optional)







    Mechanical Structure & Environment



    Power DC5V 2A
    Power Consumption ≤6W
    Working Temperature -15ºC ~65ºC
    Storage Temperature -40ºC ~85ºC
    Relative Humidity 5%~95% ( no condensation)
    MTBF ≥ 100000Hours
