0.9mm 1m WDM Solution FWDM T1600-1670 R1290-1580nm SC APC Connector Long Lifespan

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-FWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week
  • Detail Information
  • Product Description

Detail Information

Wavelength: T1550 R1310/1490nm Product Name: HL-FWDM
Package: ABS Box Connector: SC/APC Both Sides
Length: 1 Meter Warranty: 3 Years,1 Year
High Light:

fiber optic wdm

,

wdm optical

Product Description

FWDM T1600-1670 R1290-1580nm ABS Box 1M SC APC 0.9mm 1m Free Shipping









Performance Specification



Parameter   FWDM 3/45
Pass Band Wavelength Range (nm) 1260 - 1360
Reflection Band Wavelength Range (nm) 1480-1620
Insertion Loss (dB) Reflect Channel ≤ 0.6
Pass Channel ≤ 0.8
Channel Ripple(dB) < 0.3
Isolation(dB) Reflect Channel > 15
Pass Channel > 30
Insertion Loss Temperature Sensitivity (dB/℃) < 0.005
Polarization Dependent Loss (dB) < 0.1
Polarization Mode Dispersion (ps) < 0.1
Directivity (dB) > 50
Return Loss (dB) > 50
Maximum Power Handling(mW) 500
Operating Temperature (℃) 0 ~ + 70
Storag e Temperature (℃) - 40 ~ + 85
Packag e Dimension (mm) L90xW20xH9.5(for 2.0 mm or 3.0mm Cable)



*Above insertion loss is not included the connectors and PC is added 0.2dBm, APC is added 0.3dBm .







Picture Show

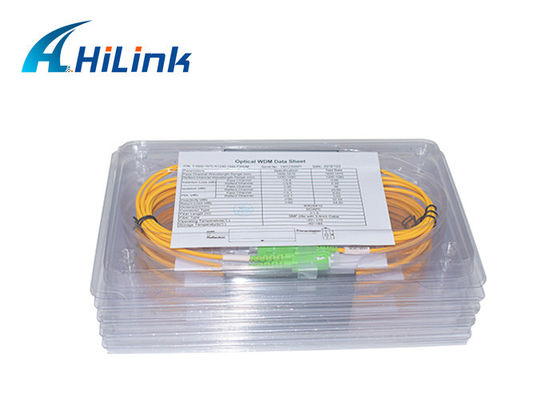

0.9mm 1m WDM Solution FWDM T1600-1670 R1290-1580nm SC APC Connector Long Lifespan 0



Packaging & Shipping


Packaging

  • We provide safe and reliable packaging: Static bag, Plastic bag, Retail box or by required
  • Delivery time:1-5 working days
  •

Shipment

  • International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 1-5 days.







FAQ



1. Q: Do you sell second-hand products?

A: No.All our products are brand new,we never use second-hand components.

2. Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.



3. Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.

4. Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.

5. Q: What devices can your products compatible with?
A: Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

6. Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
