1000Base-F SC 1310nm 20km Gigabit Ethernet Media Converter

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-MC-1000SFP
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T, Western Union,Paypal , AliExpress , Alipay ,etc.
Supply Ability: 3000/pieces/month
  • Detail Information
  • Product Description

Detail Information

Product Name: Single Fiber SC Media Converter Port Style: SFP Style & RJ45 Port
Data Rate: 10 / 100 / 1000BASE Fiber Type: SMF And MMF
Socket: SC Warranty: 3 Years
High Light:

20km Gigabit Ethernet Media Converter

,

1310nm Gigabit Ethernet Media Converter

,

1000Base-F Fiber Optical Media Converter

Product Description

10/100/1000Base-T to 1000Base-F Single Mode SC 1310nm 20km Gigabit Ethernet Media Converter, American Plug Standard

Product Description



Media Converter



Feature



n Built-in IP-based Web Interface.

n Supporting remote and local management.

n Supporting IEEEE 802.3X Frame Flow Control for Full-Duplex mode.

n Store and Forward mechanism.

n Manual IP address setting/DHCP client for IP address assignment.

n SNMP v1 / v2c monitor / private Enterprise MIB.

n Event trap and SNMP trap support.



n Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port.



n Supports Port Status / Ethernet Statistics on both TP and Fiber interface.



n Supports Maximum frame size to 16K bytes.



n Loop detection / Broadcast / Multicast / Unicast storm control.



n Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN.



n 802.1p Tag Priority / IP address priority / IP DSCP option in.



n Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies.



n TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test.



n 16 TCP / UDP Filter groups.



n Password setting, IP setting and devices description setting through Planet Smart discovery utility.



n Firmware upgrade via remote Web interface.



n LED indicators for easy network diagnosing.



n Reset Button at the front panel for the factory default reset.



n Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module





Specification

parameter
Specifications
Access mode
10/100/1000Mbps Gigabit Ethernet
Standard
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit thernet,IEEE802.1qVLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree
Wavelength
850nm/1310nm/1550nm
Transmission distance
multi-mode Dual-fiber: 220m (62.5/125um)/550m (50/125um)
single mode Dual-fiber: 20/40/60/80 Km
single mode Single fiber: 20/40/60/80 Km
Category-5 twisted pairs: 100m
Port
One RJ45 port:
Connecting with STP/UTP category-5 twisted pairs
One optical port:
Multi-mode Dual-fiber: SC (50, 62.5/125um)
Single mode Dual-fiber: SC/FC (9/125um)
Single mode Single fiber: SC/FC (9/125um)
Conversion means
Media conversion
Delay
<10us
BER
<10-9
MTBF
100,000 hours
LED indicator
PWR ,100M;FXL,1000M,TX,RX;
Power supply
AC220 0.5A/DC-48 (built-in)
Power consumption
5W
Operating temperature
-10~55°C
Operating humidity
5%~90%
Storage temperature
-40~70°C
Maintaining humidity
5% ~ 90% non-condensing
Dimensions
95mm*70mm*25mm(external power supply)

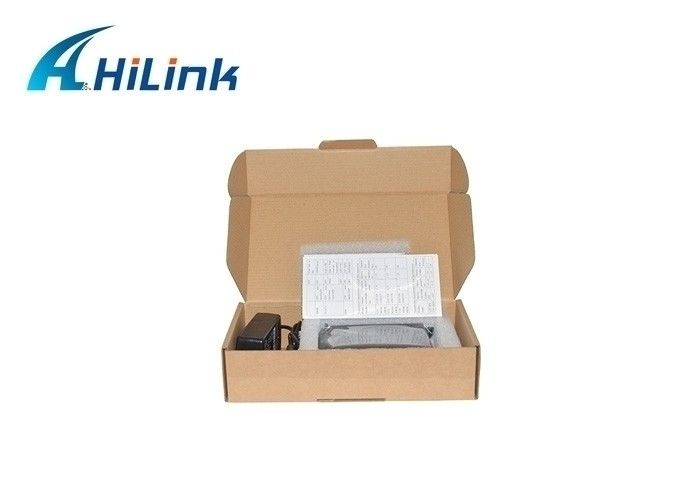

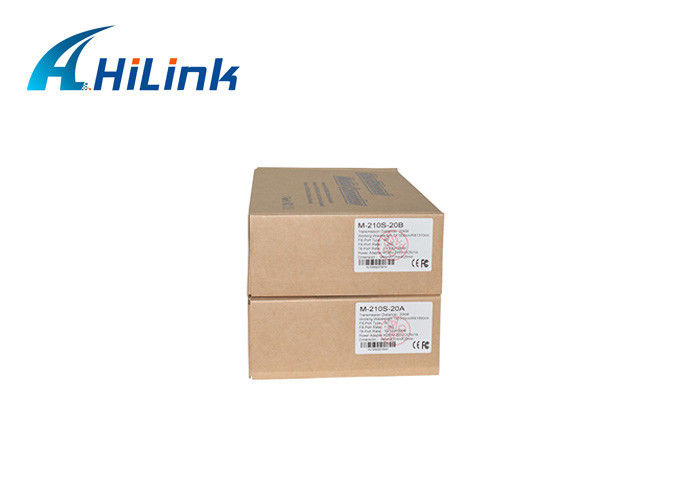

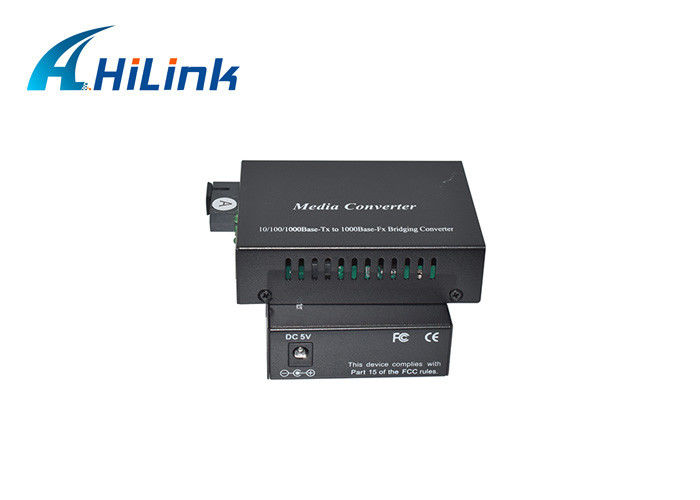

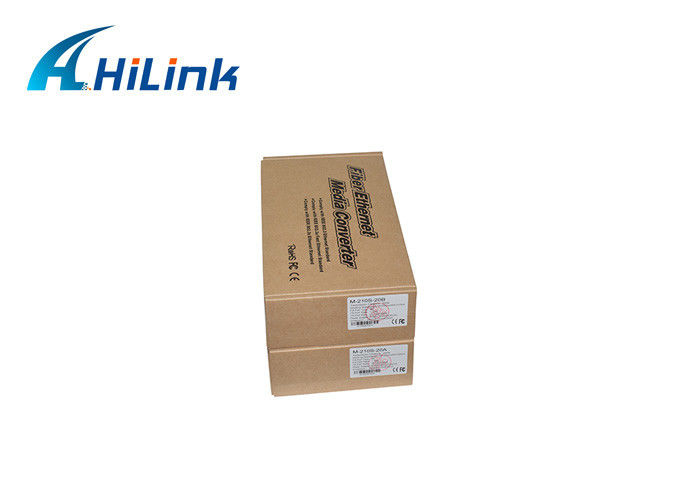

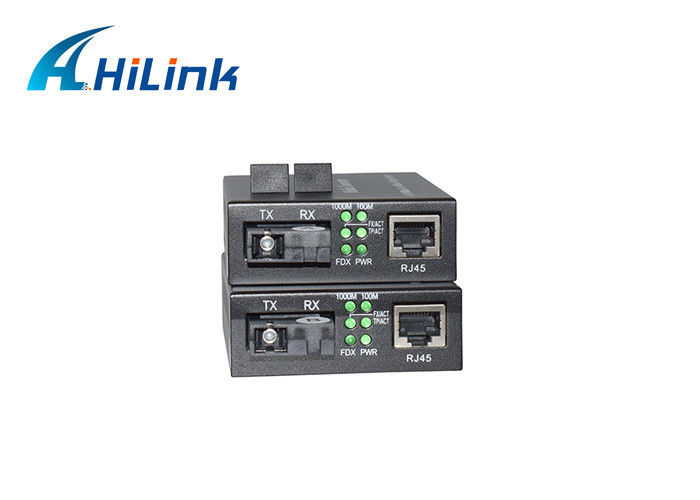

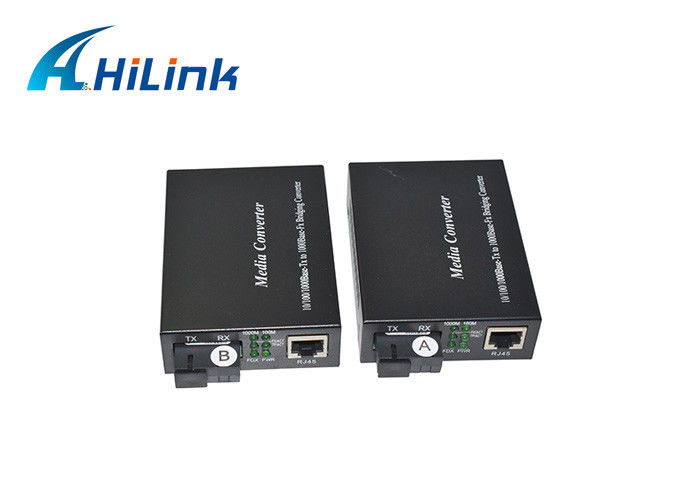

Picture show

Media converter






1000Base-F SC 1310nm 20km Gigabit Ethernet Media Converter 11000Base-F SC 1310nm 20km Gigabit Ethernet Media Converter 21000Base-F SC 1310nm 20km Gigabit Ethernet Media Converter 31000Base-F SC 1310nm 20km Gigabit Ethernet Media Converter 4
