RJ45 Copper To 10GBASE-X SFP+ Fiber Media Converter FCC For Ethernet

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-MC
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Delivery Time: 2-7working days
Payment Terms: L/C, T/T, Western Union, Paypal , AliExpress
Supply Ability: 3000pieces/Month
  • Detail Information
  • Product Description

Detail Information

Product Name: 10G Media Converter With Sfp Port Port Style: 1 * SFP& 1 * Rj45 Port
Dara Rate: SFP Port : 10G; Rj45 Port: Adapter: European Or American Standard
Power Type: External Power Cover: Black Metal
High Light:

10GBASE-X Fiber Media Converter

,

RJ45 Copper Fiber Media Converter

,

FCC Fiber Ethernet Media Converter

Product Description

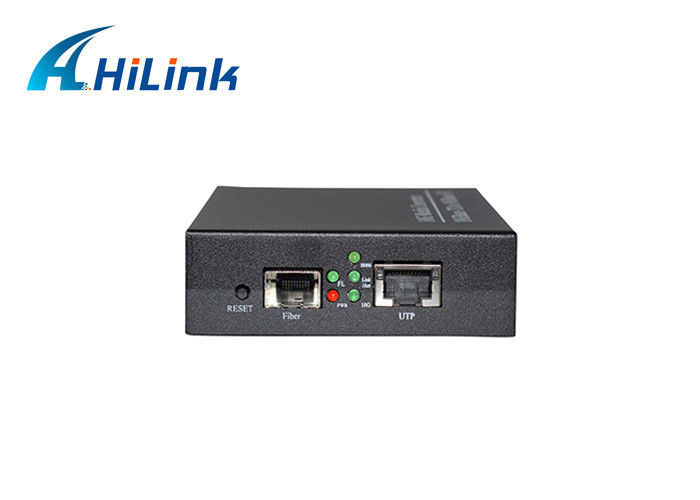

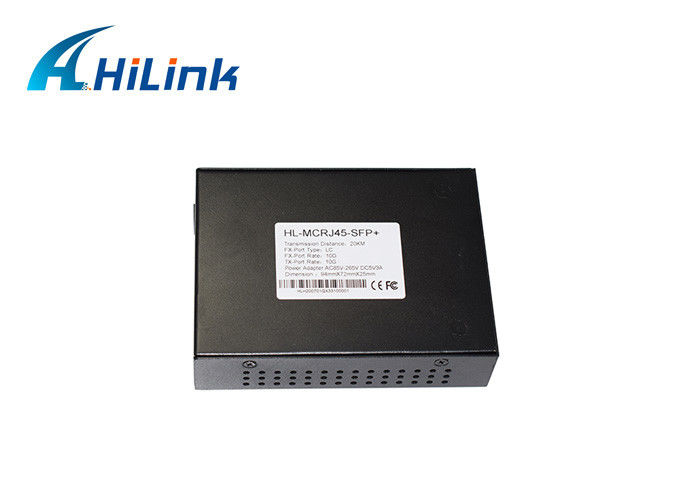

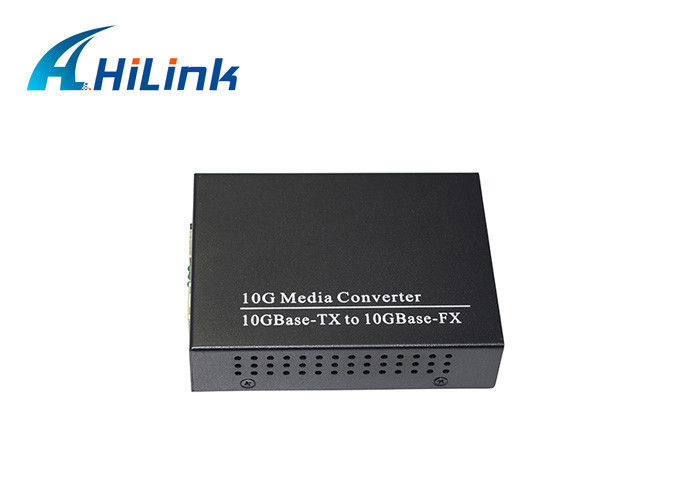

1Port RJ45 Copper to 10GBASE-X SFP+ Port Media Converter for Ethernet





DESCRIPTION :

HL-MC-10G-SFP+ Media Converter is equipped with one 10G/5G/2.5G/1G/100BASE-T auto-negotiation port and one 10GBASE-X SFP+ slot. It supports 10Gigabit Ethernet media conversion from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10GBASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels. The deployment distance can be extended from 300 meters (multi-mode) to up to 60 kilometers (single-mode).They are designed for use in network environments where the ultra-high bandwidth provided by 10Gigabit Ethernet is required, for example, data center cloud computing, enterprise backbones, campus networks, and carrier infrastructure.





FEATURERS :



  • One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
  • One 10GBASE-X SFP+ slot interface
  • IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
  • Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 16K jumbo frame size support
  • Automatic address learning and address aging
  • External 12V DC, 1A power supply
  • Desktop design
  • Supports 6000 VDC Ethernet ESD protection
  • 100 meters over Cat 6A / Cat7 at 10Gbps
  • 0 to 50 degrees C operating temperature
  • Co-works with 19” Media Converter Chassis
  • Plug and Play installation









TECHNICAN SUPPORT :



We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.



Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
