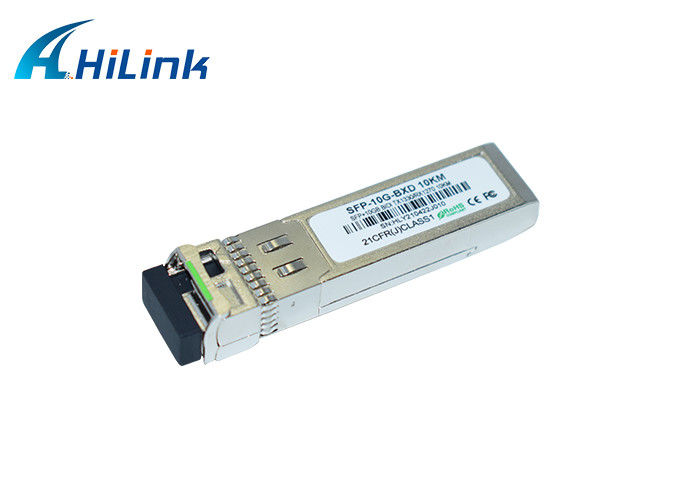

10km SFP+ LC Optical Transceiver Module 10G Bidi 1270/1330nm

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-10BS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box
Delivery Time: 1-4 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pairs/week
  • Detail Information
  • Product Description

Detail Information

Data Transfer Rate: 10G Wavelength: 1270nm / 1330nm
Reach Distance: 10km Connector: LC
DDM/DOM: Yes Operating Temperature: 0-70℃
CE RoHS: Compliant Warranty: 3 Years
High Light:

10km Optical Transceiver Module

,

SFP+ LC Optical Transceiver Module

,

10G Bidi Fiber Transceiver Module

Product Description

10G Bidi 1270/1330nm 10km SFP+ LC Module




Single Core WDM Module DDM/DOM 10G 1270nm/1330nm 10km BiDi SFP+ LC

10G BiDi SFP+ is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement(SFF8431). This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps.



Features:

1

SFP MSA package with single LC connector

Typical bidi 1270/1330nm and 1330nm/1270nm for commission

APD receiver for high sensitivity

Very low EMI and excellent ESD protection

Digital Diagnostic Monitor Interface

Hot pluggable

Support 9.95Gb/s to 11.1Gb/s serial optical interface

Up to 80km distance

Compliant with SFP+ MSA

High transmission margin

+3.3V single power supply

Below <1.5W power consumption


Applications:
Fiber Channel Links
Gigabit Ethernet
Other Optical Links

Specification:



P/N SFP-10G-BX10-D
Datarate 10Gb/s
Wavelength 1330nm/1270nm
Distance 10km
Source DFB
Receiver PIN
DDM/DOM Yes
Media Type SMF
Operating Temperature 0°C to +75°C
Available Compatible Brand Cisco,Juniper,Huawei etc...




10G SFP+ BiDi SFP+ BiDi 10km SFP+ BiDi 10km 1270nm/1330nm LC
SFP+ BiDi 20km SFP+ BiDi 20km 1270nm/1330nm LC
SFP+ BiDi 40km SFP+ BiDi 20km 1270nm/1330nm LC
SFP+ BiDi 60km SFP+ BiDi 60km 1270nm/1330nm LC
SFP+ BiDi 80km SFP+ BiDi 80km 1490nm/1550nm LC
