Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QSFP-40G |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 100/PCS/MONTH |
|
Detail Information |
|||
| Distance: | 2km | Wavelength: | 1310nm |
|---|---|---|---|
| Data Rate: | 40Gb/s | Fiber Connector: | LC/UPC |
| Warranty: | 3 Years | Fiber Type: | SMF/MMF |
| High Light: | MMF SMF QSFP Transceiver Module,SR4 1310nm QSFP Transceiver Module,2km LC Ethernet Optical Transceiver |
||
Product Description
MMF/SMF 1310nm 2km Hilink 40G SR4 QSFP Optical Transceiver Module
PRODUCT FEATURES
Four-channel full-duplex transceiver modules
Transmission data rate up to 25.78Gbit/s per channel
Up to 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF
Low power consumption <2.5W
Operating case temperature 0℃ to 70℃
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP28 form factor
MPO connector receptacle
Built-in digital diagnostic function
APPLICATIONS
IEEE 802.3bm 100GBASE SR4
Proprietary High Speed Interconnections
Data center
PRODUCT DESCRIPTIONS
The HL-MA0S85-C00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28
Transceiver for IEEE 802.3bm,100GBASE SR4 Applications,or 100G Gigabit Ethernet and Infiniband and FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber. These modules are designed to operate over multi mode fiber systems using850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP28 module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
QSFP SERIES
| Part Number | Product Description | |
| HL-QSFP-40G-SR4 | QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-SR4 | QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M | |
| HL-QSFP28-100G-LR4 | QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM | |
| HL-QSFP28-100G-ER4 | QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM | |
| HL-QSFP28-100G-ZR4 | QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM | |

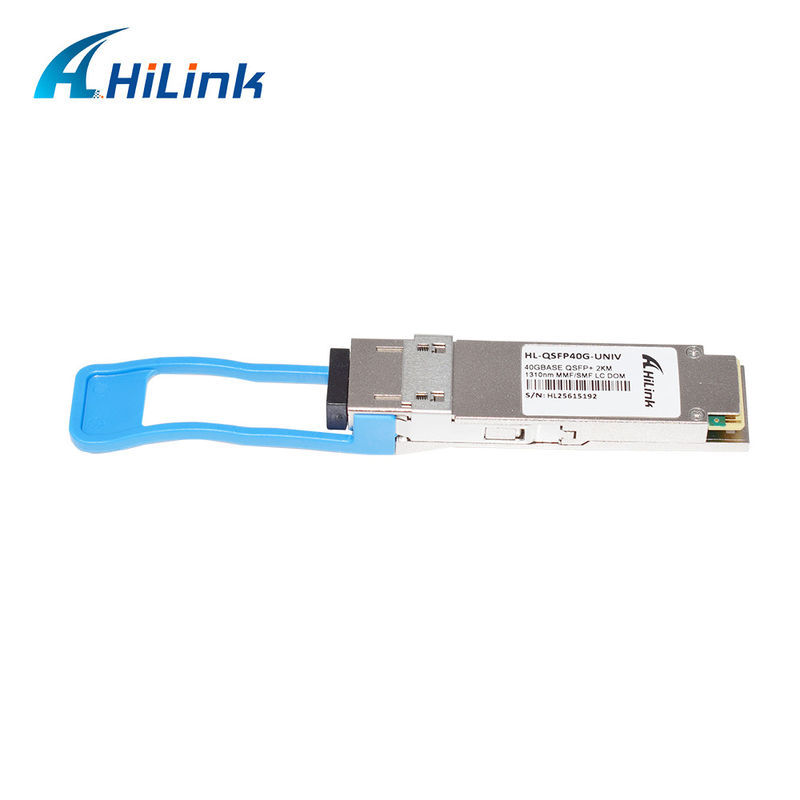

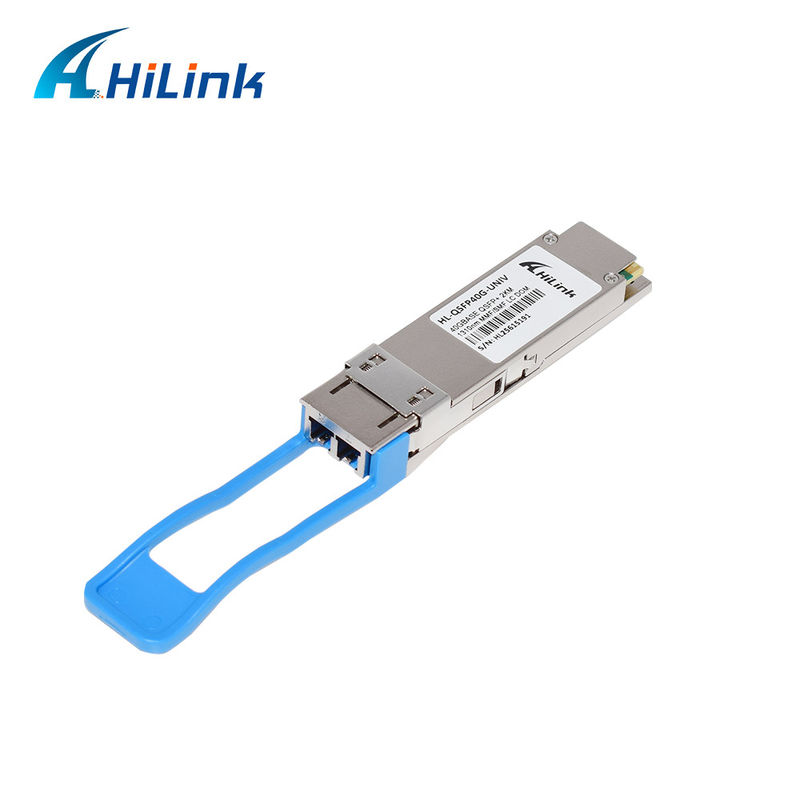

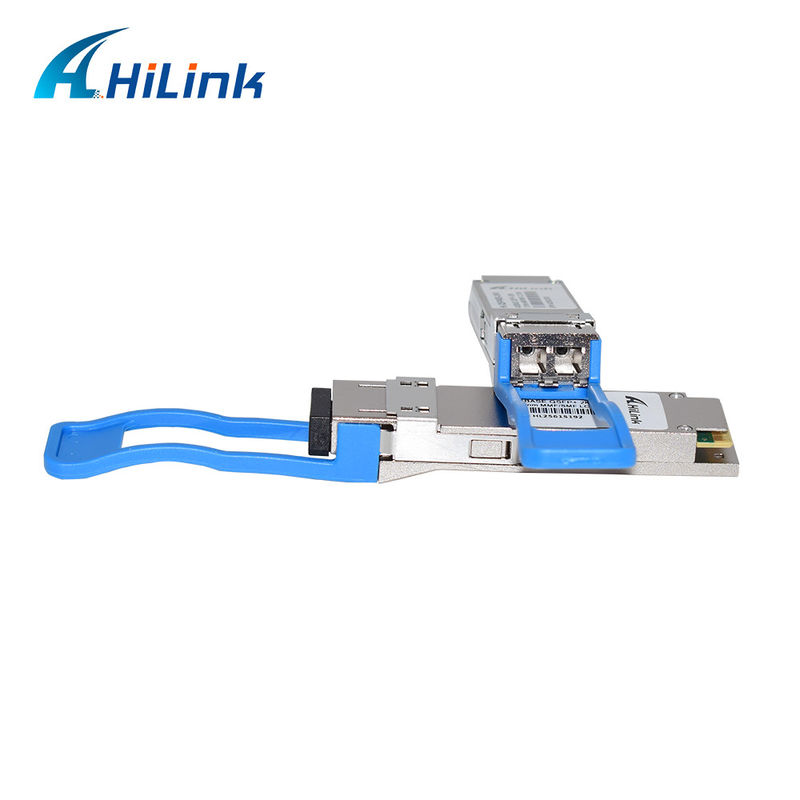

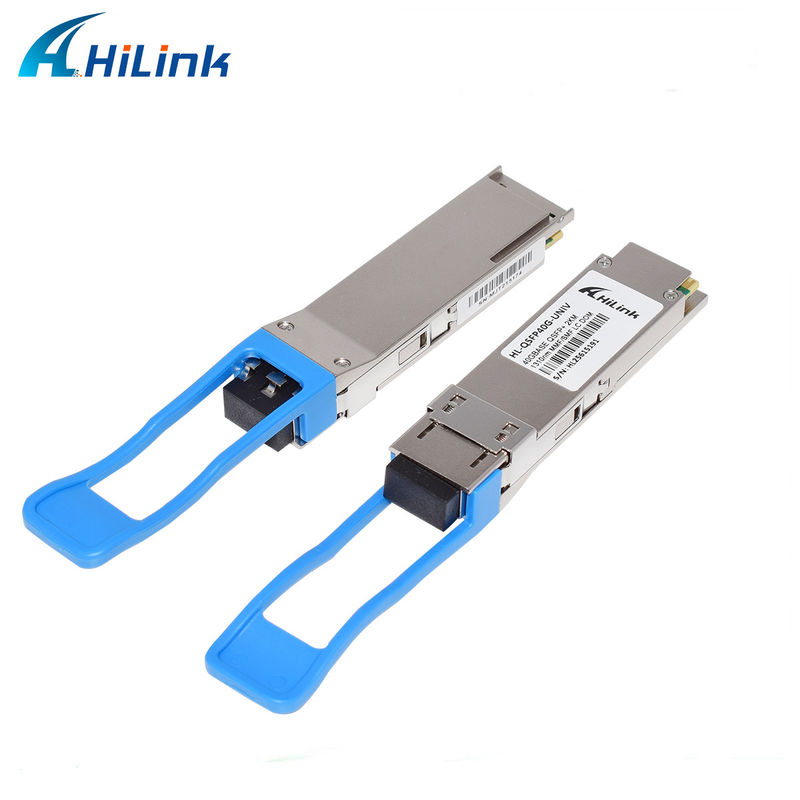

PRODUCT PICTURE SHOW
Our Service
Contact our sales for more details to confirm your order.
Short lead time after confirmation.
We deliver goods by international Express.
Quick response for customers' feedback and other questions.
Shipment & Payment
International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
Payment: T/T, Western Union, Paypal and so on.
Guarantee
Brand new.
OEM/ODM is available.
100% through quality test and aging test.
3 years warranty(From the date of shipment).
Technician support
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
