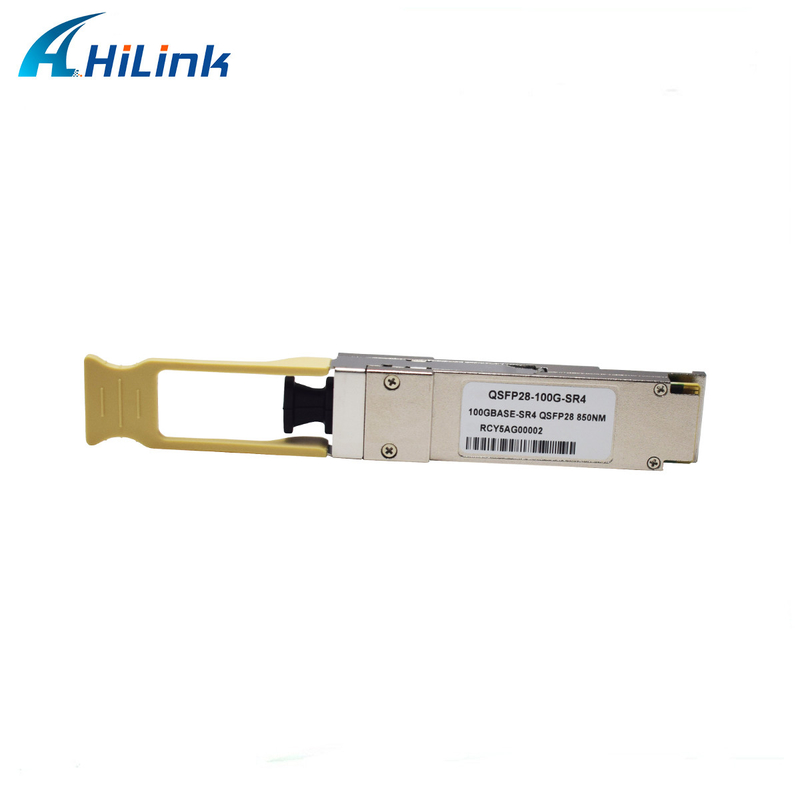

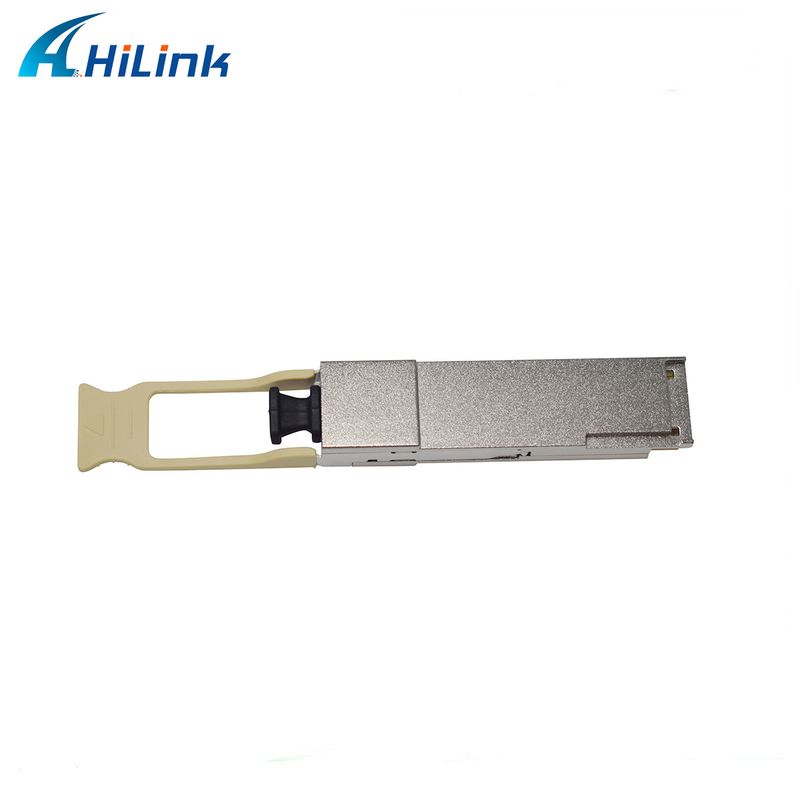

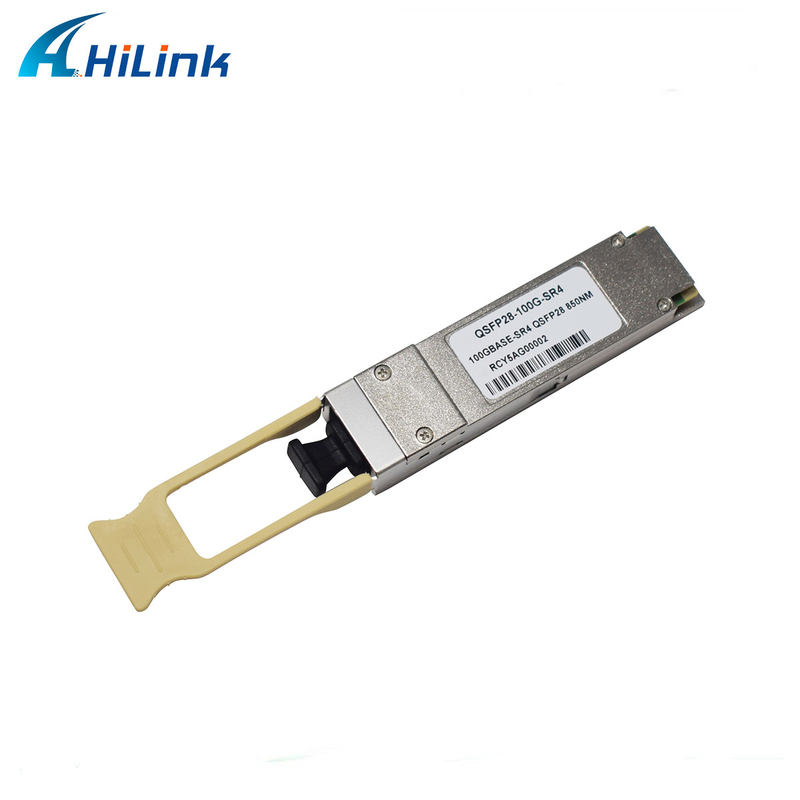

SR4 MMF QSFP+ Transceiver 850nm For DOM MTP MPO MMF Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QS100G-SR
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
  • Detail Information
  • Product Description

Detail Information

Data Rate: 100G BASE Wavelength: 850nm
Distance: 100M Operating Temperature: 0~+70℃
Fiber Connector: MPO/MTP Warranty: 3 Years
High Light:

SR4 MMF QSFP+ Transceiver

,

DOM MTP QSFP+ Transceiver

,

MPO MMF Fiber Transceiver Module

Product Description

100G 850nm 100m QSFP28 SR4 QSFP28-100G-SR4-MMF 850nm For DOM MTP/MPO MMF Module



100G QSFP28 SR4



        The HL-MA0S85-C00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm,100GBASE SR4 Applications,or 100G Gigabit Ethernet and Infiniband and FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber. These modules are designed to operate over multi mode fiber systems using850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP28 module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.





Features:
Four-channel full-duplex transceiver modules
Transmission data rate up to 25.78Gbit/s per channel
Up to 70m on OM3 Multimode Fiber(MMF) and 100m on OM4 MMF
Low power consumption <2.5W
Operating case temperature 0 to 70℃
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP28 form factor
MPO connector receptacle
Built-in digital diagnostic function


Applications:

100GBASE-LR4

Infiniband QDR and DDR interconnects

100G Datacom connections



Hilink QSFP28 100G Series


Part Number Data Rate Distance Wavelength Output Power Sensitivity Remark
HQ28-SR-M85-X1D 100Gbps MM 100m
(OM4)
850nm -8.4 ~ +2.4dBm -10.3dBm QSFP28-100G-SR4
HQ28-LR-L13-10D 100Gbps SM 10km 1310nm -4.3 ~ +4.5dBm -10.6dBm QSFP28-100G-LR4
HQ28-LR-L13-10C1 100Gbps SM 10km 1310nm -4.3 ~ +4.5dBm -10.6dBm QSFP28 100G-LR4-Ethernet
HQ28-ER-L13-40D 100Gbps SM 40km 1310nm -2.9 ~ +4.5dBm -16.9dBm QSFP28 100G-ER4
HQ28-K7-L13-xxx 100Gbps SM 2km 1310nm -6.5 ~ +2.5dBm -11.5dBm QSFP28 100G-CWDM4


Parameter

SR4 MMF QSFP+ Transceiver 850nm For DOM MTP MPO MMF Module 0



The 25g~100G Series

25G SFP28 SR4 25Gbps 850nm SFP28 transceiver 100M
QSFP-40G-SR4 QSFP-SR4, MMF, 850nm, 150M, MPO
QSFP-40G-CSR4 QSFP+, MMF, 850nm, 300M (OM3) - MPO
QSFP-40G-LR4 QSFP-LR4, SMF, 1270nm~1330nm,15KM LC
QSFP-40G-PSM-IR4 QSFP+-IR4,SMF ,1310NM 2KM MPO
40G QSFP+ PSM 10KM QSFP+-LR4,SMF ,1310NM 10KM MPO
100G QSFP28 SR4 100GBASE-SR4 QSFP28
QSFP28 CWDM4 2KM 100G QSFP28 CWDM4 2KM 1271~1331
QSFP28 CWDM4 500M 100G QSFP28 CWDM4 500 1271~1331
QSFP28 PSM4 1310nm 2km QSFP28 PSM4 1310nm 2km MPO SMF
25G SFP28 AOC 1M 25Gbps 850nm Multimode SFP28 AOC 1~100M
25G SFP28 DAC SFF-8402 25G SFP28 to SFP28 DAC 1m 3m 5meter
40G QSFP+ AOC 1M QSFP-AOC Active 40Gbase 1~100meter
40G QSFP+ DAC 1M QSFP SFF8436 Passive Cable 1~5M
100G QSFP28 TO QSFP28 DAC 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive
100G QSFP28-SR4 AOC 1M 100GBASE-SR4 QSFP28 AOC Fiber

SR4 MMF QSFP+ Transceiver 850nm For DOM MTP MPO MMF Module 1SR4 MMF QSFP+ Transceiver 850nm For DOM MTP MPO MMF Module 2
