Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QS100G-SR |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 100/PCS/MONTH |
|
Detail Information |
|||
| Data Rate: | 100Gb/s | Distance: | 100M |
|---|---|---|---|
| Wavelength: | 850nm | Fiber Connector: | LC |
| Warranty: | 3 Years | CE ROHS: | Support |
| High Light: | LC Connector Optical Transceiver Module,QSFP28 Optical Transceiver Module,850nm Dual Fiber Transceiver Module |
||
Product Description
100G QSFP28 850nm 100G Dual Fiber QSFP28 Optical Transceiver Module 850nm 100m
100G QSFP28 SR4
The HL-MA0S85-C00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm,100GBASE SR4 Applications,or 100G Gigabit Ethernet and Infiniband and FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 25.78Gbps operation for an aggregate data rate of 103.12Gbps 70m using OM3 fiber. These modules are designed to operate over multi mode fiber systems using850nm VCSEL laser array.
100GBASE-LR4
Infiniband QDR and DDR interconnects
Hilink QSFP28 100G Series
| Part Number | Data Rate | Distance | Wavelength | Output Power | Sensitivity | Remark |
| HQ28-SR-M85-X1D | 100Gbps | MM 100m (OM4) |
850nm | -8.4 ~ +2.4dBm | -10.3dBm | QSFP28-100G-SR4 |
| HQ28-LR-L13-10D | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28-100G-LR4 |
| HQ28-LR-L13-10C1 | 100Gbps | SM 10km | 1310nm | -4.3 ~ +4.5dBm | -10.6dBm | QSFP28 100G-LR4-Ethernet |
| HQ28-ER-L13-40D | 100Gbps | SM 40km | 1310nm | -2.9 ~ +4.5dBm | -16.9dBm | QSFP28 100G-ER4 |
| HQ28-K7-L13-xxx | 100Gbps | SM 2km | 1310nm | -6.5 ~ +2.5dBm | -11.5dBm | QSFP28 100G-CWDM4 |

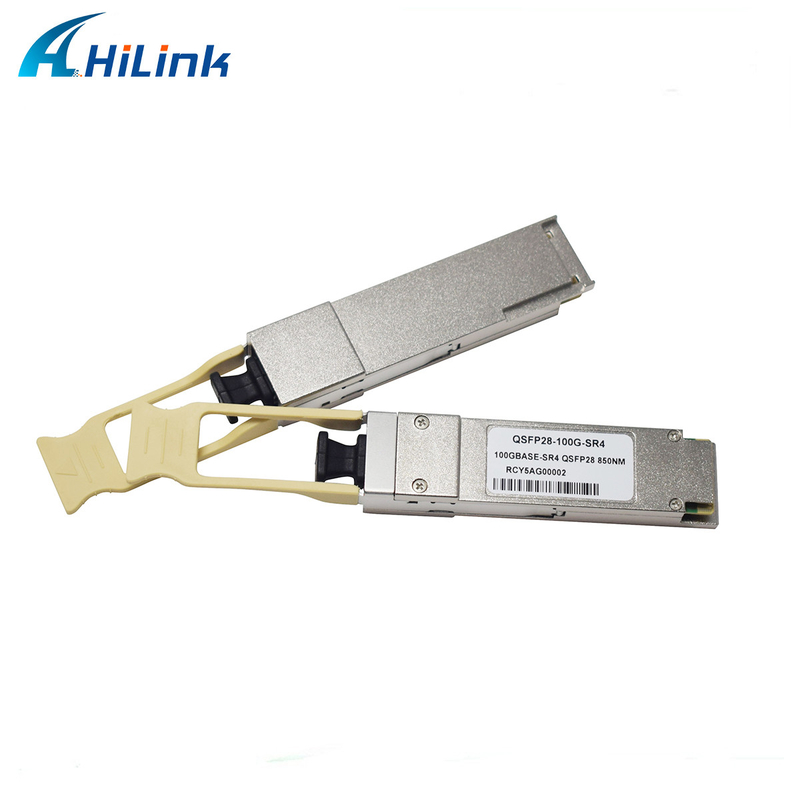

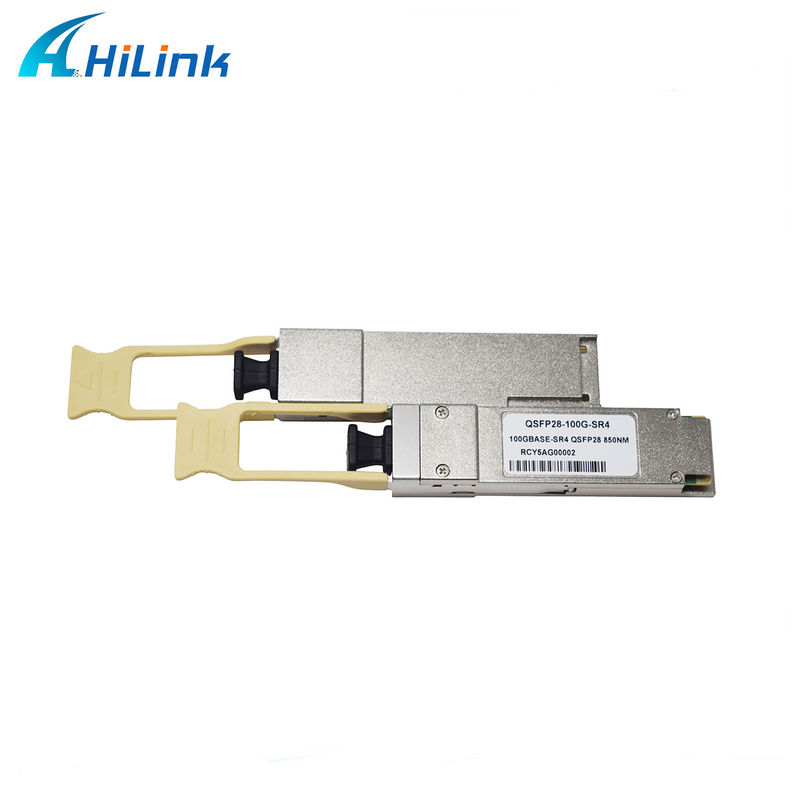

Product Show:
