APC UPC 100G DWDM MUX WDM Solution 16CH Wavelength Division Multiplexing

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-DWDM MUX
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: box & carton or customized package for 40ch AAWG DWDM Module .
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500/pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: DWDM Mux/Demux Module Connector: SC FC LC APC UPC PC
Center Wavelength(nm): ITU 100GHz Grid Wavelength: C Band
Channel: 16 Channels Package: ABS Case / 19' Rack
High Light:

DWDM MUX WDM Solution

,

APC UPC WDM Solution

,

16CH CWDM Transceiver Module

Product Description

100G DWDM MUX SFP DWDM MUX 4CH/8CH/16CH Dense Wavelength Division Multiplexing





Features:

Low Insertion Loss

High Isolation

Low PDL

Compact Design

Good channel-to-channel uniformity

From -40°C to 85°C

Both C- and L-band devices are available





 Applications:

Dense WDM System

PON Networks



Specifications:

Parameter Unit Value
Central Wavelength nm ITU-T Grid
Channel Spacing nm 0.8 (100GHz) 1.6 (200GHz)
Number of Channels ---- 8 16 8
Channel Passband Min nm 0.11 0.11 0.25
Insertion Loss Ty dB 3 4 3
Max dB 2.5 3.5 3.5
Ripple Max dB 0.5 0.5 0.5
Channel Uniformity Max dB 1 1.5 1
Isolation Adjacent Channels Min dB 25
Non-adjacent Channels Min dB 40
Directivity Min dB 50
Optical Return Loss Min dB 45
PDL Max dB 0.15
Thermal Stability Max dB/°C 0.007
Thermal Wavelength DriftMax Max nm/°C 0.001 0.002
Operating Temperature °C 0 to 70
Storage Temperature °C - 40 to 85
Package Dimension mm 140 100 13
Maximum Power Handling mW

300



Packaging & Shipping:
Enclosure type: Plastic ABS or Rack Mounted



Shipment

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.

Our Services



OEM and ODM

OEM/ODM order is available.



Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.



Product picture show

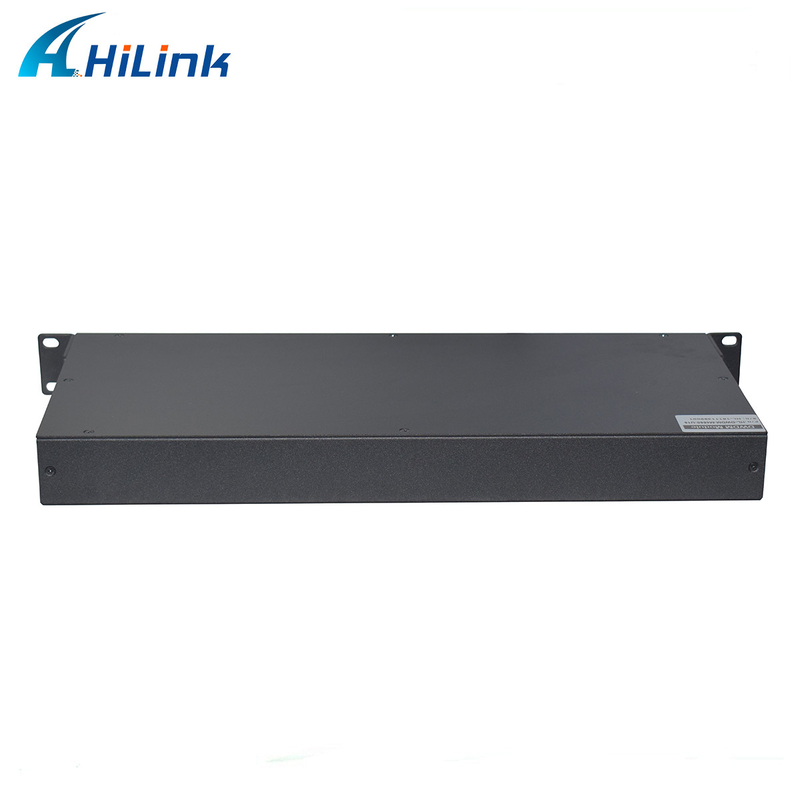

APC UPC 100G DWDM MUX WDM Solution 16CH Wavelength Division Multiplexing 0

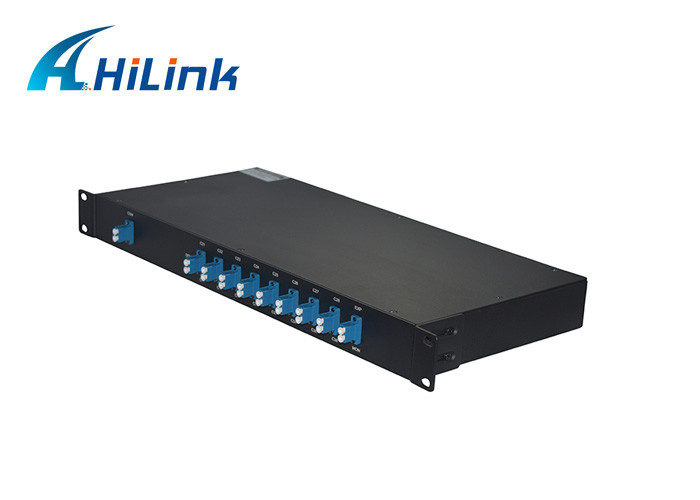

APC UPC 100G DWDM MUX WDM Solution 16CH Wavelength Division Multiplexing 1

FAQ:



Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.



Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.





As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.





Enclosure type: Plastic ABS Box or Rack Mounted
