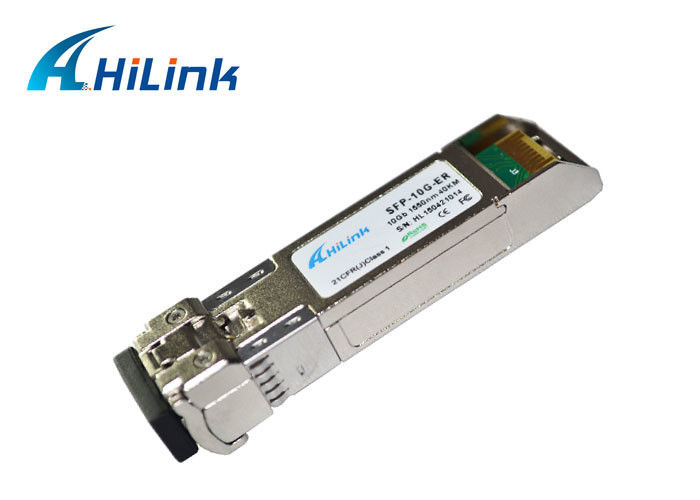

ER 1550nm 40km Hot Pluggable SFP+ Transceiver Module , 10 Gigabit SFP Fiber Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: SFP-10G-ER
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: 1550nm Data: 10Gbs
Distance: 40KM Package: SFP
High Light:

sfp+ optical transceive

,

10g sfp+ module

Product Description

ER 1550nm 40km Hot Pluggable SFP+ Transceiver Module , 10 Gigabit SFP Fiber Module


Specifications



1. Model Number: RT-P10E15- C00

2. Application: 10G Ethernet

3. Connector: LC

4. Product: 10G SFP+ER

5. Datarate: 10GbPs

6. Distance: 40KM

7. Wavelenth: 1550nm

8. Media: SMF

9. DDM/DOM: YES

10. Transceiver Type: SFP+

11. Operating Temperature: 0 to + 70 °C





Features



1. Hot-pluggable SFP+ footprint

2. Supports 9.5 to 10.3Gb/s bit rates

3. Single 3.3V power supply

4. Maximum link length of 40km

5. 1550nm EML transmitter, PIN photo-detector

6. Duplex LC connector

7. Power dissipation < 1.5W

8. Built-in digital diagnostic functions

9. Case temperature range :0°C to 70°C





Application



1. 10GBASE-ER/EW 10G Ethernet



STANDARD



1. Compliant with SFF-8472 SFP+ MSA.

2. Compliant to SFP+ SFF-8431 and SFF-8432.

3. Compliant to 802.3ae 10GBASE-ER.

4. RoHS Compliant.



Product Details



Item No. SFP-10G-ER Vendor Name Hilink
Form Type SFP+ Max Data Rate 10Gbps
Wavelength 1550nm Max Cable Distance 40KM
Interface LC duplex Optical Components EML1550nm
Cable Type SMF DOM Support Yes
TX Power -4.7~4dBm Receiver Sensitivity < -15.8dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000
