ABS Plastic Packaged 1X8 PLC Optical Splitter With FC / ST / LC Connector

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-PLC-1*8
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: box & carton or customized package
Delivery Time: 2-6 working days
Payment Terms: Western Union, MoneyGram,Paypal
Supply Ability: 5000pcs/week
  • Detail Information
  • Product Description

Detail Information

Product Name: 1*8 PLC Splitter Connector: SC FC LC ST PC
Operating Wavelength: 1270nm~1610nm Package: ABS Box
Fibre Length: 1m Operating Temperature: -40°C - 85°C
High Light:

fiber optic splitter

,

fiber PLC splitter

Product Description

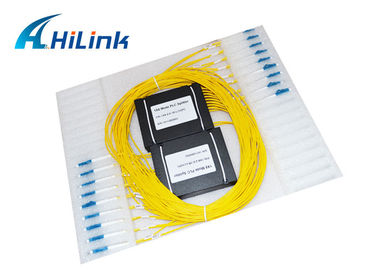

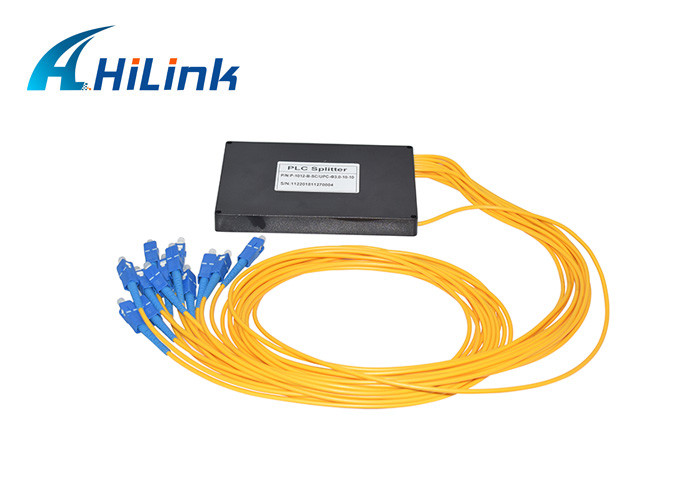

ABS Plastic Packaged 1X8 PLC Optical Splitter With FC / ST / LC Connector





PLC planar waveguide type optical fiber splitter (PLC Splitter) is a kind of integrated optical power distribution device based on quartz substrate, has the advantages of small volume, wide wavelength range, high reliability, light uniformity is good, especially suitable for passive optical networks (EPON, BPON, GPON) connected in the end and the Bureau the terminal equipment and realize shunt optical signal. Currently there are 1 x N and 2 x N of the two types. 1 x N and 2 x N splitter optical signal evenly from single or double imports were input multiple export, or will reverse multiple optical signals into single or double root fiber.
Using semiconductor process PLC planar waveguide type optical fiber splitter (lithography and etching, developing production technology). On the surface of the optical waveguide array in the chip, shunt function integrated in the chip, which is the realization of 1 and 1 in a shunt chip; then, and packaged in a multi channel fiber array chip are respectively coupled input and output.


Feature


  • Low Insertion loss
  • Low PDL
  • Low excess loss
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength: 1260-1650nm
  • High Reliability and Stability
  • Standard type, compact size


Application


  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution



Specification





1 x N
Parameter Unit Specification
1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength NM 1260-1650
Insertion Loss Standard dB 3.6 7.0 10.2 13.3 16.5 20.0
MAX(P/S) 3.8/4.0 7.2/7.4

10.5/

10.7

13.5/13.9 16.5/17.2 20.0/21.5
PDL dB ≤0.2 ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3
Loss Uniformity dB ≤0.6 ≤0.8 ≤1.0 ≤1.4 ≤1.6 ≤1.9
Return Loss @1550nm dB ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Wavelength Dependent Loss dB ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5 ≤0.5
Fiber Length m 1.2(±0.1)or customer specified
Fiber Type   Corning SMF-28e or customer specified
Temperature Stability(-40 to +85℃) dB ≤0.5
Operation Temperature -40 to +85
Max Optical input power MW 300



2xN

Parameters 2×2 2×4 2×8 2×16 2×32
Operating Wavelength (nm) 1260~1650
Fiber Type SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade) 4.2 7.6 11.0 14.5 17.5
Loss Uniformity (dB) 0.8 1.5 1.5 2.0 2.5
Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 °C)(dB) 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Module Dimension (mm) (L×W×H) 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18


Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
