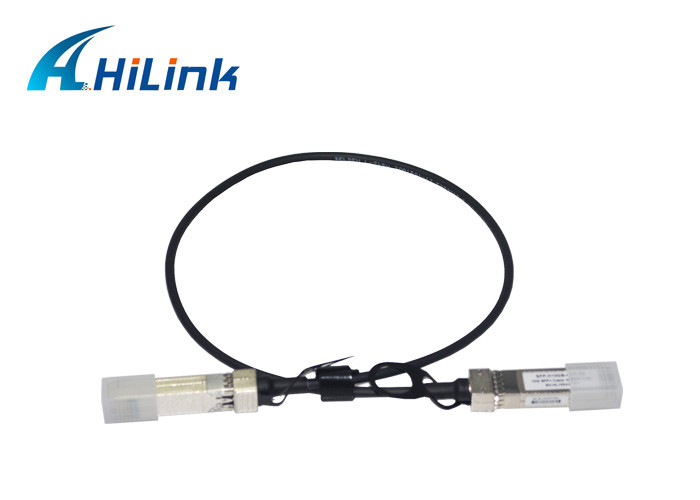

Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification

Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification

    • Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification
    • Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification
    • Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification
  • Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE,RoHS,FCC
    Model Number: HL-SFP-H10GB-CU

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Static bag, Plastic bag, Retail box or by required
    Delivery Time: 3-7 working days
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 5000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: 10G SFP+ Copper Cable Data Transfer Rate: 10G
    Length: 0.5m,1m,2m,3m,4m,5m Compatible: Cisco,Huawei,Finisar,Dlink Etc
    Connector: SFP+/SFP+ Operating Temperature: 0°C To +70°C

    Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification





    Direct Attach Cable(DAC) Connectors meet the harshest external operating conditions including temperature, humidity and EMI interference. Final test and quality systems assure high quality cable assemblies conforming to the high-speed electrical performance requirements in industry specifications.
    Standard DAC Copper assemblies are offered in different wire gauges (AWG) depending on length. DAC cable assemblies are hot swappable and the programmed EEPROM signature enables the host to differentiate between a copper cable assembly and a fiber optic module.
    Low power consumption assists in making the passive copper cable assembly an economic solution for within rack, or rack-to-rack applications.



    Features



    • Support for multi-gigabit data rates up to 10.5Gbps
    • Data rates backward compatible to 1Gbps
    • Hot-pluggable SFP 20PIN footprint
    • I/O Connector designed for high speed
    • Differential signal applications
    • Improved Pluggable Form Factor(IPF)
    • Compliant for enhanced EMI/EMC performance
    • Compatible to SFP+ MSA
    • Temperature Range: 0~ 70 °C
    • RoHS Compatible



    Specification

    Cisco Genuine SFP-H10GB-CU*M Vendor Name Hilink
    Connector Type SFP+ to SFP+ Max Data Rate 10Gbps
    Cable Type Passive Copper Cable Wire AWG AWG30/AWG24
    Cable Length 0.5m-5m Jacket Material PVC(OFNR)
    Temperature 0 to 70°C  Compatibility Cisco/Huawei/Mikrotik etc


    Applications



    ●  10Gigabit Ethernet
    ●  Data center cabling infrastructure
    ●  Storage Area Networks( SAN)
    ●  Network Attached Storage
    ●  Storage Servers
    ●  1G/2G/4G/8G Fiber Channel





    10G SFP+ Copper Cables



    Part Number Product Description
    HL-SFP-10G-CU1M SFP+ Direct Attach Passive Copper Cable 1 Meter
    HL-SFP-10G-CU3M SFP+ Direct Attach Passive Copper Cable 3 Meter
    HL-SFP-10G-CU5M SFP+ Direct Attach Passive Copper Cable 5 Meter
    HL-SFP-10G-CU7M SFP+ Direct Attach Active Copper Cable 7 Meter
    HL-SFP-10G-CU10M SFP+ Direct Attach Active Copper Cable 10 Meter





    Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification



    Production Line

    Data Center Passive Direct Attach Copper Cable AWG24 0.5M 1M 3M 5M CE RoHS Certification
