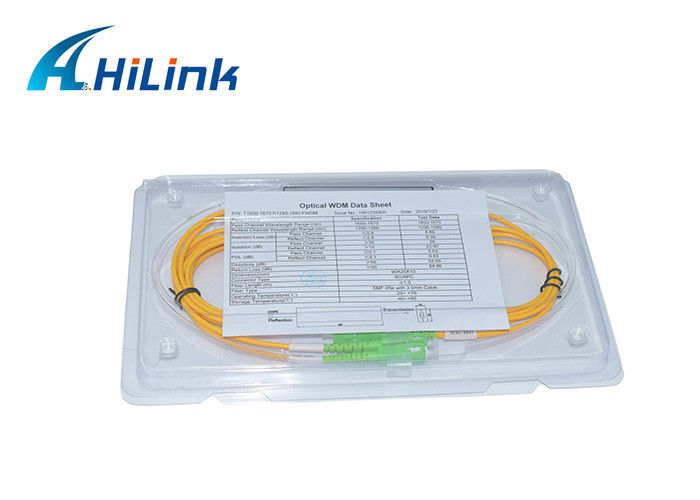

High Stability FWDM Module Wide Wavelength Range CE ROHS Certification

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-FWDM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: box & carton or customized package
Delivery Time: 1-6working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: FWDM Module Operating Wavelength: 1310nm,1490nm,1550nm
Port: 3 Ports Connector: LC/SC/FC/ST
Endface: APC/UPC RoHS: Compliant
High Light:

fiber optic wdm

,

optical wdm

Product Description

High Stability FWDM Module Wide Wavelength Range CE ROHS Certification



Features

Wide Wavelength Range

Low Insertion Loss

WDM system

High Channel Isolation

High stability and reliability



Applications

System Monitoring

WDM system

Transmitters and Fiber

Fiber optical amplifier

Fiberoptic lnstruments



FWDM Parameter



Parameter   FWDM 4/35 FWDM 5/35 FWDM 35/5
Pass Band Wavelength Range (nm) 1480~1500 1540~1560 1260~1360 & 1480~1500
Reflection Band1 Wavelength Range (nm) 1260 ~ 1360 1260 ~ 1360 1540~1560
Reflection Band1 Wavelength Range (nm) 1540~1560 1480~1500
Insertion Loss (dB) Reflect Channel ≤0.6
Pass Channel ≤0.8
Pass Band Rippler(dB) <0.3
Isolation (dB) Reflect Channel > 15
Pass Channel >30
Insertion Loss Temperature Sensitivity (dB/°C) <0.005
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion (ps) <0.1
Directivity (dB) >50
Return Loss (dB) >50
Maximum Power Handling (mW) 500
Operating Temperature (°C) -20 ~+70
Storage Temperature (°C) -40 ~+85
Package Dimension (mm)

1. Φ5.5 x L34(for 900um Loose tube or bare fiber ))

2. L90xW20xH9.5(for 2.0 or 3.0mm Cable)





High Stability FWDM Module Wide Wavelength Range CE ROHS Certification 0High Stability FWDM Module Wide Wavelength Range CE ROHS Certification 1High Stability FWDM Module Wide Wavelength Range CE ROHS Certification 2
