Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module

Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module

    • Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module
    • Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module
    • Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module
  • Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China (Mainland)
    Brand Name: ahilink
    Certification: CE RoHS
    Model Number: HL-SW1X2-Splitter

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Static bag, Plastic PVC Pack, Retail box
    Delivery Time: 1-4 working days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 5000pcs/week
    Contact Now
    Detailed Product Description
    Operating Wavelength: 1260-1620nm Wavelength: 1310nm&1550nm
    Connector: Optional Operating Temperature: -20~70℃
    Warranty: 3 Years Midea Type: Single Mode 1X2
    Insertion Loss: 0.8db

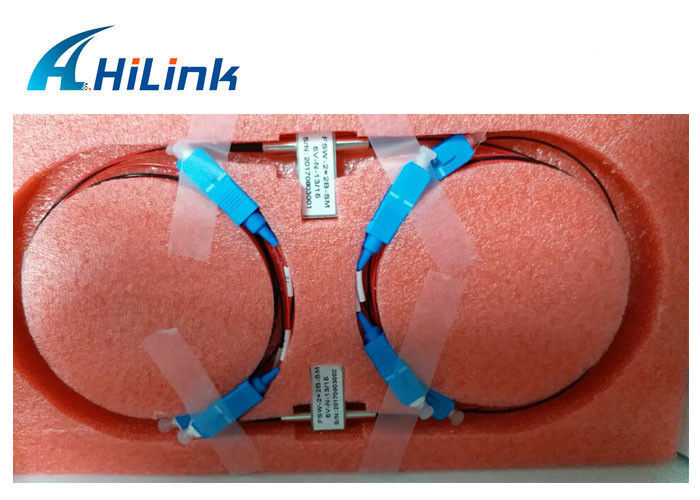

    fiber optical COUPLER 1X2 Optical switch with ABS Box



    General

    The 1x2 Micro Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 2 output fibers.connected to the 1X2 coupler, splittler 50:50 ratio Electronic positive red and negative black cords for power.



    This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.



    1X2 with PON splitter

    Features

    ♦ Low Insertion loss

    ♦ Wide Wavelength Range

    ♦ Low Crosstalk

    ♦ High Stability, High Reliability

    ♦ Epoxy-free on Optical Path

    ♦ Latching and Non-latching





    ♦ Channel Blocking

    ♦ Configurable Add/Drop

    ♦ System Monitoring

    ♦ Single mode or Multimode optional







    Applications
    Optical Network PON FTTH
    Protection/Restoration
    Optical Singnal Routing
    Configurable Optical Add/Drop
    Transmitter and receiver protection

    Instrumentation, testing, and measurement





    Parameters   FSW-1×2-SM-Splitter
    Wavelength Range nm 850±40 / 1300±40 1260~1650
    Operating Wavelength nm 850/1300 1310/1490/1550/1625/1650
    Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:1.0
    Return Loss dB MM≥30 SM≥50
    Crosstalk dB MM≥35 SM≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.02
    Power Supply V 3.0 or 5.0
    Lifetime Time ≥107
    Switch Time ms ≤8
    Transmission Power mW ≤500
    Operating Temperature -20~+80
    Storage Temperature -40~+85
    Weight g 16
    Dimension mm (L)27×(W)12.0×(H)8.2











































    Optical Route

    Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module




    PIN Define



    Control Model Optical Path Electric Drive Status Sensor
    1×2   1 5 6 10 2-3 3-4 7-8 8-9
    Latching P1-P2 -- -- GND V+ Close Open Open Close
    P1-P3 V+ GND -- -- Open Close Close Open
    Non-latching P1-P2 -- -- -- -- Close Open Open Close
    P1-P3 V+ -- -- GND Open Close Close Open







    optical swithc Order Information

    Mode Wavelength Voltage Type Control Type Fiber Type Fiber Diameter Fiber Length Connector
    S=SM
    M=MM
    85=850nm
    13=1310nm
    15=1550nm
    13/15=1310/1550nm
    X=Others
    3=3V
    5=5V
    L=Latching
    N=Non- Latching
    5=50/125
    6=62.5/125
    9=9/125
    X=Others
    25=250um
    90=900um
    20=2.0mm
    30=3.0mm
    X=Others
    1=1m
    2=2m
    X=Others
    0=None
    1=FC/PC
    2=FC/APC
    3=SC/PC
    4=SC/APC
    5=ST/PC
    6=ST/APC
    7=LC/PC
    8=LC/APC






    coupler Parameter P A
    Operating wavelength (nm) 980,1310, 1490 ,1550
    Operating bandwidth (nm) 980± 10nm,1310 ± 40nm,1490 ± 10nm,1550 ± 40nm
    Fiber Type(dB)

    Corning G652D OR Corning G657 A1

    0.15

    Insertion loss (dB) 50:/50 ≤3.3 ≤3.5
    40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
    30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
    20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
    10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
    5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
    3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
    2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
    1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
    PDL (dB) ≤0.1 ≤0.15
    Return loss(dB) ≥50 ≥45
    Directivity (dB) ≥55
    Operating temperature (℃) -40 ~ +85

    The above specification is without connector

    Fiber PON COUPLER Mechanical Optical Switch With ABS Box Module
