CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX

CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX

    • CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX
    • CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX
    • CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX
    • CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX
  • CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE, ROHS, FCC
    Model Number: 1.25G-CWDM-1570-120D

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Blister Packaging, 10pcs/ tray
    Delivery Time: 1-3 days
    Payment Terms: T/T, Western Union
    Contact Now
    Detailed Product Description
    Data Rate: 1.25Gbps Wavelength Nm: 1570
    Transfer Distance: 120km SMF RX Sensi: <-36dBm
    Connector: Dual LC



    * There are totally 18 wavelengths from 1270-1610nm . If need other wavelength , please



    contact customer service .



    * Logo can be customized , if need ,please contact our lovely customer service .





    Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.



    Features :



    • Up to 1.25Gb/s dual data link
    • Hot-pluggable SFP footprin
    • Uncooled DFB laser transmitte in 8 possible CWDM wavelength
    • APD Receiver
    • Duplex LC connector
    • Up to 120km on 9/125µm SMF
    • Metal enclosure for lower EMI
    • Single +3.3V power suppl
    • Low power dissipation <700m
    • Commercial operating temperature range: 0°C to +70°C



    Applications :

    • Gigabit Ethernet

    • 1.06 Gb/s Fibre Channel

    CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX



    Schematic Diagram :

    CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX

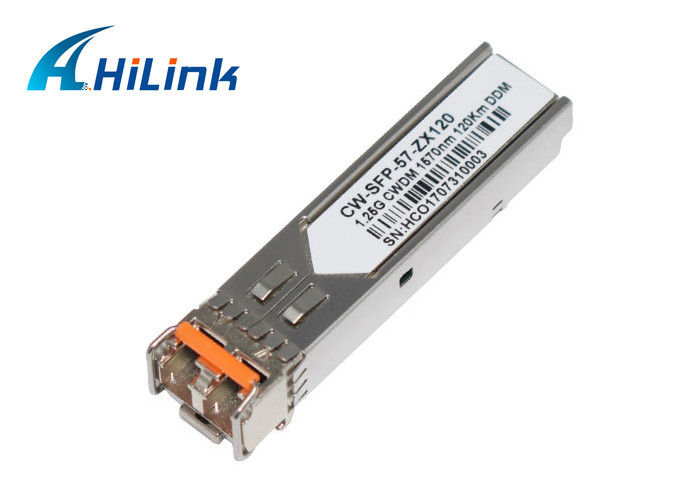

    Product Show :

    CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX

    Packaging & Expressing :

    CWDM-SFP-1570 1.25Gb/s CWDM SFP Optical Transceiver Module 1570nm for CWDM MUX



    <<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<

    International Express :

    We give the optional Express DHL, EMS , E-package and Netherland Post .

    If need other expresses , please contact customer service .
