Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE / ROHS / FCC
Model Number: 1.25G-BIDI-20

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging 10pcs/tray
Delivery Time: 3-6 days
Supply Ability: 1000pcs per day
Get Best Price Contact Now

Detail Information

Data Rate: 1.25G Wavelength: 1310/1550nm 1490/1550nm
Distance: 20km Source: FP/DFB
Sensitivity (dBm): <-22 Receiver: PIN
Connector: SC / LC Optical Power (dBm): -8~-4
High Light:

20km BiDi SFP Transceiver Module

,

SC LC 20km BiDi SFP Transceiver Module

,

1490nm Single Fiber SFP Module

Product Description

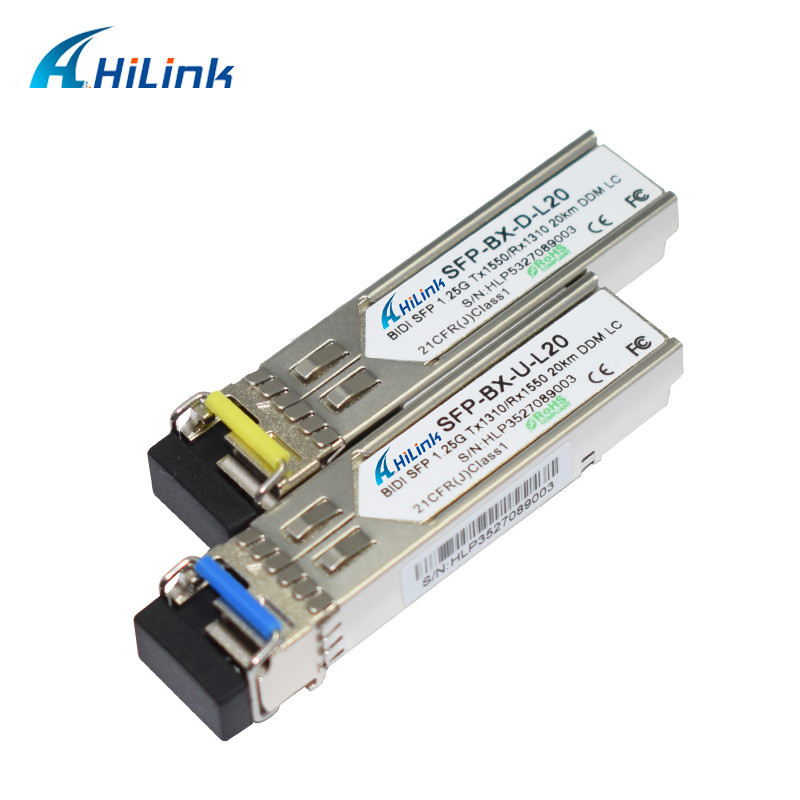

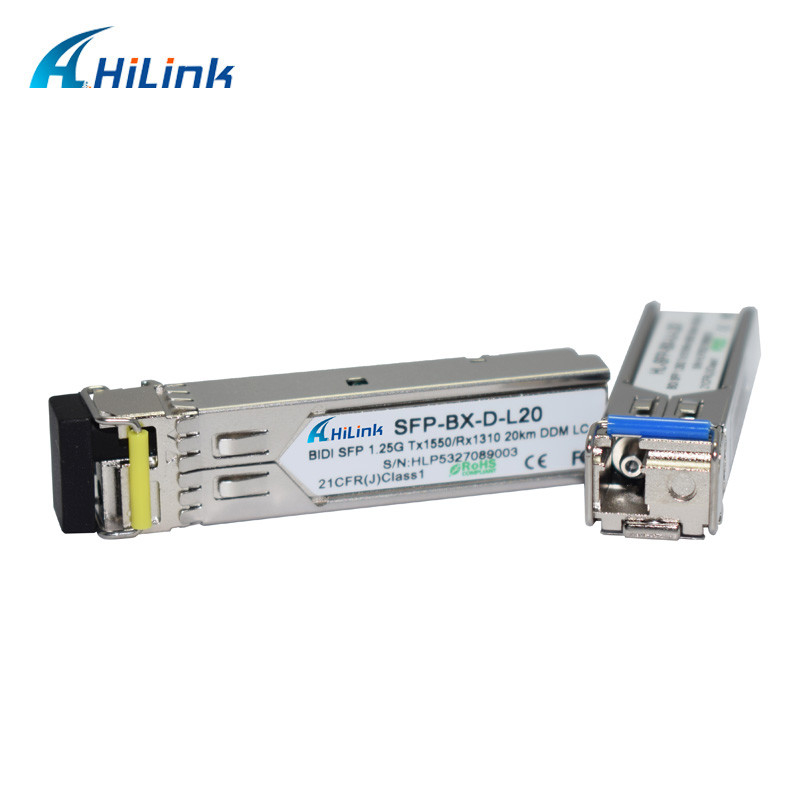

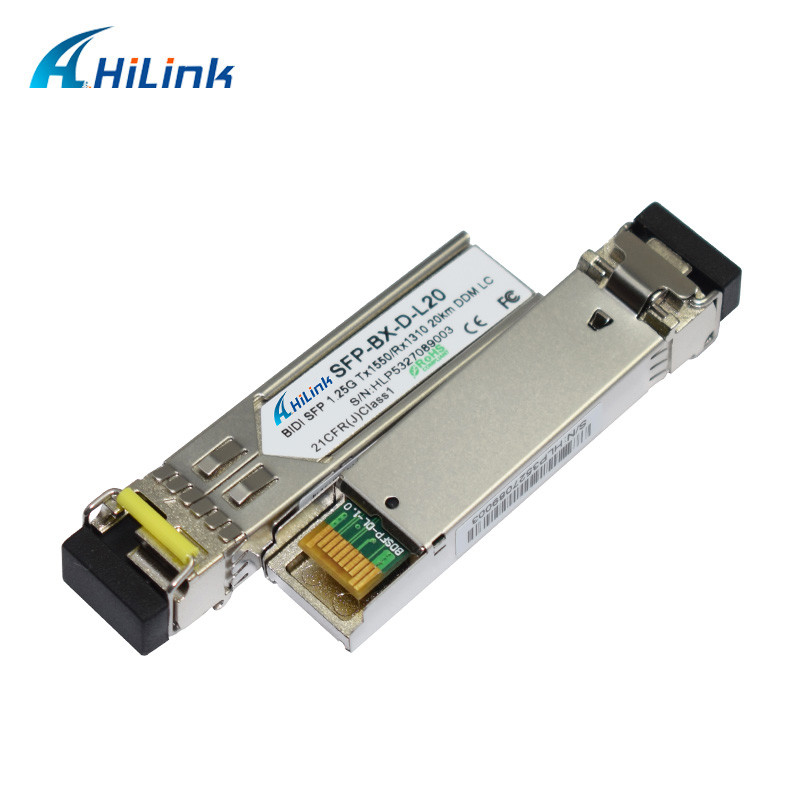

20km BiDi SFP Transceiver Module SC LC Connector 1.25G 1310nm 1490nm

1000Base 1.25G Single Fiber 1310nm / 1490nm 1310nm / 1550nm 20km BiDi SFP Transceiver SC LC Connector



PRODUCT FEATURES



1. Up to 1.25Gb/s data links

2. FP laser transmitter for TS-SF-BL3512-20

    DFB laser transmitter for TS-SF-BL5312-20

3. PIN photo-detector

4. Up to 20KM on 9/125µm SMF

5. Hot-pluggable SFP footprint

6. BIDI LC/UPC type pluggable optical interface

7. Low power dissipation

8. Metal enclosure, for lower EMI

9. RoHS compliant and lead-free

10. Single +3.3V power supply

11. Compliant with SFF-8472

12. Case operating temperature

      Commercial: 0°C to +70°C

      Extended: -10°C to +80°C

      Industrial: -40°C to +85°C



APPLICATIONS



1. Switch to Switch Interface

2. Gigabit Ethernet

3. Switched Backplane Applications

4. Router/Server Interface

5. Other Optical Links







MECHANICAL SPECIFICATIONS



20km BiDi SFP Transceiver Module SC LC Connector 1.25G 1310nm 1490nm 0



PRODUCT DESCRIPTION



Hilink’s 1.25G BIDI SFP 20KM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA),The transceiver consists of four sections: the LD driver, the limiting amplifier, the 1310nm FP laser(the 1550nm DFB laser) and the PIN photo-detector. The module data link up to 20KM in 9/125um single mode fiber.



The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
