40Gb/S 100m QSFP+ BiDi Duplex LC Optical Transceiver MSA LC Connector

40Gb/S 100m QSFP+ BiDi Duplex LC Optical Transceiver MSA LC Connector

Product Details:

Place of Origin: China
Brand Name: Hilink
Certification: CE,ROHS,FCC
Model Number: HL-40G- QSFP+

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Delivery Time: 5-8workingdays
Payment Terms: L/C, T/T, Western Union
Get Best Price Contact Now

Detail Information

Product Name: QSFP+ 40Gb/s 100m QSFP+ BiDi Datarate: 40G
Length: 100m Connector: LC
Type: BIDI Warranty: 3 Years
Lead Time: 3-7working Days OEM: Support
High Light:

BiDi Duplex LC Optical Transceiver

,

100m QSFP+ LC Optical Transceiver

,

MSA LC Sfp Transceiver Module

Product Description

40Gb/S 100m QSFP+ BiDi Duplex LC Optical Transceiver MSA LC Connector

QSFP+ 40Gb/s 100m QSFP+ BiDi Duplex LC Optical Transceiver



Features:
Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
Compliant to QSFP+ SFF-8436 Specification
Aggregate bandwidth of > 40Gbps
Operates at 10.3125 Gbps per electrical channel with 64b/66b encoded data
QSFP MSA compliant
Capable of over 100m transmission on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Single +3.3V power supply operating
Without digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure
Applications:
40 Gigabit Ethernet interconnects
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications
Description:

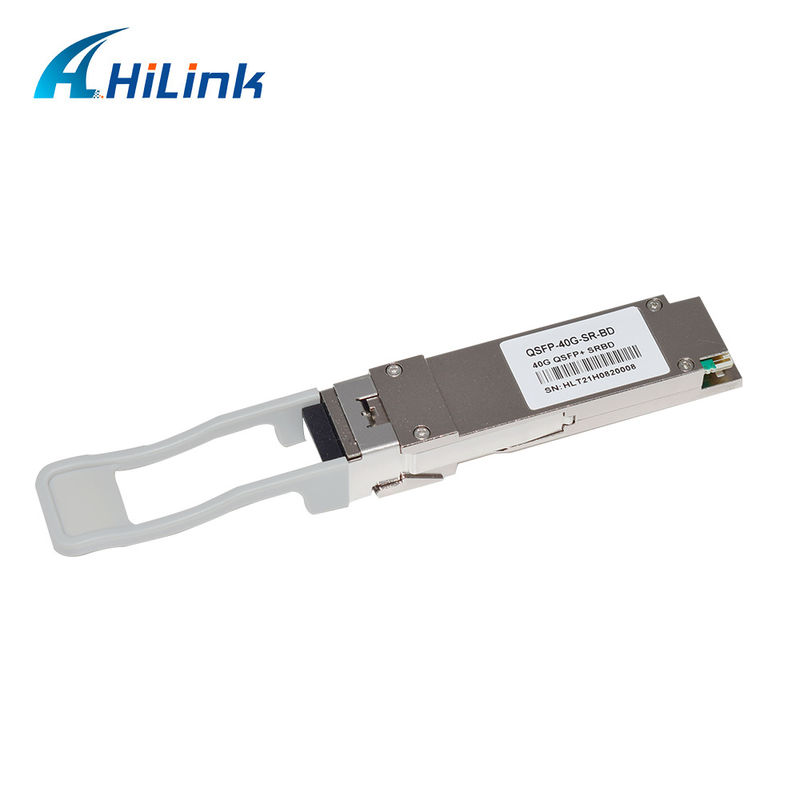

HILINK QSFP BiDi SR is a Four-Channel, Pluggable, LC Duplex, Fiber-Optic QSFP+ Transceiver
for 40 Gigabit Ethernet Applications. This transceiver is a high performance module for
short-range duplex data communication and interconnect applications. It integrates four
electrical data lanes in each direction into transmission over a single LC duplex fiber optic cable.
Each electrical lane operates at 10.3125 Gbps and conforms to the 40GE XLPPI interface.
The transceiver internally multiplexes an XLPPI 4x10G interface into two 20Gb/s electrical
channels, transmitting and receiving each optically over one simplex LC fiber using bi-directional
optics. This results in an aggregate bandwidth of 40Gbps into a duplex LC cable. This allows
reuse of the installed LC duplex cabling infrastructure for 40GbE application. Link distances up
to 100 m using OM3 and 150m using OM4 optical fiber are supported. These modules are de-
signed to operate over multimode fiber systems using a nominal wavelength of 850nm on one
end and 900nm on the other end. The electrical interface uses a 38 contact QSFP+ type edge
connector. The optical interface uses a conventional LC duplex connector.
40Gb/S 100m QSFP+ BiDi Duplex LC Optical Transceiver MSA LC Connector 040Gb/S 100m QSFP+ BiDi Duplex LC Optical Transceiver MSA LC Connector 1
