ZR4 60km SMF LC Connector Optical Transceiver 1304nm 1309nm 100Gbase

ZR4 60km SMF LC Connector Optical Transceiver 1304nm 1309nm 100Gbase

Product Details:

Place of Origin: China
Brand Name: HiLink
Certification: CE/FCC/RoHS
Model Number: HL- 100G - QSFP-ZR4

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic bag, Retail box
Delivery Time: 2-7 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10pcs/Week
Get Best Price Contact Now

Detail Information

Product Name: 100G QSFP28 ZR4 Application: 100Gbase
Wavelength: 1295nm/1300nm/1304nm/1309nm Distance: 60KM
DDM/DOM: Yes Name: Connector Optical Transceiver
High Light:

SMF LC Connector Optical Transceiver

,

ZR4 60km Connector Optical Transceiver

,

1304nm Gigabit Fiber Transceiver

Product Description

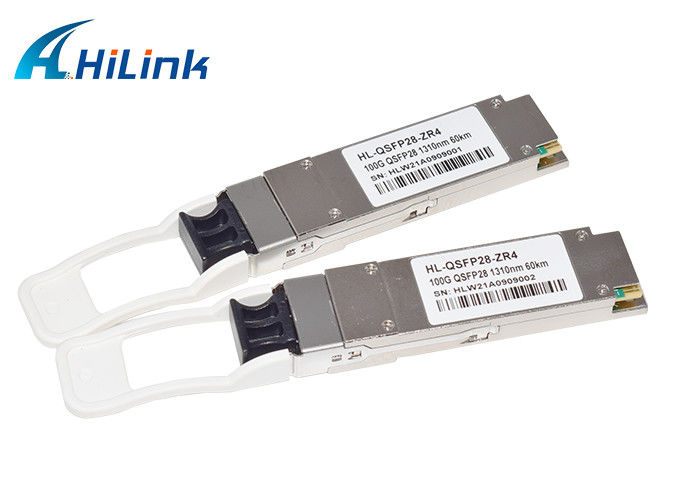

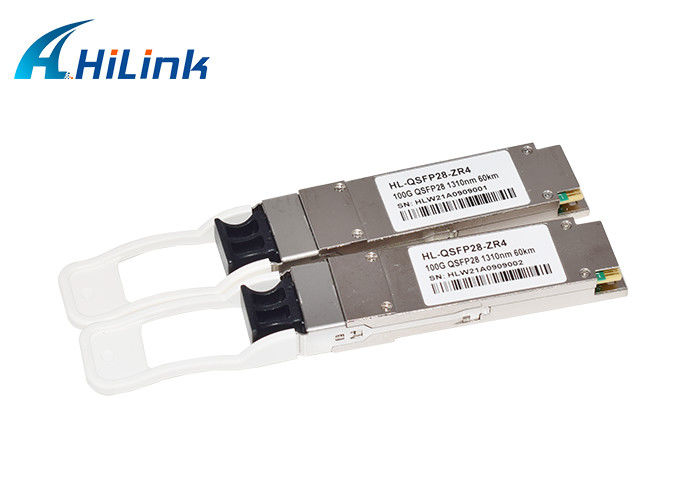

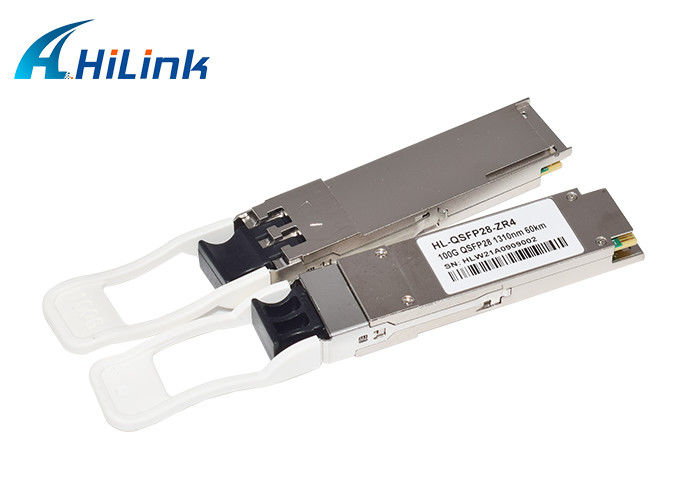

ZR4 60km SMF LC Connector Optical Transceiver 1304nm 1309nm 100Gbase

QSFP28 100G ZR4 60km 1295nm/1300nm/1304nm/1309nm SMF LC Connector Optical Transceiver





PRODUCT FEATURES



  • QSFP28 MSA compliant
  • Hot pluggable 38 pin electrical interface
  • 4 LAN-WDM lanes MUX/DEMUX design
  • 4x25G electrical interface
  • Maximum power consumption 6.5W
  • LC duplex connector
  • Supports 103.125Gb/s aggregate bit rate
  • Up to 80km transmission on single mode fiber
  • Operating case temperature: 0℃ to 70℃
  • Single 3.3V power supply
  • RoHS 2.0 compliant

APPLICATIONS



  • 100GBASE-ZR4 100G Ethernet
  • Telecom networking



DESCRIPTIONS





HL -Q31C-ZR4 is designed for 60km optical communication applications. This module contains 4- lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter- face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure 1

Parameter Symbol Min Typ Max Units Notes
Operating Case Temperature TC 0 - +70 °C
Power Supply Voltage VCC 3.14 3.3 3.46 V
Data rate     103.125 112 Gb/s





QSFP SERIES :



QSFP Nominal Wavelength (nm) Cable Type Core Size (Microns) Modal Bandwidth (MHz*km)*3 Cable Distance*1 Power Consumption (W) Pull Tab Color
QSFP-100G-SR4-S 850 MMF

50.0

50.0

2000 (OM3)

4700 (OM4)

70m

100m

3.5 Beige
QSFP-100G-LR4-S 1295, 1300, 1304, 1309 SMF G.652 - 10km 3.5 Blue
QSFP-100G-CWDM4-S 1271, 1291, 1311, 1331 SMF G.652 - 2km 3.5 Green
QSFP-100G-PSM4-S 1310 SMF G.652 - 500m 3.5 Orange
QSFP-100G-SM-SR 1271, 1291, 1311, 1331 SMF G.652 - 2km 3.5 Green
