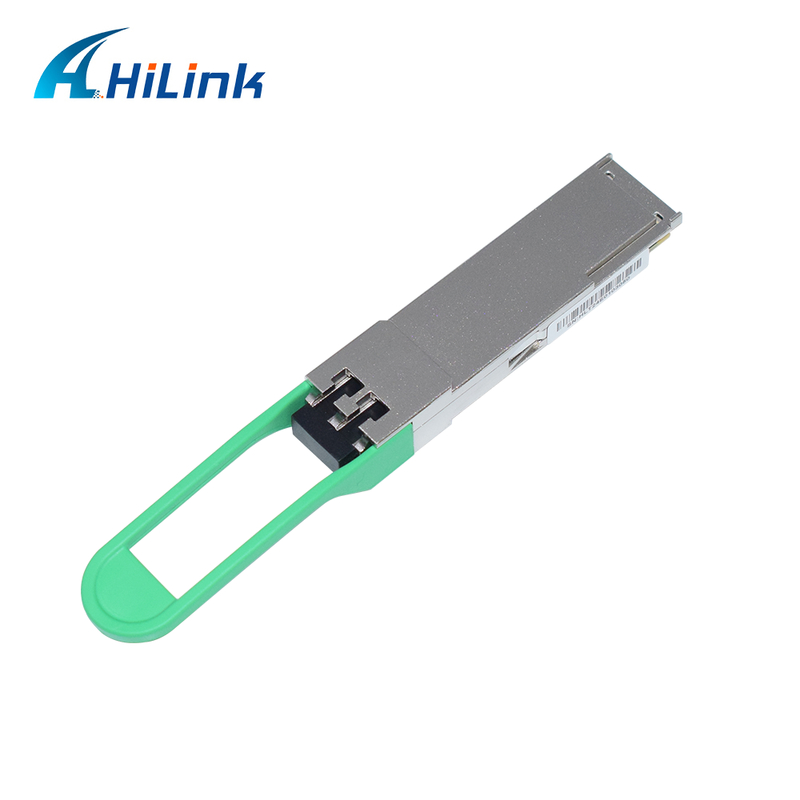

HL-QSFP28-100G-80 100Gb/s QSFP28 BiDi 80km Transceiver
Product Specifications
| Attribute |
Value |
| Product Name |
100G QSFP28 BIDI 80KM |
| Wavelength |
1273.54, 1277.89, 1282.26, 1286.66nm |
| Connector |
Single LC Connector |
| Max Cable Distance |
80km |
| Warranty |
3 years |
| OEM |
Support |
| Delivery Time |
3-7 working days |
Product Description
The HL-QSFP28-100G-UD-80 provides 100GBase-BX throughput up to 80km over single-mode fiber (SMF) using wavelengths of 1273.54, 1277.89, 1282.26, 1286.66nm-TX/1295.56, 1300.05, 1304.58, 1309.14nm-RX via an LC connector. This bidirectional unit must be paired with a complementary wavelength transceiver or network appliance.
Digital diagnostics functions are available via the I2C interface as specified by the QSFP28 MSA, providing access to real-time operating parameters. This hot-swappable transceiver is ideal for 100G Ethernet, data center, and storage area network applications.
Key Features
- 4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA with SOA
- Supports 100GBASE-ZR4 (103.125Gbps) and OTU4 (111.81Gbps)
- Compliant with IEEE 802.3-2012 Clause 88, IEEE 802.3bm CAUI-4, and ITU-T G.959.1-2012-02 standards
- Simplex LC connector
- Single +3.3V power supply
- Operating temperature range: 0°C to 70°C
- RoHS Compliant
Applications
- 100GBASE-ZR4
- Data Center infrastructure
OEM/ODM Services
Custom OEM and ODM orders are available upon request.
Quality Guarantee
All optical transceivers are brand new with new components, never using refurbished materials. Each unit undergoes functional and aging tests. We provide a 3-year warranty from the shipment date.
Product Support
We supply compatible optical transceiver modules including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and special transceiver modules. Our products are compatible with most major brands.
Frequently Asked Questions
Q: Do you sell second-hand products?
A: No. All our products are brand new with new components.
Q: What payment terms do you accept?
A: We accept T/T, PayPal, and Western Union.
Q: What shipping methods do you offer?
A: We ship via DHL, FedEx, TNT, UPS, EMS (3-7 day delivery).
Q: Do your products come with warranty?
A: Yes, we provide a 3-year warranty from shipment date.
Q: What devices are your products compatible with?
A: Our products are compatible with mainstream network switches.
Q: How do I place an order?
A: 1) Confirm order details (model/quantity)
2) Approve Proforma Invoice and make payment
3) We ship goods and provide tracking number
4) We assist with tracking until safe delivery
