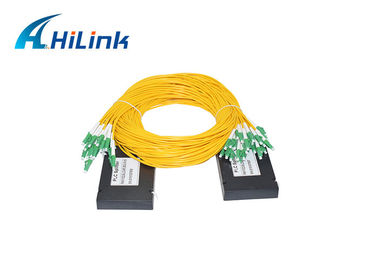

Passive FTTH Fiber Optical Splitter 1x32 PLC SC/LC Connector 1260-1650nm Low PDL

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: PLC Splitter
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Poly Bag
  • Detail Information
  • Product Description

Detail Information

Wavelength: 1260-1650nm Package: Mini Abs Box
Connector: SC/FC/ST/LC Operation Temp: -40~85
OEM: Yes Warranty: 2 Years
High Light:

fiber optic splitter


PLC splitter module

Product Description

Mini PLC Optical Splitter Planar Lightwave Circuit Splitter 2 Years Warranty OEM



1. Description

1). Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.

2). Fiber optic splitter features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3). Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications.

4). Fiber optic splitter meet GR-1209-CORE and GR-1221-CORErequirements.


2. Feature

Low Insertion loss

2 Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: 1260-1650nm

Wide Operating Temperature: -40°C - 85°C

High Reliability and Stability



1 FTTX Systems

PON Networks

CATV Links

Optical Signal Distribution

5 CWDM DWDM Project


4. Detailed Specification

Parameters 2×2 2×4 2×8 2×16 2×32
Operating Wavelength (nm) 1260~1650
Fiber Type SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade) 4.2 7.6 11.0 14.5 17.5
Loss Uniformity (dB) 0.8 1.5 1.5 2.0 2.5
Return Loss (dB) (S/P Grade) 50/55 50/55 50/55 50/55 50/55
Polarization Dependent Loss(dB) 0.2 0.2 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.5 0.5 0.5 0.5
Temperature Stability(-40~85 °C)(dB) 0.5 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
Module Dimension (mm) (L×W×H) 100×80×10 100×80×10 120×80×18 140×115×18 140×115×18

Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector

Features Application
1×32 PLC Splitter, SC/APC connector Optical Signal Distribution
2000μm ITU G.657A1 for fiber input/output Data Communications
Low insertion loss ≤ 17.7dB Lan and CATV System
Low polarization dependent loss (PDL) ≤ 0.3dB FTTX Deployment
Operating bandwidth: 1260 - 1650nm FTTH Network
Compact design, suitable for installation in optical equipments Passive Optical Networks (PON)
Wide Operating Temperature: -40 - 85°C, support industry standard applications Measuring System and Laser System
High reliability and stability, Telecordia GR-1221/1209 compliant DWDM and CWDM Systems


Passive FTTH Fiber Optical Splitter 1x32 PLC SC/LC Connector 1260-1650nm Low PDL 0Passive FTTH Fiber Optical Splitter 1x32 PLC SC/LC Connector 1260-1650nm Low PDL 1Passive FTTH Fiber Optical Splitter 1x32 PLC SC/LC Connector 1260-1650nm Low PDL 2
