Hilink Pigtail Patch Cord PLC Optical Splitter LC/SC-APC/UPC Connector 0.9mm Diameter

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-Pigtail
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs/week
  • Detail Information
  • Product Description

Detail Information

Product Name: HL-pigtail Length: Customizable
Connector: APC/UPC LC/SC External Diameter: 0.9 MM
Fiber Type: Single Fiber Single Mode
High Light:

fiber optic splitter


PLC splitter module

Product Description

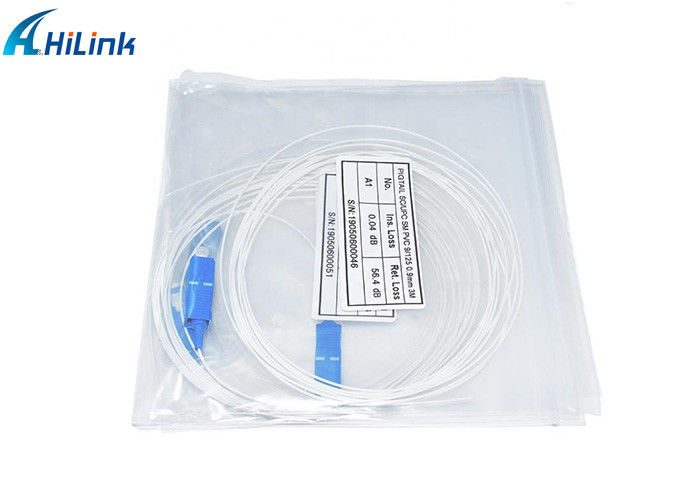

Hilink Pigtail/Patch cord LC/SC-APC/UPC connector 0.9mm diameter single fiber SM



If you have other requirements or need to customize, please contact me.




  • --- Good durabilit
  • --- Good exchangeabilit
  • --- High temperature stabilit
  • --- Low insertion loss and back reflection los
  • --- Superior Quality Standard PC/UPC/APC Polishin
  • --- Standard: Telcordia GR-326-CORE, TIA/EIA and IEC







Code Male(With pin),Female(Without pin)
Ferrule SM Standard,SM Low Loss;MM Standard,MM Low Loss
Ferrule Holes 4,8,12,24
Housing Color Green(for SM),Beige(for MM),Yellow(for SM Lowloss),Aqua( for OM3 50/125 )
Polishing PC,APC
Cable Jacket ribbon,Bare ribbon,3.0mm Mini cable(250um 12F/24F)


Insertion Loss Typical 0.35dB 0.20dB 0.35dB 0.20dB
Max 0.75dB 0.35dB 0.65dB 035dB
Return Loss APC>=50dB   >=25 >=25
Durability <=0.3dB(change 500matings) <=0.3dB(change1000 matings)
Exchangeability <=0.3dB( Connector Randomly)
Tensile Strength <=0.3dB(Max 66N)
Vibration <=0.3dB(10~55Hz)
Operation Temperature -40℃ ~ +75℃






  • Gigabit Ethernet; Active device termination
  • Telecommunication networks; Video; ODF
  • Multimedia; Premise installations; Local area networks;
  • FTTH FTTX applications; CATV





 Other Passive Items
Hilink Pigtail Patch Cord PLC Optical Splitter LC/SC-APC/UPC Connector 0.9mm Diameter 0







Our services:


1. Contact our sales for more details to confirm your order.
2. Short lead time after confirmation.

3. We deliver goods by international Express.

4. Quick response for customers' feedback and other questions.




Shipment & Payment:

1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.





›& Brand new.

›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty(From the date of shipment).
