1X4 Single Mode 500MW 1650nm Polarization Optic Switch

1X4 Single Mode 500MW 1650nm Polarization Optic Switch

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HFSW-P 1*4

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Delivery Time: 1~4working days
Get Best Price Contact Now

Detail Information

Condition: New Wavelength: 1270nm ~1650nm
Polarization: Yes Power: Max 500MW
Warranty: 3 Years Operating Temperature: 0 ~ +70
High Light:

1650nm Polarization Optic Switch

,

500MW Polarization Optic Switch

,

1X4 Single Mode Optical Switch

Product Description

The maintains polarization Optic Switch 1X4 Single Mode Isolation With in both directions supports all wavelength at 1260nm~1650nm or 850nm Multimode wavelength,The Series 1x4 fiber optic switch connects optical channels by redirecting an in- coming optical signal into a selected output fiber. This is achieved by using a patent pending opto-mechanical configuration activated via an electrical control signal. Latching operation preserves the selected optical path after the drive signal has been removed. The switch has integrated electrical position sensors, and the new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost. Electronic driver is available for this series of switches.



Features



Unmatched Low Cost



·Low Insertion Loss



·High Channel Isolation



   ·High Stability, High Reliability ·Epoxy-free on Optical Path ·Latching and Non-latching

    Optional for polarization







Applications



Optical Network Protection/Restoration



·Optical Signal Routing



·Configurable Optical Add/Drop ·Transmitter and Receiver Protection ·Network Test Systems ·Instrumentation







Product Feature



Specification Performance



  Parameters Unit       FSW-1×4

  Wavelength Range nm 850±40 /   850±40 or   1260~1650
      1310±40   1310±40

  Test Wavelength nm 850 / 1310     1310/1550,1260~1360,1510~1610

  Insertion Loss 1, 2 dB       Max:1.4

  Return Loss 1, 2 dB       MM ≥ 35 SM ≥ 55

  Crosstalk 1 dB       MM ≥ 35 SM ≥ 55

  PDL dB       ≤0.1

  WDL dB       ≤0.30

  Repeatability dB       ≤±0.02

  Operating Voltage V       3.0 or 5.0

  Durability Cycles       ≥ 10 Million

  Switching Time ms       ≤10

  Optical Power mW       ≤500

  Operating Temperature       0 ~ +70

  Storage Temperature       -40 ~ +85

  Relative Humidity %       5 ~ 95

  Dimension mm   (L)26.0×(W)25.5×(H)10.3 or Customer design




Note: 1. Within operating temperature and SOP.
          2.Excluding Connectors.









Pin Configurations



Type State   Electric Drive     Status Sensor

1×4   Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9

Latching 0(Reset) GND GND GND V+ Close Open Open Close

1(Set) V+ GND GND GND Open Close Close Open


Non- 0(Reset) --- --- --- --- Close Open Open Close
latching
1(set) V+ --- --- GND Open Close Close Open








Ordering Information:



Fiber Type Voltage Switch type Test Wavelength TubeType Fiber length Connector

SM:SM,9/125 3:3V L:Latching 850:850nm 25:250um 05:0.5m±5cm FP:FC/PC,FA:FC/APC

M5:MM,50/125     1310:1310nm 90:90um 10:1.0m±5cm SP:SC/PC,SA:SC/APC

M6:MM,62.5/125 5:5V N:Non-latching 13/15:1310/1550nm X:Others 15:1.5m±5cm LP:LC/PC,LA:LC/APC

X: Others     X:Others   X:Others OO:None,X:Others

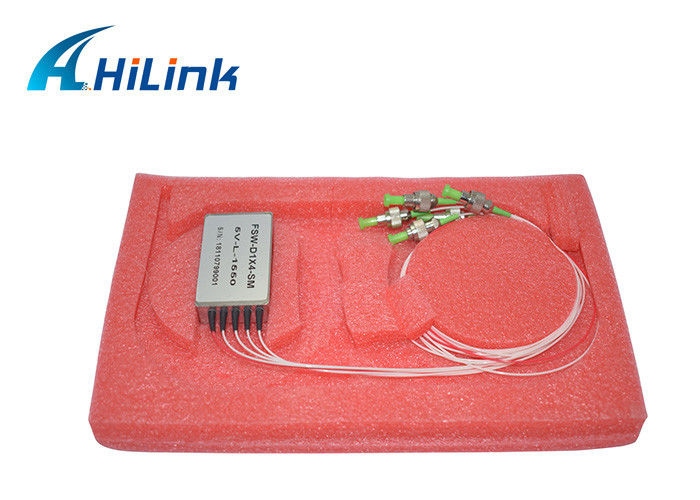

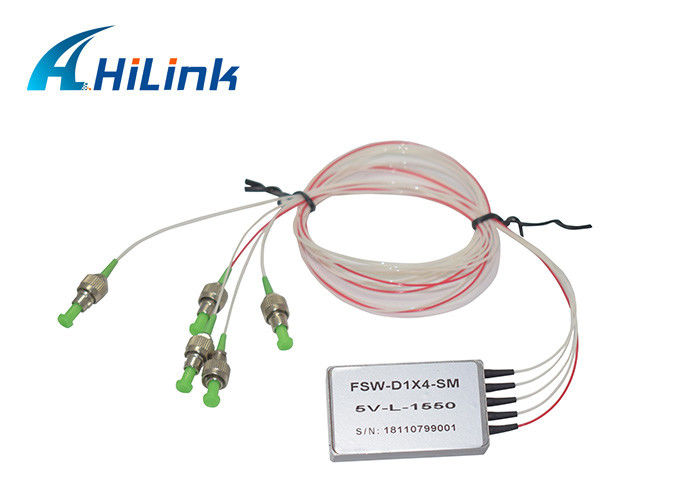

Real photo
