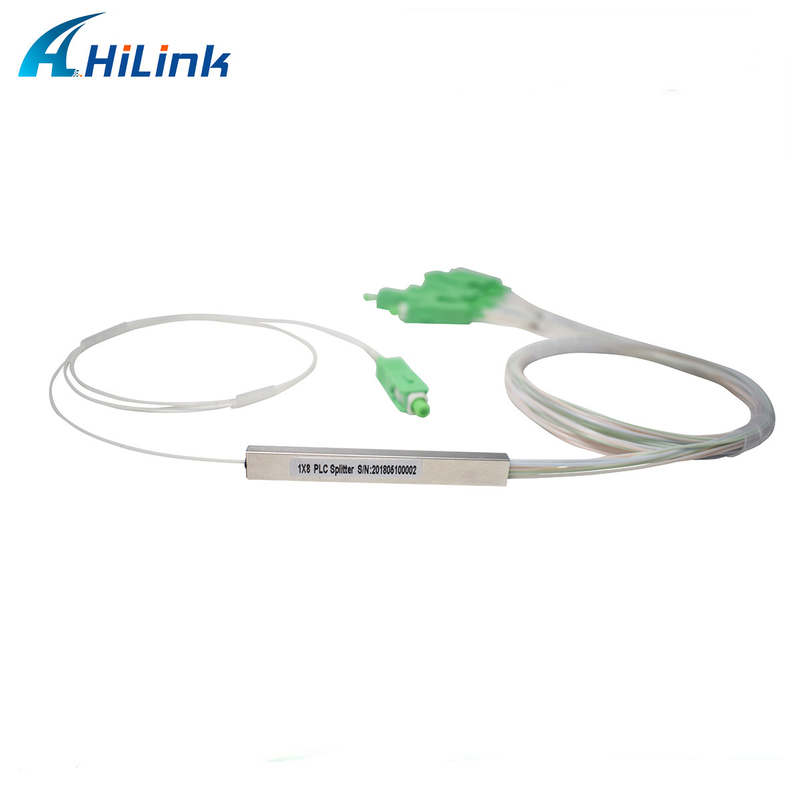

1X8 Steel Tube Package Type Optical PLC Splitter SC/APC Fiber Optic Splitter

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE, FCC, RoHS
Model Number: HL-PLC-108-SA
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: plastic tray, carton box
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month
  • Detail Information
  • Product Description

Detail Information

Type: FTTx Solutions Package: Mini Steel Tube
Fiber Mode: Single Mode Wavelength: 1260-1650nm
Fiber OD: 0.9mm Cable Length: 1M (customized)
High Light:

FTTx Solutions Optical PLC Splitter

,

RoHS Approved Fiber Opitc Splitter

,

Steel Tube Package Type Optical Splitter

Product Description



PLC Splitter 1*2/4/8/16/32/64 ABS/Steel Tube Package Type



Product Description

Planar Lightwave Circuit Splitter (PLC Splitters) is a technology based on planar waveguide optical power distribution products,with low insertion loss and polarization dependent loss, small size, wide operating wavelength range, high channel uniformity and good characteristics. Especially for passive optical network (EPON, BPON, GPON, etc.) to connect the central office and terminal equipment and optical signal splitter to achieve. All products comply with Telcordia GR-1209-CORE, Telcordia GR-1221-CORE, YD / T 1117-2001 and RoHS standards.

1xN and technology can provide a full range of full specification 2xN products, and customized for all occasions in the optical splitter.



Parameters



1X2




 1X4        1X8      1X 16      1X32     1X 64       1X128
Operating Wavelength (nm) 1260~1650
Fiber Type G657A1 or customer specified
Insertion Loss (dB) (P/SGrade ) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.0 2.5
Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.25 0.3 0.35 0.4
Return Loss (dB) ( P/S Grade) 55/50 55/50 55/50 55/50 55/50 55/50 55/50
Directivity (dB) 55 55 55 55 55 55 55
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5 0.5
Temperature Stability (-40~85 C)(dB)  0.4 0.4 0.4 0.5 0.5 0.5 0.5
Operating Temperature (°C) -40~85
Storage Temperature (C) -40~85
Device Dimension (mm) 40x4x4 40x4x4 40x4x4 50x4x4 50x7x4 60x12x4 N/A
Module Dimension (mm) 100x80x10 100x80x10 100x80x10 120x80x18 140x115x18 140x115x18 140x115x18
Mini-Module Dimension (mm) 50x7x4 50x7x4 50x7x4 60x12x4 80x20x6 100x40x6 N/A



Features



* Ultra-end insertion loss and associated loss of polarization

* Good spectral uniformity
* wide wavelength bandwidth,
* a wide range of working environment
* High reliability
* Small Size





Applications



* FTTx

* Passive Optical Network (PON)
* Cable TV Network (CATV)
* Other optical signal splitter system





Details Images

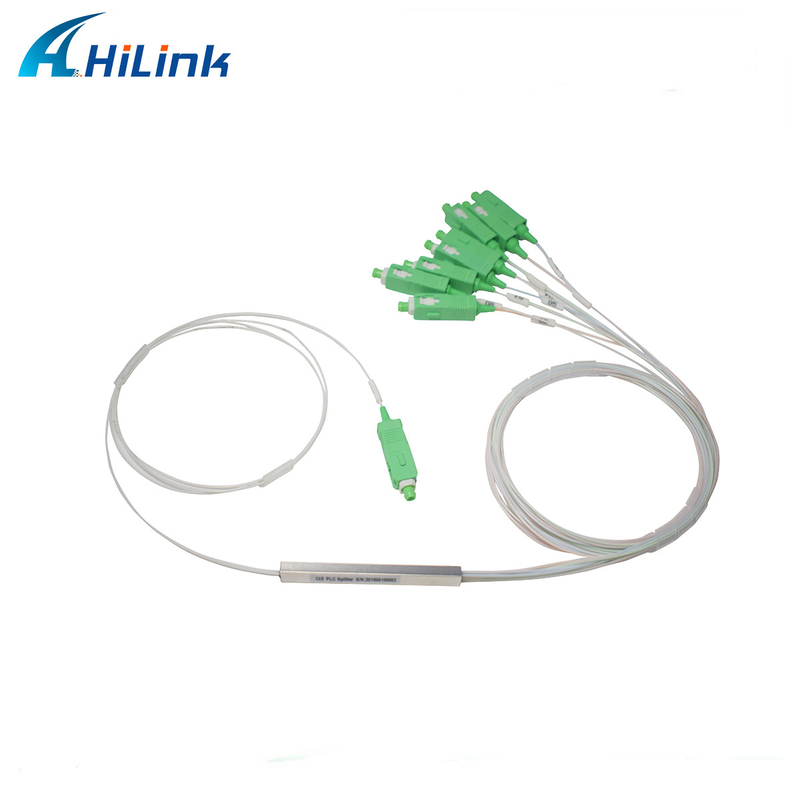

1X8 Steel Tube Package Type Optical PLC Splitter SC/APC Fiber Optic Splitter 0

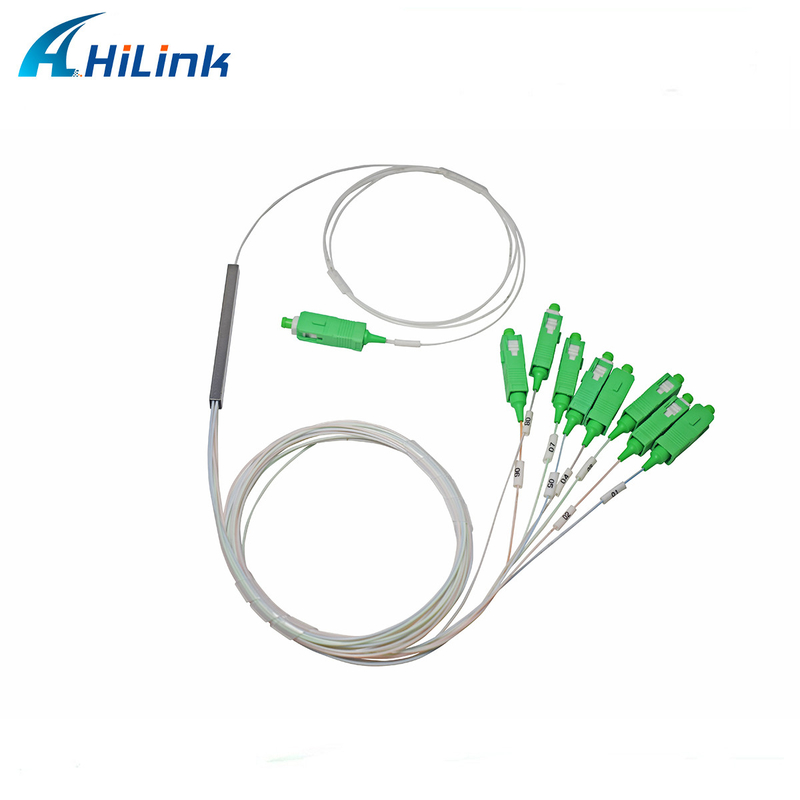

1X8 Steel Tube Package Type Optical PLC Splitter SC/APC Fiber Optic Splitter 1



FAQ



1. Can I have a sample order? What is your MOQ?

Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.

2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your payment term?

T/T, Western Union or Paypal.

5. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.

6. Could I use our own logo and label?

OEM service is provided.
