Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-CW-XFP-80 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Product Name: | CWDM XFP 10G ZR | Distance: | 80KM |
|---|---|---|---|
| Wavelength: | 1470~1610nm | Data: | 9.95 To 11.3Gb/s |
| Transmitter: | Cooled 1470nm~1610nm EML | Receiver: | APD |
| High Light: | 10GBASE CWDM XFP Optical Transceiver,XFP Optical Transceiver 1610nm,XFP ZR Optical Fiber Transceiver |
||
Product Description

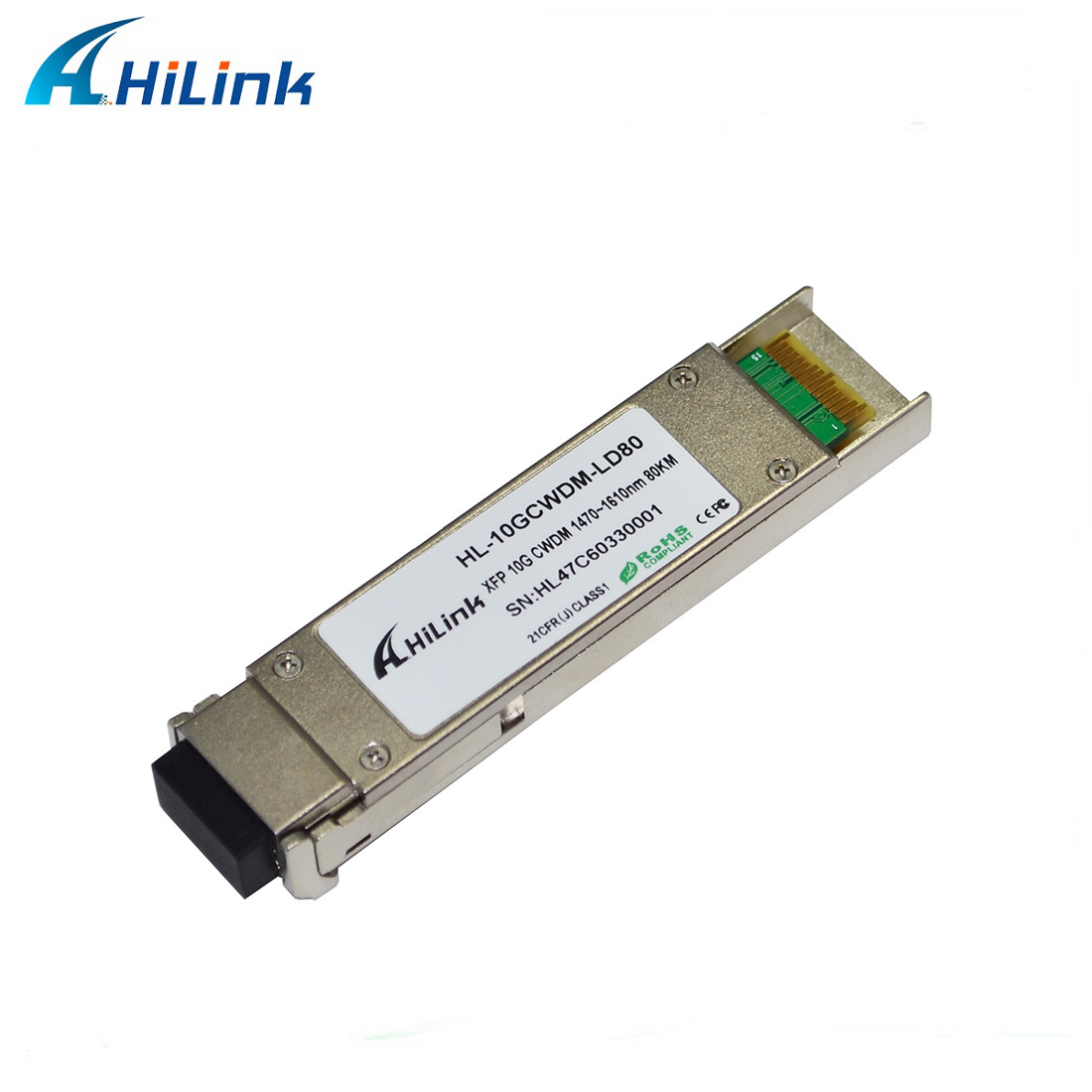

Hilink CWDM XFP 10 Gigbit Ethernet Transceiver 1470-1610nm XFP ZR 80KM SMF Dual LC
Hilink 10G CWDM XFP ZR optical transceivers are designed for use in 10-Gigabit Ethernet links up to 80km over Single Mode fiber.
| Item No. | HL-CW-XFP-80 | Vendor Name | Hilink |
| Form Type | XFP | Max Data Rate | 11.3Gbps |
| Wavelength | 1470~1610nm | Max Cable Distance | 80KM |
| Interface | LC duplex | Optical Components | EML |
| Cable Type | SMF | DOM Support | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Features
Supports 9.95 to 11.3Gb/s bit rates
Duplex LC connector
Hot-pluggable XFP footprint
Cooled 1470nm~1610nm EML transmitter, APD photo-detector
Applicable for 80km SMF connection
Low power consumption, <3.5W
Digital Diagnostic Monitor Interface
XFP MSA Rev 4.5 Compliant
Operating case temperature: Commerical:0 to 70 °C
Industrial:-40 to 80°C
Specifications
| Parameter | Symbol | Unit | Min | Typ | Max |
| Transmitter | |||||
| Center Wavelength | λ | nm | 1464.5 | 1617.5 | |
| Center wavelength stability | ΔλD | nm | -6.5 | λC | 6. 5 |
| Optical Transmit Power | Po | dBm | 0 | - | + 3 |
| Optical Transmit Power (disabled) | PTX_ DIS | dBm | - | - | -30 |
| Extinction Ratio | ER | dB | 8.2 | - | - |
| RMS spectral width | Δλ | nm | - | - | 0.3 |
| Side Mode Suppressicn Ratio | SMSR | dB | 30 | - | - |
| Dispersion penalty | DP | dB | - | - | 2 |
| Relative Intensity Noise | RIN | dB/Hz | - | - | -130 |
| Eye Mask | Compliant with ITU-T G. 691 STM-64 eye mask | ||||
| Receiver | |||||
| Center Wavelength | λC | nm | 1260 | 1600 | |
| Receiver Sensitivity | PAVG | dBm | - | - | -16 |
| Receiver Sensitivity in 10.3Gbps (OMA) [1] | RSEN1 | dBm | - | - | -14.3 |
| Receiver Sensitivity in 10.3Gbps (OMA) | RSEN2 | dBm | - | - | -11.3 |
| Maximum Input Power | RX-overload | dBm | - | - | -1 |
| Reflectance | Rrx | dB | - | - | -27 |
| LOS Asserted | Lsa | dBm | -28 | - | - |
| LOS De-Asserted | dBm | - | - | -22 | |
| LOS Hysteresis | Lh | dB | 0.5 | - | - |
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
10GBASE-ZR at 10.3125Gbps
10G Ethernet
Other optical links
Details Photos
Hilink Advantage
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
