Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE, FCC, RoHS |
| Model Number: | HL-FSW-2*2F-SM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | USD |

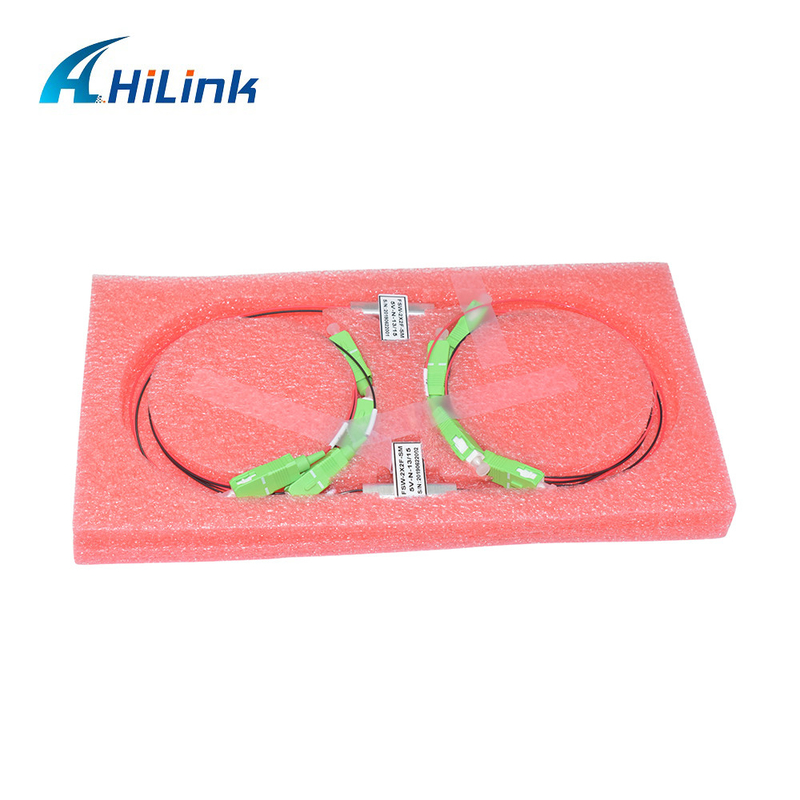

| Packaging Details: | plastic tray, carton box |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Product Name: | 2X2F Single Mode Mechanical Optical Switch | Dimensions: | 28x12x 8.2 (mm) |
|---|---|---|---|
| Wavelength: | 1260-1620nm | Fiber Mode: | Single Mode |
| Fiber Type: | 900um Loose Tube | Switch Time: | ≤ 5s |
| Cable Length: | 0.5M (customized) | Applications: | Broadcast Communication/LAN/OADM, Etc. |
| High Light: | Mechanical Optical Switch Non Latching,1620nm Mechanical Optical Switch,2X2F Mechanical Optical Switch |
||
Product Description
2X2F Single Mode 1260-1620nm Mechanical Optical Switch 3V/5V Latching/Non-Latching
Hilink's FSW-2×2F Optical Switch, which is famous for its high performance, low insertion loss and compact .
This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.
It is an ideal component for OADM, OXC, OLP system monitoring and protection.
Features
* Low Insertion Loss
* High Channel Isolation
* High Return Loss
* Low PDL
* High Stability and Reliability
| Parameters | Unit | HL-FSW-2x2F | |
| Wavelength Range | nm | 850±40 / 1300±40 | 1260 ~ 1650 |
| Test Wavelength | nm | 850 / 1300 | 1310 / 1550 |
| Insertion Loss 1, 2 | dB | Typ: 0.8 Max: 1.2 | Typ: 0.8 Max: 1.0 |
| Return Loss 1, 2 | dB | MM ≥ 30 SM ≥ 50 | |
| Crosstalk 1 | dB | MM ≥ 35 SM ≥ 55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Operating Voltage | V | 3 or 5 | |
| Durability | Cycles | ≥ 10 Million | |
| Switching Time | ms | ≤8 | |
| Optical Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20 ~ +70 | |
| Storage Temperature | ℃ | -40 ~ +85 | |
| Relative Humidity | % | 5 ~ 95 | |
| Weight | g | 14 | |
| Dimension | mm | 27x12.6x8.0 | |
Applications
* Optical Amplifier
* CATV Optical Link
* Optical System testing
* LAN
* Broadcast Communication

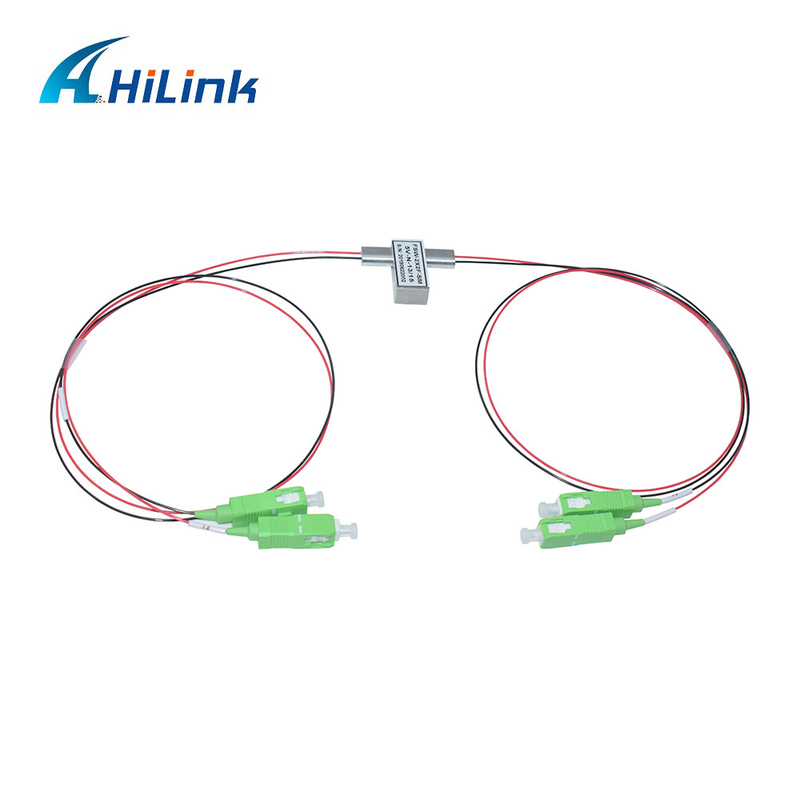

Details Images
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
4. What is your payment term?
5. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
6. Could I use our own logo and label?
OEM service is provided.
