1x2 FSW Mechanical Optical Switch SM 1310nm 1550nm 900um 0.5M Non Latching Without Connector

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE, FCC, RoHS
Model Number: HL-FSW-1*2-SM
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: plastic tray, carton box
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: 1X2 Single Mode Mechanical Optical Switch Wavelength: 1260-1650nm
Fiber Mode: Single Mode Fiber Type: 900um Loose Tube
Switch Time: ≤ 5s Cable Length: 0.5M (customized)
Power Supply: 5V Dimensions: 27x12x 8.2 (mm)
High Light:

FSW Mechanical Optical Switch

,

1x2 1310nm Mechanical Optical Switch

,

900 um 0.5M Mechanical Optical Switch

Product Description





FSW 1x2 Mechanical Optical Switch SM 1310nm 1550nm 900um 0.5M Non-Latching Without Connector



Product Description



Hilink's FSW-1×2 Optical Switch, which is famous for its high performance, low insertion loss and compact .
This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.
It is an ideal component for OADM, OXC, OLP system monitoring and protection.

Features



* Low Insertion Loss

* Wide Wavelength Range

High Channel Isolation
* High Return Loss
* Low PDL

Low Crosstalk
* High Stability and Reliability

* Epoxy-free on Optical Path ·Latching and Non-latching



Parameters Unit HL-FSW-1x2
Wavelength Range nm 1260 ~ 1620
Test Wavelength nm 1310 / 1550
Insertion Loss 1, 2 dB Typ: 0.5  Max: 1.0
Return Loss 1, 2 dB SM ≥ 50
Crosstalk 1 dB SM ≥ 55
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3 or 5
Durability Cycles ≥ 10 Million
Switching Time ms ≤8
Optical Power mW ≤500
Operating Temperature -20 ~ +70
Storage Temperature -40 ~ +85
Relative Humidity % 5 ~ 95
Fiber Color   P1,P3-- Red,  P2,P4-- Black
Dimension mm 27x12.6x8.0







Applications



*  R&D in Laboratory

*  System Monitoring
*  OADM
*  MAN (Metropolitan Area Network)

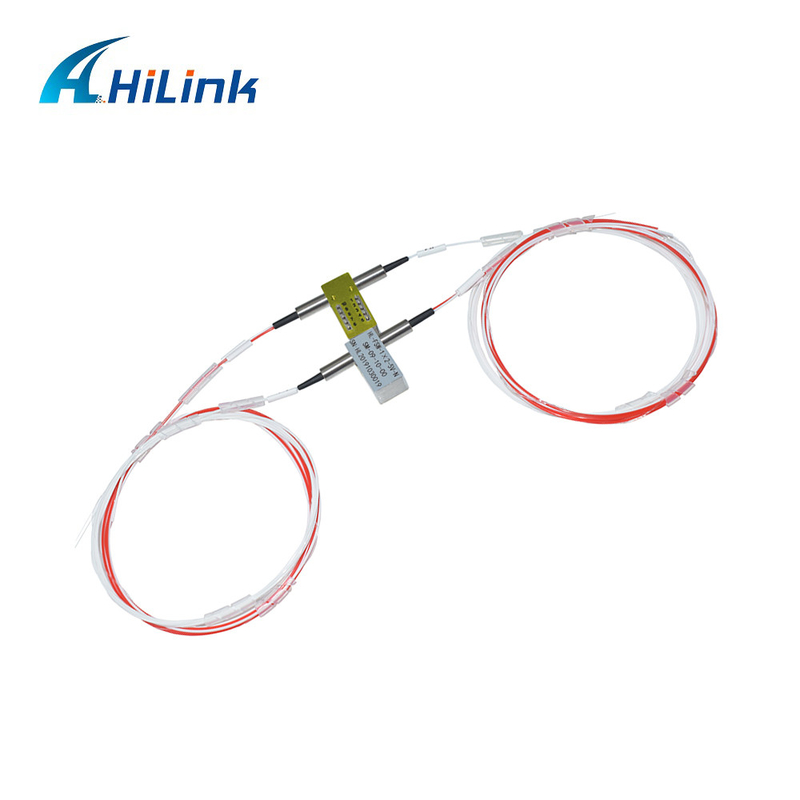

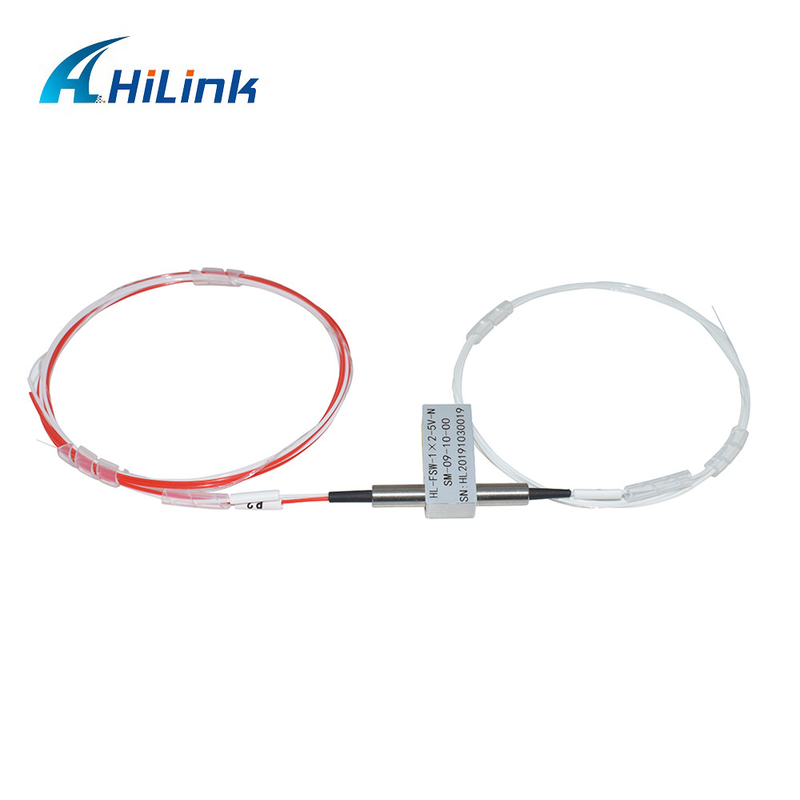

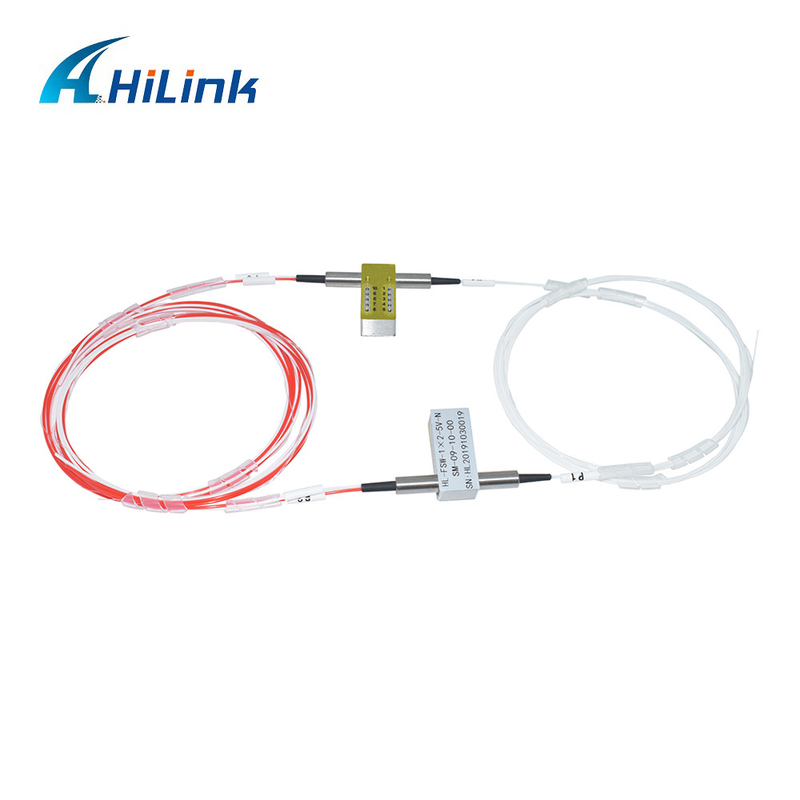

Details Images





1x2 FSW Mechanical Optical Switch SM 1310nm 1550nm 900um 0.5M Non Latching Without Connector 01x2 FSW Mechanical Optical Switch SM 1310nm 1550nm 900um 0.5M Non Latching Without Connector 11x2 FSW Mechanical Optical Switch SM 1310nm 1550nm 900um 0.5M Non Latching Without Connector 21x2 FSW Mechanical Optical Switch SM 1310nm 1550nm 900um 0.5M Non Latching Without Connector 3



Hilink Advantages



1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.





FAQ



1. Can I have a sample order? What is your MOQ?

Sample order is supported for testing the quality of goods. 1 piece is the MOQ.

Mixed samples are acceptable.



2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.



3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .



4. What is your payment term?

T/T, Western Union or Paypal.



5. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.



6. Could I use our own logo and label?

OEM service is provided.
