Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE Rohs |
| Model Number: | 100G -QSFP28 -BX-10KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pieces |
| Price: | Send Inquiry know latest price |
| Packaging Details: | Plastic box+Carton |
| Delivery Time: | 5-8 working day |
| Payment Terms: | T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance |
| Supply Ability: | 2000 Pieces/Week |
|
Detail Information |
|||
| Product Name: | 100G QSFP28 BIDI 10KM | Data Rate: | 100G Base |
|---|---|---|---|
| Reach: | 10km | Use: | Data Center |
| Fiber Connector: | Simplex LC | Operating Temperature: | 0 To 70℃ |
| High Light: | 100G BIDI QSFP28 Optical Transceiver,10KM QSFP28 Optical Transceiver,Simplex LC QSFP28 Optical Transceiver |
||
Product Description
New Product 100G QSFP28 WDM BIDI 10KM SMF Simplex LC Connector DDM 1271/1331 Commercial Temperature Transceiver Module
100G QSFP28 BIDI 10KM 1271/1331
Hilink 100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1271nm/RX1331nm with PAM4 signal for up to 10km transmission over single-mode fiber.
Features:
QSFP28 MSA package with simplex LC connector
Single +3.3V power supply
Supports 100GBASE-LR1-BIDI-10km
Lane signaling rate 106.25Gb/s with PAM4,111.8Gb/scompatible
EML Laser and PIN receiver
Operating case temperature: 0 to +70 °C
Product Details:
| Product Name | 100G QSFP28 BIDI 10KM |
| Wavelength | 1270/1330 |
| Data Rate | 100G |
| Connector | Simplex LC |
| Transmitter Type | EML |
| Receiver Type | PIN |
| DDM | Yes |
| TX Power | -1.4-4.5dBm |
| RX Sensititivy | <-6.1dBm |
| HS Code | 8517795000 |
| Warranty | 3 years |
| Temperature | 0-70 |

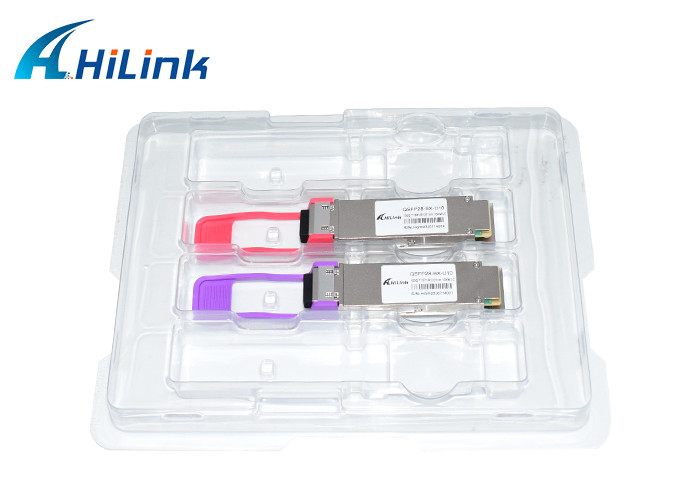

Real Photo Show
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
