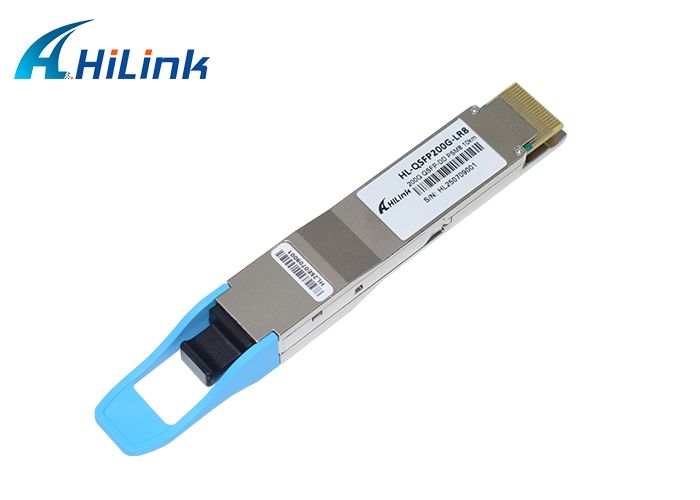

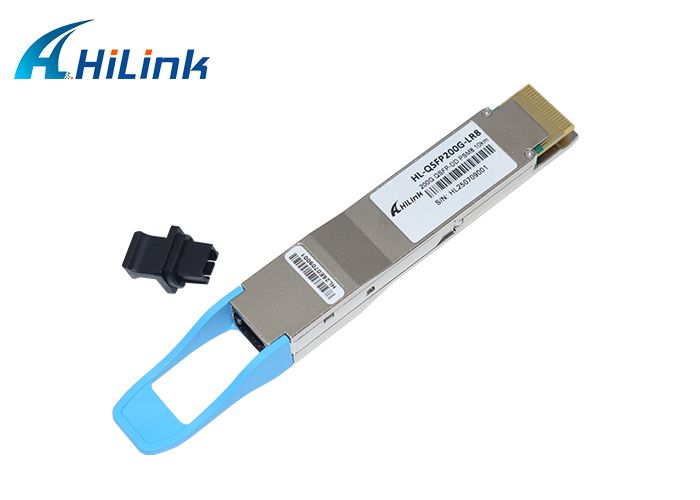

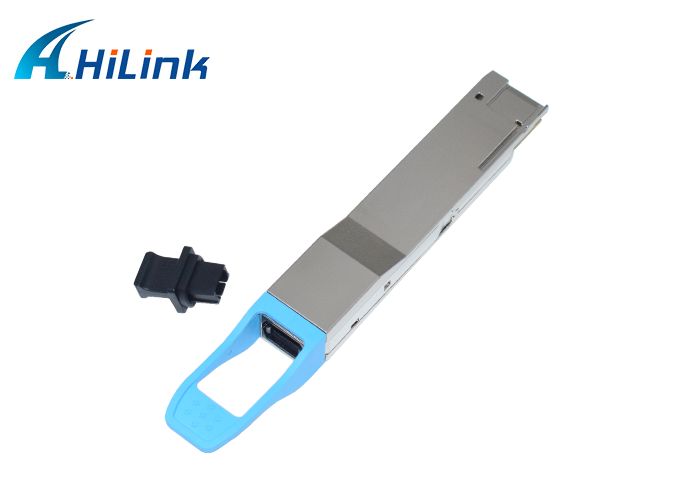

Name: 200G QSFP DD PSM8 10km Optical Transceiver(MPO16)
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL- 200G - DD - LR8
Price: 900.00 USD
Availability: InStock

Home > products > QSFP+ Transceiver >

200G QSFP DD PSM8 10km Optical Transceiver(MPO16)

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL- 200G - DD - LR8

Request A Quote

Product Details

Product Name:

200G QSFP DD LR8

Application:

200Gbase

Wavelength:

1310nm

Distance:

10KM

DDM/DOM:

Yes

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic bag, Retail box

Delivery Time

2-7 working days

Payment Terms

T/T, Western Union,Paypal

Supply Ability

10pcs/Week

100Gb/s QSFP28 ER4 Optical Transceiver Module 40KM Hot Pluggable Duplex LC LAN WDM APD SMF RoHS-6 compliant

Get Best Price

100Gb/s 100km QSFP28 Transceiver Hot Pluggable Duplex LC Connector LAN WDM EML TOSA SOA PIN SMF with FEC

Get Best Price

100Gb/s 80km QSFP28 Transceiver Hot Pluggable Duplex LC Connector LAN WDM EML TOSA SOA PIN SMF

Get Best Price

100Gb/s 60km QSFP28 Transceiver Hot Pluggable Duplex LC Connector EML+PIN with SOA Single mode DDM

Get Best Price

86-755-8317-6243

Contact Now

Product Description

200G QSFP DD PSM8 10km Optical Transceiver(MPO16)

Features

l 8 channels full-duplex transceiver modules

l Supports 8×25Gb/s aggregate bit rates

l Supports 8×10Gb/s aggregate bit rates if required

l 8 channels 1310nm DFB

l 8 channels PIN photo detector array

l Internal CDR circuits on both receiver and transmitter channels

l Support CDR bypass

l Low power consumption <6.5W

l Hot Pluggable QSFP DD form factor

l Up to 10km reach for G.652 SMF

l Single male MPO16(APC 8-degree) connector receptacle

l Operating case temperature 0°C to +70°C

l 3.3V power supply voltage

l RoHS compliant (lead free)

Applications

l 2×100G Ethernet links

l Infiniband DDR/EDR

l Datacenter and Enterprise networking

Description

The Technologies HL-QSFP200G-LR8 is a Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP DD PSM8 for 2×100 Gigabit Ethernet , Infiniband DDR/EDR Applications. This transceiver is a high performance module for data communication and interconnect applications. It integrates eight data lanes in each direction with 208 Gbps bandwidth. Each lane can operate at 26Gbps up to 10km over G.652 SMF. These modules are designed to operate over single mode fiber systems using a nominal wavelength of 1310nm. The electrical interface uses a 76 contact edge type connector. The optical interface uses an 16 fiber MTP (MPO) connector. This module incorporates Hilink Technologies proven circuit and Optical technology to provide reliable long life, high performance, and consistent service.

QSFP SERIES :

QSFP	Nominal Wavelength (nm)	Cable Type	Core Size (Microns)	Modal Bandwidth (MHz^km)^3	Cable Distance^*1	Power Consumption (W)	Pull Tab Color
QSFP-100G-SR4-S	850	MMF	50.0 50.0	2000 (OM3) 4700 (OM4)	70m 100m	3.5	Beige
QSFP-100G-LR4-S	1295, 1300, 1304, 1309	SMF	G.652	-	10km	3.5	Blue
QSFP-100G-CWDM4-S	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green
QSFP-100G-PSM4-S	1310	SMF	G.652	-	500m	3.5	Orange
QSFP-100G-SM-SR	1271, 1291, 1311, 1331	SMF	G.652	-	2km	3.5	Green
