Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch

Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch

4-port industrial Ethernet switch

10/100/1000BASE-TX Ethernet switch

1000Base-FX fiber media converter

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE RoHs

Model Number:

HL-Industrial Ethernet Switch

Contact Us
Request A Quote
Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch
Product Details
Product Name:
Industrial Ethernet Switch
4-port:
10/100/1000Base-Tx RJ-45
1-port:
1000Base-Fx Interface SC/FC/ST/SFP
Multi-Mode:
Up To 2km
Single-Mode:
Up To 20km/40km/60km/80km
Operating Temperature:
-30℃ To 70℃
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Normal Package Or OEM
Delivery Time
5-8 Working days
Payment Terms
L/C,T/T,Western Union
RELATED PRODUCTS
Good price Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch online

Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch

Get Best Price
Good price BIDI WDM Single Fiber Optic Media Converter 10/100M 1310/1550nm 20km SFP Optical Equipment online

BIDI WDM Single Fiber Optic Media Converter 10/100M 1310/1550nm 20km SFP Optical Equipment

Get Best Price
Good price WDM Equipment 8CH 100GHZ DWDM MUX Demux Dual Fiber Duplex LC UPC C Band ABS Box online

WDM Equipment 8CH 100GHZ DWDM MUX Demux Dual Fiber Duplex LC UPC C Band ABS Box

Get Best Price
Good price 80KM Max Industrial Ethernet Switch 2 Port 10/100/1000Base Ethernet 1 1000Base SC Fiber online

80KM Max Industrial Ethernet Switch 2 Port 10/100/1000Base Ethernet 1 1000Base SC Fiber

Get Best Price
CONTACT US
Contact Now
Product Description
Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch

The Hilink Industrial Ethernet Switch is a hardened 5-port switch designed for demanding industrial environments. It delivers non-blocking wire-speed performance with 4-port 10/100/1000BASE-TX RJ45 and 1-port 1000Base-FX connectivity. Packaged in an IP30 rugged steel alloy case with redundant power system, this compact unit is ideal for surveillance systems, control management, and wireless services in extreme temperatures ranging from -30℃ to 70℃.

Key Features
  • 4-port 10/100/1000Base-TX RJ-45 with auto-negotiation and auto-MDI/MDI-X function
  • 1-port 1000Base-FX interface (SC/FC/ST/SFP)
  • Multi-Mode support up to 2km
  • Single-Mode support up to 20km/40km/60km/80km
Industrial Specifications
  • 12V to 52V DC redundant power input
  • Operating temperature: -30℃ to 70℃
  • IP30 steel alloy enclosure
  • 6KV DC Ethernet ESD protection
  • 6KV DC EFT protection for power line
  • Free Fall, Shock and Vibration Stability
  • DIN-rail mounting design

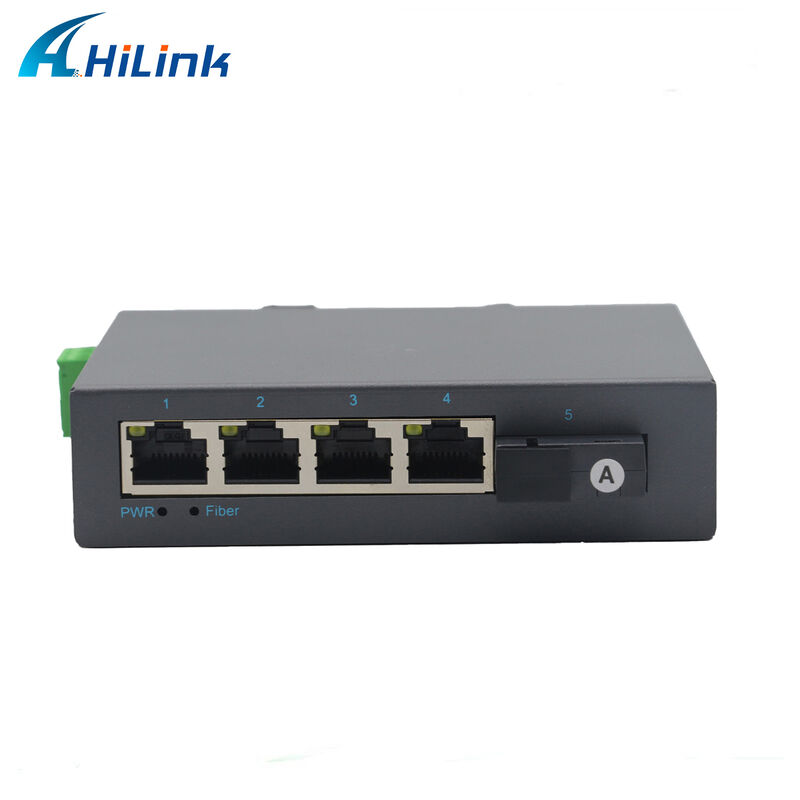

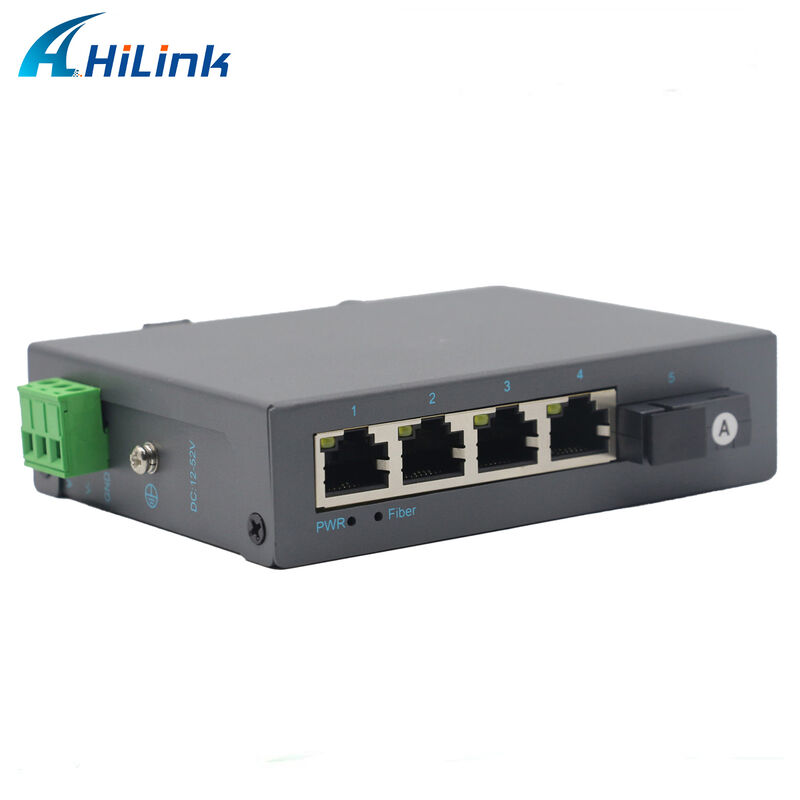

Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch 0 Hilink 4-port 10/100/1000BASE-TX+1000Base-FX Industrial Ethernet Switch 1
Custom Manufacturing

OEM/ODM orders are available upon request.

Quality Assurance

We guarantee that all advertised optical transceivers are brand new with new components and absolutely never use old or refurbished materials. All optical transceivers undergo functional testing and aging tests. We provide a 3-year warranty for all optical transceivers from the date of shipment.

Product Portfolio

We supply a comprehensive range of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM, and other special transceiver modules. Our products are compatible with most major brands. For detailed compatibility information, please contact us.

Frequently Asked Questions
Do you sell second-hand products?

No. All our products are brand new, and we never use second-hand components.

What payment terms do you accept?

We accept T/T, PayPal, and Western Union.

What shipping methods do you offer?

Our standard shipping methods include DHL, FedEx, TNT, UPS, and EMS. Delivery typically takes 3-7 days.

Do your products come with warranty?

Yes, we provide a 3-year warranty for all our products from the date of shipment.

What devices are your products compatible with?

Our products are compatible with mainstream network switches and equipment.

How to place an order?
  1. Confirm order details - provide the model and quantity you need
  2. Confirm Proforma Invoice - we'll arrange your order upon receipt of payment
  3. Confirm and ship goods - tracking number will be sent promptly
  4. We'll help track your shipment until safe delivery
