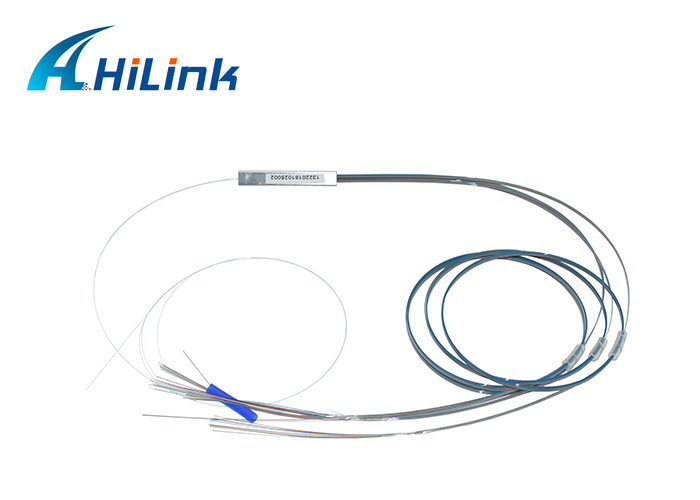

1:32 Single Mode PLC Optical Splitter Way , SC / APC Pigtailed PLC splitter
1, Hilink plc splitter
PLC (Planar Lightwave Circuit) splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability. GEZHI Photonics provides a various of 1×N and 2×N PLC splitters, including 1×2 to 1×64 and 2×2 to 2×64 ABS Box type fiber PLC splitters. They are all with superior optical performance, high stability and high reliability to meet various application requirements.
2.Feature
3.Application
4.Specification
PLC Splitter Module Specification
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 | |
| Operating Wavelength (nm) | 1260～1650 | |||||||
| Fiber Type | G657A1 or customer specified | |||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.2/7.4 | 10.3/10.7 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | 23.8/24.2 | |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.5 | 2.0 | 2.5 | |
| Polarization Dependent Loss(dB) Typical | 0.1 | 0.1 | 0.1 | 0.20 | 0.25 | 0.30 | 0.4 | |
| Polarization Dependent Loss(dB) Max. | 0.15 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 | |
| Return Loss (dB)(P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 | 55 | |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
|
Temperature Stability (-40～85 ℃)(dB) |
0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40～80 | |||||||
| Storage Temperature (℃) | -40～85 | |||||||
| Device Dimension (mm) | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 50×7×4 | 60×12×4 | N/A | |
| Module Dimension (mm) | 100×80×10 | 120×80×18 | 141×115×18 | |||||
| Mini-Module Dimension (mm) | 60×7×4 | 60×7×4 | 60×7×4 | 60×12×4 | 80×20×6 | 100×40×6 | N/A |
|
Hilink Certification and Compliance
GR-1209-CORE Requirements for Passive Optical Components.
GR-1221-CORE Reliability Assurance Requiremnts for Passive Optical Components.
GR-326-CORE Requirements for Single Mode Optical Connectors and Jumpers Assemblies.
TIA-604 Fiber Optic Connector Intermateability Standard.
ROHS Directive on Restriction of Hazardous Substances
