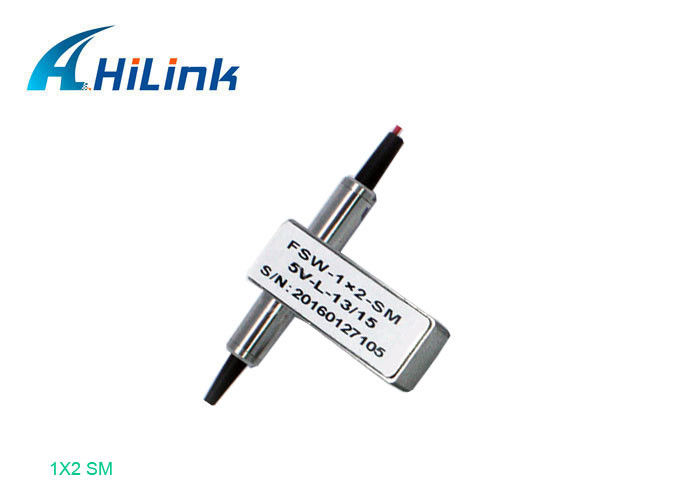

1x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability

1x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability

Product Details:

Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-SW1X2

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box
Delivery Time: 1-4 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 5000pcs/week
Get Best Price Contact Now

Detail Information

Operating Wavelength: 1260-1620nm Wavelength: 1310nm&1550nm
Connector: LC/SC Operating Temperature: -20~70℃
Warranty: 3 Years CE RoHS: Compliant
High Light:

optomechanical switch

,

fiber bypass switch

Product Description

1x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range High Reliability



General

The 1x2 Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 2 output fibers. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost. This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.



Features

♦ Low Insertion loss

♦ Wide Wavelength Range

♦ Low Crosstalk

♦ High Stability, High Reliability

♦ Epoxy-free on Optical Path

♦ Latching and Non-latching





♦ Channel Blocking

♦ Configurable Add/Drop

♦ System Monitoring

♦ Single mode or Multimode optional





1X2 Applications
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection

Instrumentation, testing, and measurement



Optical Route



Status One Status Two



Smallest Fiber Optical Switch 1x2 Fiber Optical Switch For System Monitoring



Smallest Fiber Optical Switch 1x2 Fiber Optical Switch For System Monitoring





1x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability 2



Specification Performance

1x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability 3



Order Information

Mode Wavelength Voltage Type Control Type Fiber Type Fiber Diameter Fiber Length Connector
S=SM
M=MM
85=850nm
13=1310nm
15=1550nm
13/15=1310/1550nm
X=Others
3=3V
5=5V
L=Latching
N=Non- Latching
5=50/125
6=62.5/125
9=9/125
X=Others
25=250um
90=900um
20=2.0mm
30=3.0mm
X=Others
1=1m
2=2m
X=Others
0=None
1=FC/PC
2=FC/APC
3=SC/PC
4=SC/APC
5=ST/PC
6=ST/APC
7=LC/PC
8=LC/APC


1x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability 41x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability 51x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability 6

1x2 Bidirectional Mechanical Optical Switch Wide Wavelength Range with High Reliability 7
