Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HILINK |
Certification: | CE FCC Rohs |
Model Number: | HL-PLC-1*8 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1pcs |
Price: | Negotiable |
Packaging Details: | box & carton or customized package |
Delivery Time: | 2-6 working days |
Payment Terms: | Western Union, MoneyGram,Paypal |
Supply Ability: | 5000pcs/week |
Detail Information |
|||
Product Name: | 1*8 PLC Splitter | Operating Wavelength: | 1270nm~1610nm |
---|---|---|---|
Option Channels: | 2ch/4ch/8ch/16ch/32ch/64ch | Connector: | SC FC LC ST PC |
Package: | ABS Box | Logo: | Can Be Customized |
RoHS: | Compliant | Warranty: | 3 Years |
High Light: | fiber optic splitter,fiber PLC splitter |
Product Description

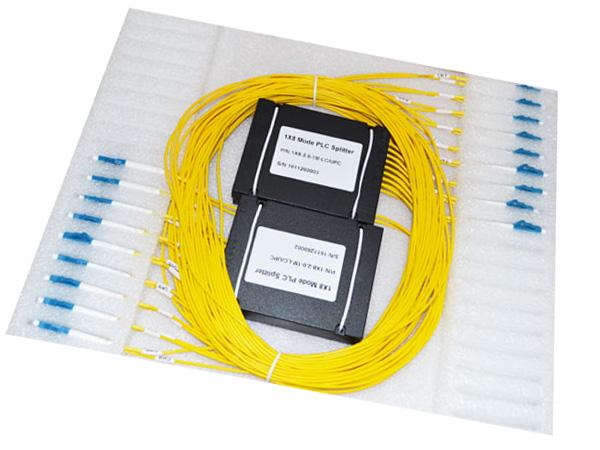

Low Excess Loss PLC Optical Splitter High Reliability For FTTH ODN Box
Feature
Low Insertion loss
Low PDL
Low excess loss
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1260-1650nm
Wide Operating Temperature: -40°C - 85°C
High Reliability and Stability
Standard type, compact size
Application
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Specification
Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
Operating Wavelength (nm) | 1260~1650 | ||||
Fiber Type | SMF-28e or customer specified | ||||
Insertion Loss (dB)(S/P Grade) | 4.2 | 7.6 | 11.0 | 14.5 | 17.5 |
Loss Uniformity (dB) | 0.8 | 1.5 | 1.5 | 2.0 | 2.5 |
Return Loss (dB) (S/P Grade) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
Directivity (dB) | 55 | 55 | 55 | 55 | 55 |
Wavelength Dependent Loss(dB) | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Stability(-40~85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Operating Temperature (°C) | -40~85 | ||||
Storage Temperature (°C) | -40~85 | ||||
Module Dimension (mm) (L×W×H) | 100×80×10 | 100×80×10 | 120×80×18 | 140×115×18 | 140×115×18 |
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector
FAQ
Q: Do you sell second-hand products?
A: No. All our products are brand new,we never use second-hand components.
Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.
Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
Guarantee
›& Brand new.
›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).
Technician support
We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
