Place of Origin:
China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-SW1X2
Video

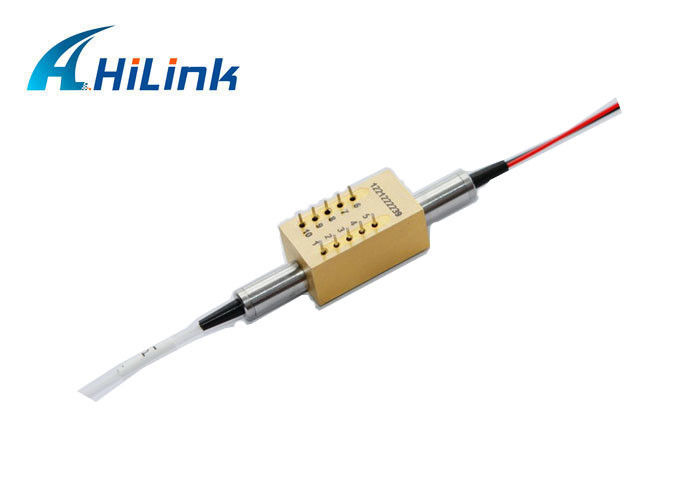

FC Connectors Micro Fiber 1x2 Mechanical Optical Switch SMF For System Monitoring
General
The 1x2 Micro Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 1 incoming optical signals into 2 output fibers. The switch has integrated electrical position sensors.Based on thin film filter technology that provides a robust method of altering the light patch, this series of products has a drastically simplified platform configuration offering high reliability and low production cost.
This novel design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as an unmatched low cost.
Features
|
♦ Low Insertion loss ♦ Wide Wavelength Range ♦ Low Crosstalk ♦ High Stability, High Reliability ♦ Epoxy-free on Optical Path ♦ Latching and Non-latching |
♦ Channel Blocking ♦ Configurable Add/Drop ♦ System Monitoring ♦ Single mode or Multimode optional |
1X2 Applications
Optical Network
Protection/Restoration
Optical Singnal Routing
Configurable Optical Add/Drop
Transmitter and receiver protection
Instrumentation, testing, and measurement
| Parameters | FSW-1×2-SM | ||
| Wavelength Range | nm | 850±40 / 1300±40 | 1260~1650 |
| Operating Wavelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.5 Max:1.0 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | V | 3.0 or 5.0 | |
| Lifetime | Time | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20~+80 | |
| Storage Temperature | ℃ | -40~+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27×(W)12.0×(H)8.2 | |
Optical Route
PIN Define
| Control Model | Optical Path | Electric Drive | Status Sensor | ||||||
| 1×2 | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 | |
| Latching | P1-P2 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P2 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
Order Information
| Mode | Wavelength | Voltage Type | Control Type | Fiber Type | Fiber Diameter | Fiber Length | Connector |
| S=SM M=MM |
85=850nm 13=1310nm 15=1550nm 13/15=1310/1550nm X=Others |
3=3V 5=5V |
L=Latching N=Non- Latching |
5=50/125 6=62.5/125 9=9/125 X=Others |
25=250um 90=900um 20=2.0mm 30=3.0mm X=Others |
1=1m 2=2m X=Others |
0=None 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=ST/PC 6=ST/APC 7=LC/PC 8=LC/APC |
