400G Transponder LC/UPC C21-C60 40CH DWDM Mux Demux AAWG Athermal AWG Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DWDM Mux/Demux-xx
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton box, Retail box, 19 1u racks, by required
Delivery Time: 1-5 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000 pcs per Week
  • Detail Information
  • Product Description

Detail Information

Channel: 40 Operating Wavelength: C21-CH60
Com Port: Duplex Connector: LC/UPC
Opration Temperature: -20~70℃ Warranty: 3 Years
Package: 19" 1U Rack Mount
High Light:

dwdm multiplexer


dwdm filter

Product Description

100GHz DWDM AAWG Module

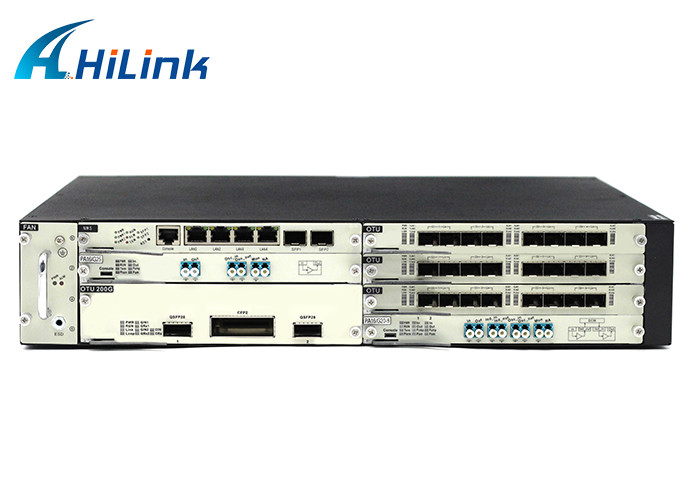

400G Transponder 1U Duplex Flat-Top Solution LC/UPC C21-C60 40CH DWDM Mux Demux AAWG Module

  100GHz C Band DWDM AAWG (Athermal Arrayed Waveguide Grating) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.

DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.


 Ø Athermal design operates over operating temperature range
 Ø Large channel number
 Ø Compact size
 Ø High stability and reliability
 Ø Low insertion loss, high isolation increase system margin

Ø DWDM Network

 Ø DWDM transmission
Ø Metro and long haul network

Ø Telcordia GR-1209-CORE-2001
Ø Telcordia GR-1221-CORE-1999
Ø ITU-T G.694.1

100GHz AAWG Module


Parameter Unit Gaussian Flat-Top
Channel Wavelength (nm) nm ITU 100 GHz Grid
Number of channels - 16,32,40,48 or other
Wavelength Accuracy (nm) nm ± 0.05
Insertion Loss (dB) dB < 4.5 < 6.0
Channel Passband (@-1dB bandwidth) nm > 0.2 > 0.3
Channel Passband (@-3dB bandwidth) nm > 0.4 > 0.5
Total Crosstalk(dB) dB > 20 > 23
Channel Ripple (dB) dB < 0.75
Isolation(dB) Adjacent dB > 25
Non-adjacent dB > 30
Max. Uniformity dB 1.2
Chromatic Dispersion ps/nm -20~+20
Max. Polarization Dependent Loss dB 0.5
Max. Polarization Mode Dispersion ps 0.5
Min. Directivity dB > 50
Min. Return Loss dB > 45
Maximum Power Handling mW 300
Fiber type - SMF-28e or other
Operating Temperature °C -5 ~+70
Storage Temperature °C -40 ~+85
Dimension mm L120 x W70 x H12
19" 1U Rack mount:431.5*250*44
