Optic Fiber 10M 100M 20KM Media Converter Single Mode AC220V External Power

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-MC-10/100BASE-SF
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T, Western Union,Paypal , AliExpress , Alipay ,etc.
Supply Ability: 3000/pieces/pair /month
  • Detail Information
  • Product Description

Detail Information

Product Name: 10 / 100 BASE Media Converter Wavelength: 1310/1550nm
Data Rate: 10 / 100 BASE Auto - Negotiated Connector: SC Connector
Fiber Type: Single Fiber Distance: 20km
High Light:

optical media converter

,

internet media converter

Product Description

Optic Fiber 10M 100M 20KM Media Converter Single Mode AC220V External Power







DESCRIPTION:



10/100Mbps Single Fiber Media Converter provide an easy and economical solution to upgrade a copper based network to fiber optic to extend the signal reach. WDM technology make single mode fiber max reach to 100km via single fiber.Their plug-and-play design enables a quick and easy installation.It can be used as standalone with their external power supply, or mounted in 14 slot media converter chassis with centralized power supply.





FEATURERS :

  • Half or full duplex auto-negotiation.
  • 10/100 Mbps auto-negotiation for copper port.
  • Auto MDI/MDI-X on copper port.
  • Plug-and-play installation.
  • Extend network distance up to 100 km.
  • SC/FC/ST fiber port optional
  • External power supply.
  • 6 Easy-to-view LED Indicators
  • Build in 14slot media converter chassis.



APPLICATION :

  • Local Area Networks (LAN).
  • Enterprise Networks.
  • Campus Networks.
  • Fiber to the Building (FTTB).
  • Fiber to the Curb (FTTC).
  • Point-to-point fiber networks.

MORE SPECIFICATION :



Protocol Standard IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX
Interface Rj45 Port 10/100/1000Mbps, Auto MDI/MDI-X
UTP/STP Cat. 3, 4, 5 Cable EIA/TIA-568 100-ohm(100m)
Fiber Ports 1000Mbps, 1000Base-SX/LX/ZX (SC/ST/FC connector)
Multi mode: 550m, Single mode: 0~100km
LED Indicators 1000M,100M, FX/ACT, TP/ACT, FDX,PWR
Performance Data Transfer 10Mbps,100Mbps,1000Mbps
Environmental Temperature Operation: 0°C ~55°C; Store: -20°C ~ 80°C
Humidity 5% ~ 95% (Non-condensing)
Power Supply Input Voltage AC100-240V; DC12/-48V
Output Voltage 5V/2A
Consumption 1~5W
Mechanical Installation Rack mounting or desktop
Dimensions 95mm*70mm*25mm
Gross weight 0.4kg/pcs
Others Certificate FCC, CE,RoHS
Warranty 3-Year Limited Warranty



Distance 20km 40km 60km 80km 100km
Connector SC SC SC SC SC
Fiber Type Single mode Single mode Single mode Single mode Single mode
Wavelength 1310 1550 1310 1550 1310 1550 1490 1550 1490 1550
Max TX PWR(dBm) -10 -10 -4 -9 -5 -5 -1 -1 0 0
Sensitivity(dBm) ≤-24 ≤-24 ≤-24 ≤-24 ≤-25 ≤-25 ≤-26 ≤-26 ≤-28 ≤-28
Link Budget(dBm) ≥29 ≥24 ≥29 ≥24 35 24 37 26 37 26

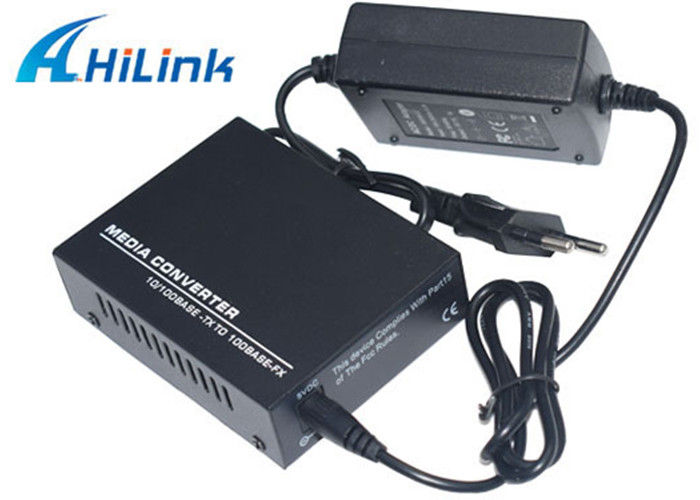

Optic Fiber 10M 100M 20KM Media Converter Single Mode AC220V External Power 0Optic Fiber 10M 100M 20KM Media Converter Single Mode AC220V External Power 1





SHIPMENT & DELIVERY :


1.  International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2.  Payment: T / T, Western Union, Paypal and so on.

3.  Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
