| Place of Origin: | China |
| Brand Name: | Hilink |
| Certification: | CE, Rohs, FCC ul |
| Model Number: | SFP28-25GB-PC3M |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Poly bag |
| Delivery Time: | 1-3 Days |
| Payment Terms: | T/T, Western Union |
| Cable Type: | Passive Copper Cable | Wire AWG: | 30AWG |
|---|---|---|---|
| Cable Length: | 3m | Temperature: | 0 To 70°C |
| HTS-Harmonized Code: | 8544700000 | Connector: | SFP28 To SFP28 |
| Max Data Rate: | 25G |

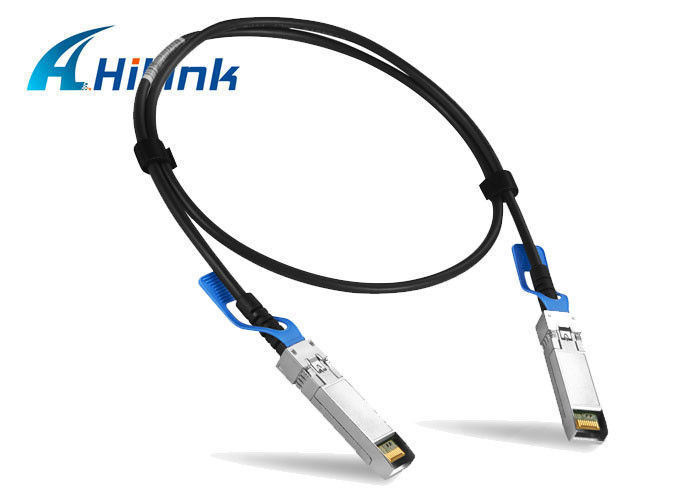

Cisco Compatible 25G SFP28 DAC Direct Attach Copper Cable 3M AWG30 DAC Cables
General Description
SFP28 Direct Attach Cables are compliant with SFF-8432 and SFF-8402 specifications. Various choices of wire gauge are available from 30 to 26 AWG with various choices of cable length (up to 5m).
Product Description
• Up to 25.88243 Gbps data rate
• Up to 5 meter transmission
• Hot-pluggable SFP 20PIN footprint
• Improved Pluggable Form Factor(IPF)
compliant for enhanced EMI/EMC
Performance
• Compatible to SFP28 MSA
• Compatible to SFF-8402 and SFF-8432
• Temperature Range: 0~ 70 °C
• RoHS Compatible
Features
| Cisco Genuine | SFP28-25GB-CxxM | Vendor Name | Hilink |
| Connector Type | SFP28 to SFP28 | Max Data Rate | 25Gbps |
| Cable Type | Passive Copper Cable | Wire AWG | 30AWG |
| Cable Length | 0.5~5meter | Jacket Material | PVC |
| Temperature | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8544700000 |
Applications
• The SFP28 passive cable assemblies are high performance, cost effective I/O solutions for 25G Ethernet. SFP28 copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget
The 25G ~100G series Optics
| 25G SFP28 SR4 | 25Gbps 850nm SFP28 transceiver 100M |
| QSFP-40G-SR4 | QSFP-SR4, MMF, 850nm, 150M, MPO |
| QSFP-40G-CSR4 | QSFP+, MMF, 850nm, 300M (OM3) - MPO |
| QSFP-40G-LR4 | QSFP-LR4, SMF, 1270nm~1330nm,15KM LC |
| QSFP-40G-PSM-IR4 | QSFP+-IR4,SMF ,1310NM 2KM MPO |
| 40G QSFP+ PSM 10KM | QSFP+-LR4,SMF ,1310NM 10KM MPO |
| 100G QSFP28 SR4 | 100GBASE-SR4 QSFP28 |
| QSFP28 CWDM4 2KM | 100G QSFP28 CWDM4 2KM 1271~1331 |
| QSFP28 CWDM4 500M | 100G QSFP28 CWDM4 500 1271~1331 |
| QSFP28 PSM4 1310nm 2km | QSFP28 PSM4 1310nm 2km MPO SMF |
| 25G SFP28 AOC 1M | 25Gbps 850nm Multimode SFP28 AOC 1~100M |
| 25G SFP28 DAC SFF-8402 | 25G SFP28 to SFP28 DAC 1m 3m 5meter |
| 40G QSFP+ AOC 1M | QSFP-AOC Active 40Gbase 1~100meter |
| 40G QSFP+ DAC 1M | QSFP SFF8436 Passive Cable 1~5M |
| 100G QSFP28 TO QSFP28 DAC | 1M 2M 3M 5M SFF-8665 100G QSFP28 Passive |
| 100G QSFP28-SR4 AOC 1M | 100GBASE-SR4 QSFP28 AOC Fiber |
Item Photo related
