Hilink Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type High Isolation New Condition

Hilink Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type High Isolation New Condition

    • Hilink Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type High Isolation New Condition
    • Hilink Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type High Isolation New Condition
  • Hilink Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type High Isolation New Condition

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE, ROHS, TelcordiaGR-1221
    Model Number: HL-DWDM - MUX/DEMUX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Payment Terms: T/T, Western Union
    Supply Ability: 100pcs/week
    Contact Now
    Detailed Product Description
    Condition: New Channel: 2x4ch
    Logo: Can Be Customized Fiber Type: Dual Fiber
    Operating Temperature: -40~85°C Customerized: Yes



    Hilink optical WDM equipment DWDM MUX/DEMUX 2X4CH Dual fiber LGX type







    Features:

    Very Low Insertion Loss

    High Isolation

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength:C17~C63

    Optical Path Epoxy Free

    Telcordia 1221 Compliant

    Wide Operating Temperature: From -40℃ to 85℃

    High Reliability and Stability







    Applications:


    DWDM System

    PON Networks
    CATV Links
    With DWDM SFP , DWDM XFP for a solution







    Compliance:
    Telcordia GR-1209-CORE-2001
    Telcordia GR-1221-CORE-1999
    ITU-T G.694.1
    RoHS




    1xN DWDM Mux/Demux Module

    Parameters
    Channel Space (GHz) 100 200
    Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
    Center Wavelength (nm) ITU Grid
    Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
    Channel Passband (@-0.5dB) (nm) 0.22 0.5
    Fiber Type SMF-28e with 900um loose tube or customer specified
    IL (dB) 1 1.5 2.2 1.7 2.9 3.8
    Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
    Isolation (dB) Adjacent Channel 25 28
    Non-Adjacent Channel 40
    PDL (dB) 0.2
    PMD (ps) 0.1
    RL (dB) 45
    Directivity (dB) 50
    Maximum Optical Power (mw) 300
    Operating Temperature (°C) -40~85
    Storage Temperature (°C) -40~85
    BOX Package (mm) 100*80*10 or 140*115*18
    LGX Package 1U,2U
    19’’ Rack mount Package 1U

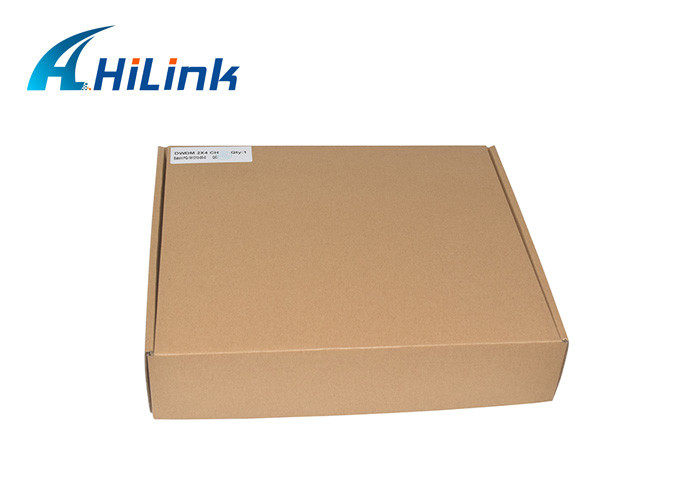

    Product Pic:



    Hilink Optical DWDM Mux Demux 2X4CH Dual Fiber LGX Type High Isolation New Condition
     Technician support:

    We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
    After-sales service
    We have after service for 24 hours, promises to supply technical service or guide in anytime.
    Our co-workers will be response clients's requirement in 12 hours after emergency happened.




    Guarantee:
    ›& Brand new.
    ›& OEM/ODM is available.
    ›& 100% through quality test and aging test.
    ›& 3 years warranty (From the date of shipment).




    Technician support:

    We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
    After-sales service
    We have after service for 24 hours, promises to supply technical service or guide in anytime.
    Our co-workers will be response clients's requirement in 12 hours after emergency happened.
