Shenzhen HiLink Technology Co.,Ltd.

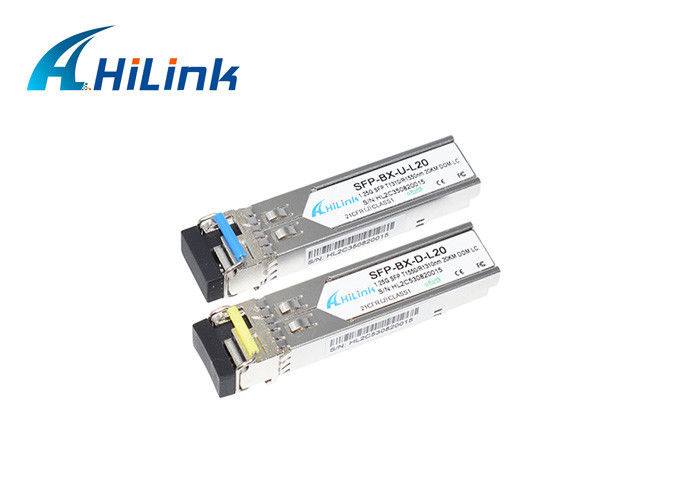

Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: 1.25G-BIDI-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging 10pcs/tray
Payment Terms: T/T, Western Union
Supply Ability: 500/week
  • Detail Information
  • Product Description

Detail Information

Data Rate: 1.25G Distance: 20KM
Connector: SC/LC Warranty: 3 Years
Brand: Hilink/customized
High Light:

1.25G BiDi Transceiver Module

,

1550nm BiDi Transceiver Module

,

20Km Sfp Fiber Optic Transceiver

Product Description

Hilink Wdm 1000baes Single fiber LC Type 20Km SFP 1310/1550nm 1.25G BiDi Modules Compatible



WDM 1.25G SFP 20Km



Tx: 1310nm/Rx: 1550nm BIDI sfp Transceiver

Tx: 1550nm/Rx: 1310nm BIDI sfp Transceiver



Features:
Up to 1.25 Gb/s bi-directional data links
Hot-pluggable SFP footprint
1310nm FP Transmitter and 1550 PIN Receiver

1550 FP Transmitter and 1310 PIN Receiver

Single LC connector
Low power dissipation
Metal enclosure, for lower EMI
Up to 3km point to point transmission
Single 3.3V power supply

Compliant with SFP MSA Specification

Average Output Power: -14~-8dBm

Receiver Sensitivity: -22dBm

Operating temperature range: 0°C to 70°C



Applications:

Gigabit Ethernet
Fiber Channel
WDM Application







B/D Transceiver Series:

GLC-BX-D20 SC 1.25G DFB Tx1490nm/Rx1310nm 20km LC/SC BIDI
GLC-BX-U20 SC 1.25G FP Tx1310nm/Rx1490nm 20km LC/SC BIDI
GLC-BX-U40 SC 1.25G DFB Tx1310nm/Rx1490nm 40km LC/SC BIDI
GLC-BX-D40 SC 1.25G DFB Tx1490nm/Rx1310nm 40km LC/SC BIDI
GLC-BX-U70 SC 1.25G DFB Tx1490nm/Rx1550nm 70km LC/SC BIDI
GLC-BX-D70 SC 1.25G DFB Tx1550nm/Rx1490nm 70km LC/SC BIDI
GLC-BX-U80 1.25G DFB Tx1490nm/Rx1550nm 80km LC/SC BIDI
GLC-BX-D80 1.25G DFB Tx1550nm/Rx1490nm 80km LC/SC BIDI
GLC-BX-U120 1.25G DFB Tx1490nm/Rx1550nm 120km LC/SC BIDI
GLC-BX-D120 1.25G DFB Tx1550nm/Rx1490nm 120km LC/SC BIDI
GLC-FE-100BX-U 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 10km
GLC-FE-100BX-D 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 10km
GLC-FE-100BX-U20 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 20km
GLC-FE-100BX-D20 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 20km
GLC-FE-100BX-U40 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 40km
GLC-FE-100BX-D40 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 40km
GLC-FE-100BX-U80 100BASE-BXU SFP Tx1310nm/Rx1550nm LC/SC 80km
GLC-FE-100BX-D80 100BASE-BXD SFP Tx1510nm/Rx1310nm LC/SC 80km

Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module 0

Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module 1

Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module 2Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module 3Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module 4



Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module 5

Hilink Wdm 20Km SFP 1310/1550nm 1.25G BiDi Transceiver Module 6
