Place of Origin:
China
Brand Name:
Hilink
Certification:
CE FCC Rohs
Model Number:
HL-OTN
Video
DWDM / CWDM Mux Demux - Wavelength Division Multiplexer

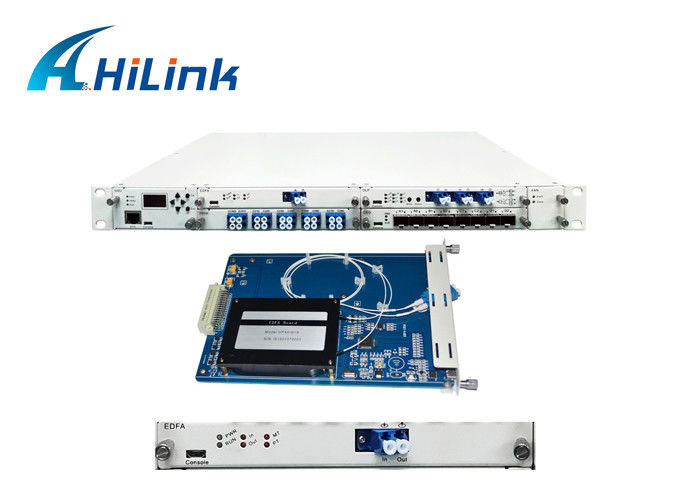

EDFA - Erbium Doped Fiber Amplifier
OEO / OTU - Optical Transponder Unit
DCM - Fiber Optical Dispersion Compensation Moulde
OADM - Optical Add-Drop Multiplexer
VOA - Variable Optical Attenuator, etc.
LANs and MANs
DWDM Systems
Optical distributed system
Fiber optic link amplification
Long-Haul transmitting system
Test and measurement systems
Military and industrial applications
Rack mount optical amplify system
Loss and Dispersion Compensation for Optical Fiber Networks
|
Parameters
|
Unit
|
Specifications
|
|
|
Environmental parameter
|
Working temperature
|
℃
|
-10~ 60℃
|
|
Storage temperature
|
℃
|
-20℃~ 75℃
|
|
|
Relative temperature
|
℃
|
5% ~ 95% No condensation
|
|
|
size
|
1U
|
mm
|
482.6W×300D×44.5H
|
|
2U
|
mm
|
482.6W×300D×86H
|
|
|

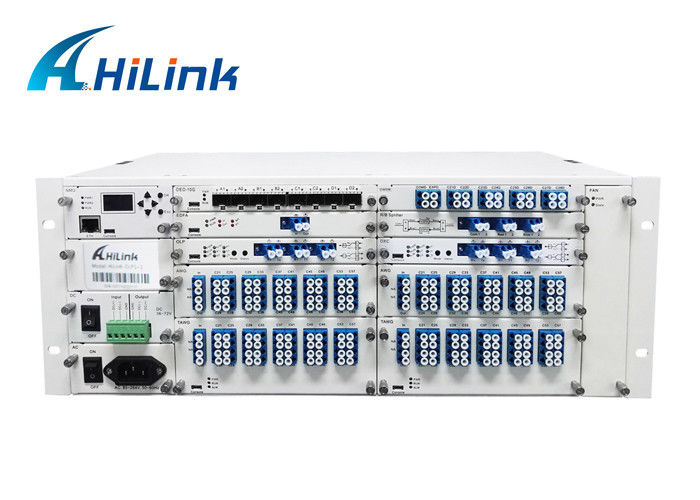

4U
|
mm
|
482.6W×220D×176H
|
|
|
Power Supply
|
AC
|
V
|
85~264,50~60hz
|
|
DC
|
V
|
36~72
|
|
|
Consumption
|
1U
|
W
|
< 50(Max)
|
|
2U
|
W
|
<100(Max)
|
|
|
4U
|
W
|
<200(Max)
|
|
