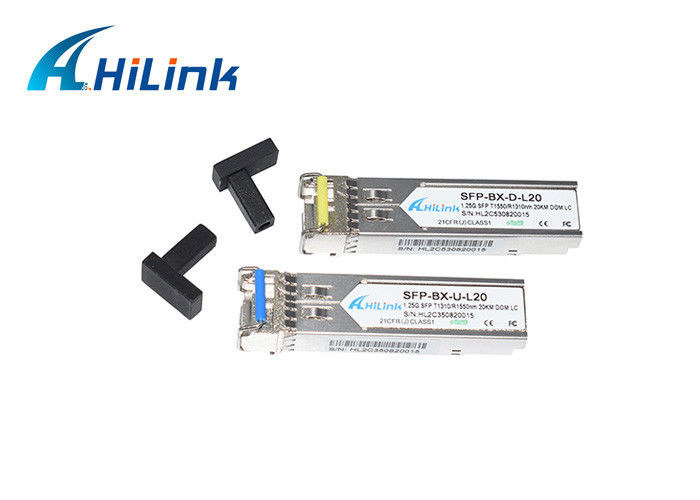

1550nm WDM 80km Fiber Optical SFP Transceiver 1.25G 1000Base

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-SFP-BX-20
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging 10pcs/tray
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000pcs per day
  • Detail Information
  • Product Description

Detail Information

Data Rate: 1.25G Wavelength: 1310/1550nm
Distance: 20km/40km/60km/80km Type: Bidi SFP
Operating Temperature: 0-70 Connector: SC / LC
High Light:

WDM Fiber Optical SFP Transceiver

,

80km Fiber Optical SFP Transceiver

,

1550nm Ethernet Sfp Transceiver

Product Description

1.25G 1000Base 1310/1550nm WDM 20km/40km/60km/80km Fiber Optical SFP Transceiver Module



Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0. They are RoHS compliant and lead-free.

It primarily enables bandwidth 1.25G optical links over single-mode fiber terminated with LC/SC simplex connectors and can be used in commercial temperature environment for interoperability with TTL Logic Interface.



Features:

1.25Gbps Data transfer rate
Tx1310nm/Rx1550nm and Tx1550nm/Rx1310nm BiDi SFP
Distance up to 80km
Single 3.3V Power Supply and TTL Logic Interface
Hot-Pluggable SFP
Simplex SC/LC (Optional)
Compliant with SFP MSA
Digital Diagnostic Monitoring
Operating Case Temperature: 0-70 Temp




PARAMETER

Modle GLC-BX-U Vendor Name Hilink
Form Type SFP Max Data Rate 1.25G
Wavelength 1310nm/1550nm Max Cable Distance 20-80km
Interface LC/SC Type BIDI
Cable Type SMF DOM Support Yes



APPLICATIONS



Switch to Switch Interface

Gigabit Ethernet

Switched Backplane Applications

Router/Server Interface

Other Optical Links



Hilink BiDi Transceiver series

155M/622M BiDi SFP LC/SC 155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDMl
4/2/1G BIDI SFP LC/SC 4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM
1.25G 40km CWDM BiDi SFP 1.25G 40km DDM LC CWDM BiDi SFP (60nm Channel Spacing)
10G SFP BiDi Single core SFP+ BiDi 1270 20km SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 20km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 40km SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 40km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 60km SFP+ BiDi 60km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 60km SFP+ BiDi 60km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1490 80km SFP+ BiDi 80km Tx1490nm/Rx1550nm LC
SFP+ BiDi 1550 80km SFP+ BiDi 80km Tx1550nm/Rx1490nm LC
10G XFP BiDi Single core XFP BiDi 1270 20km XFP BiDi 20km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 20km XFP BiDi 20km Tx1330nm/Rx1270nm LC
XFP BiDi 1270 40km XFP BiDi 40km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 40km XFP BiDi 40km Tx1330nm/Rx1270nm LC
XFP BiDi 1270 60km XFP BiDi 60km Tx1270nm/Rx1330nm LC
XFP BiDi 1330 60km XFP BiDi 60km Tx1330nm/Rx1270nm LC
XFP BiDi 1490 80km XFP BiDi 80km Tx1490nm/Rx1550nm LC
XFP BiDi 1550 80km XFP BiDi 80km Tx1550nm/Rx1490nm LC

100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.





SHIPPING



Hilink can provide the both ourselves forwarder and customer appointed forwarder in the way of Air, Sea, Road. Which is carrier by FedEx, DHL, UPS, TNT and EMS. Your items are probably shipped at the same day (some transceivers can be delivered within 20 minutes). If we have no stocks in our warehouse, the ship will be delayed for 1-2 days. DHL will take 2-4 business days for delivery and FedEx just needs 1-3 business days.
