10G DWDM Tunable XFP SFP+ Transceiver Module 80km Tunable EML APD

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: DW-XFP-L80
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging, 10pcs/ tray
Delivery Time: 3-6 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/ week
  • Detail Information
  • Product Description

Detail Information

Form Type: XFP Wavelength: Tunable Wavelength
Data Rate: 10Gbs Optical Components: Eml Dwdm
Cable Type: SMF DOM Support: Yes
TX Power: 0-4dBm Temperature Range: 0 To 70°C
Distance: 80km
High Light:

10G DWDM SFP+ Transceiver Module

,

XFP SFP+ Transceiver Module

,

EML APD Optical Transceiver Module

Product Description

Hilink DWDM SFP/SFP+ optical transceiver series support 1.25G -10Gbits/s and 40Km/80km/120km transmission. It adopts standard LC interface and standard SFP/SFP+ metal case and has good EMI/ESD performance.

Hilink DWDM SFP/SFP+ optical transceiver series conform to the international standards (ITU-T and IEEE), and strictly follow the MSA

(Multi-Source Protocol), which are compatible with the interfaces of all brands optical equipment manufacturers.

They are widely used in optical transport network (DWDM/OTN equipment), 5G back haul and front haul network, and cloudy, data center interconnection.



Features



• Hot-pluggable XFP footprint
• Multi-Protocol,supports 9.95Gb/s to 11.3Gb/s bit rates
• Monolithically integrated full C-band tunable transmitter
• 50GHz ITU channel spacing with the integrated wavelength locker
• C-band-tunable Laser and high-performance APD receiver
• Maximum link length of 80km
• Full Duplex LC connector
• Supports Line-side and XFI loopback
• No Reference Clock required
• Digital diagnostic monitoring support
• Standard bail release mechanism
• Power dissipation <3.5W
• Commercial operating temperature: 0°C to 70°C
• RoHS compliant and lead-free




Applications

DWDM upto 10GBASE-ZR/ZW (with/without FEC)

10G Fiber Channel (with/without FEC)

DWDM PON network



P/N

HL-XFP-DW-L80

Datarate

10G/ps

Wavelenth

C Band Tunable DWDM XFP

Distance

80KM

Transmitter

EML

Receiver

APD

Media

SMF

DDM/DOM

YES

Connector

LC

Application

Datacom 10G Ethernet/ 2x 4x 8x FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Hilink/Neuter, OEM





Spectral Attenuation Measurement

WDM systems are divided into different wavelength patterns, conventional/coarse (CWDM) and dense (DWDM). Conventional WDM systems provide up to 8 channels in the 3rd transmission window (C-Band) of silica fibers around 1550nm.

Dense wavelength division multiplexing (DWDM) uses the same transmission window but with denser channel spacing. Channel plans vary, but a typical system would use 40 channels at 100 GHz spacing or 80 channels with 50 GHz spacing.

Dense wavelength division multiplexing (DWDM) refers originally to optical signals multiplexed within the 1550nm band so as to leverage the capabilities (and cost) of erbium doped fiber amplifiers (EDFAs), which are effective for wavelengths between approximately 1525–1565nm (C band), or 1570–1610nm (L band).

Fs 20160606174047_413.jpg
Related Picture:

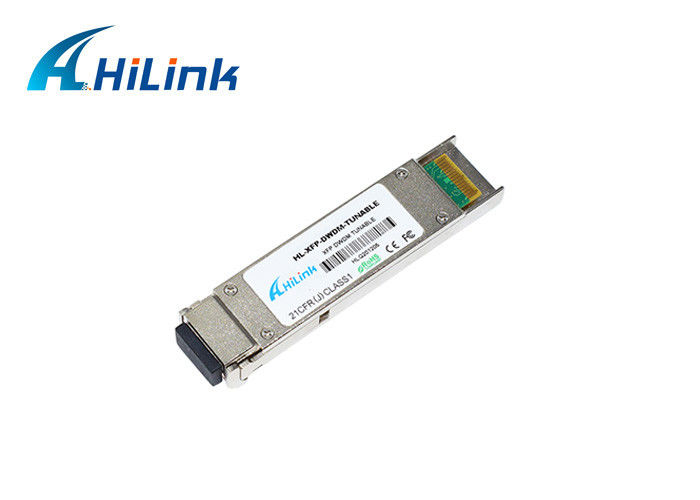

10G DWDM Tunable XFP SFP+ Transceiver Module 80km Tunable EML APD 1

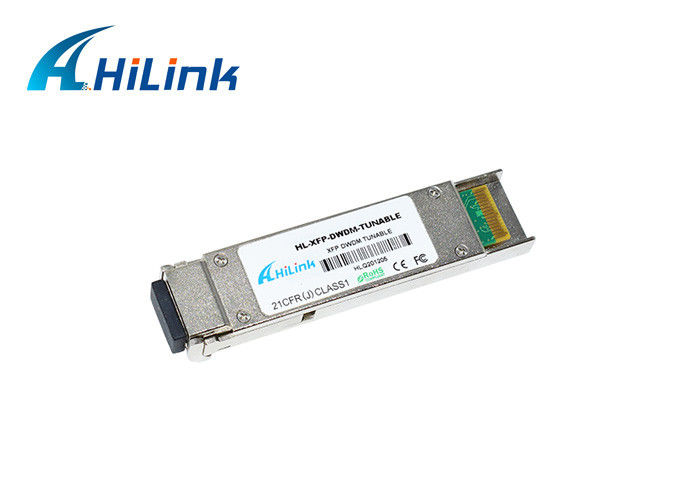

10G DWDM Tunable XFP SFP+ Transceiver Module 80km Tunable EML APD 2

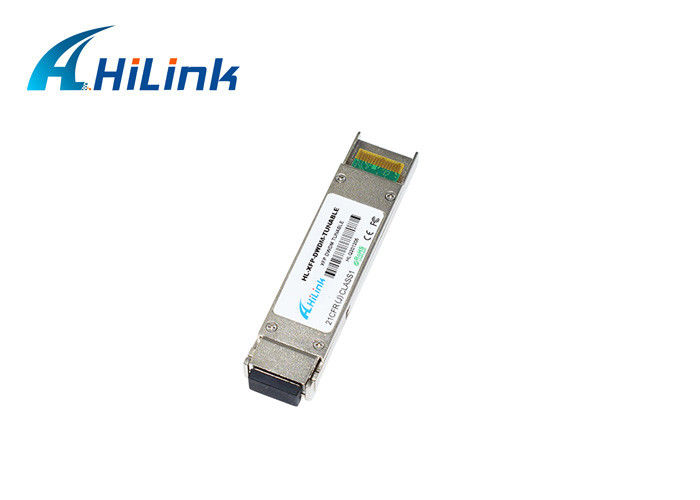

10G DWDM Tunable XFP SFP+ Transceiver Module 80km Tunable EML APD 3
10G DWDM Tunable XFP SFP+ Transceiver Module 80km Tunable EML APD 410G DWDM Tunable XFP SFP+ Transceiver Module 80km Tunable EML APD 5
