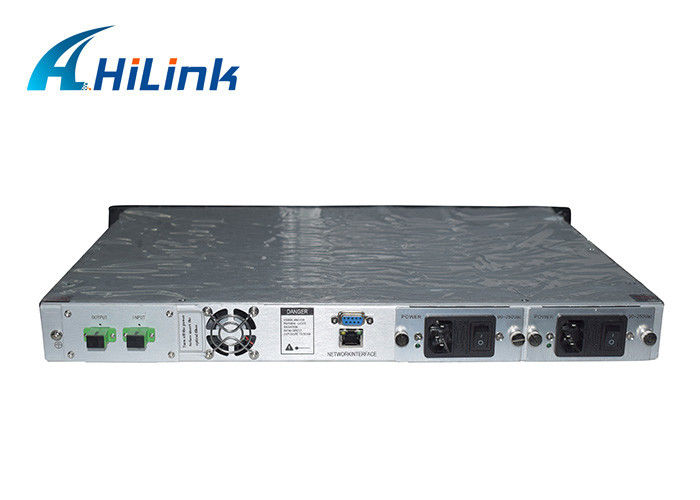

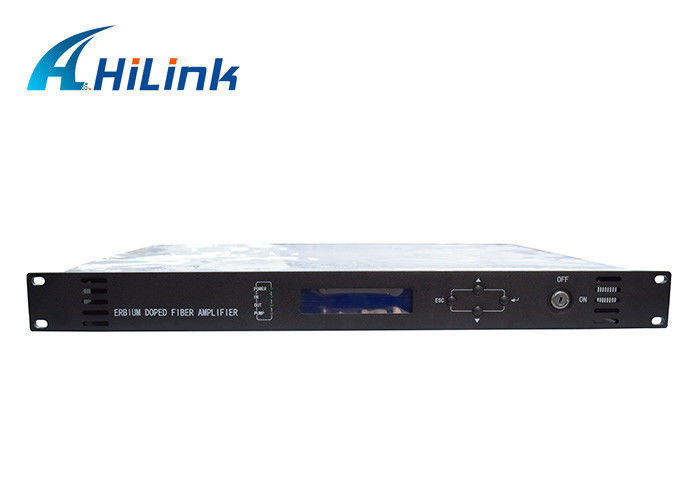

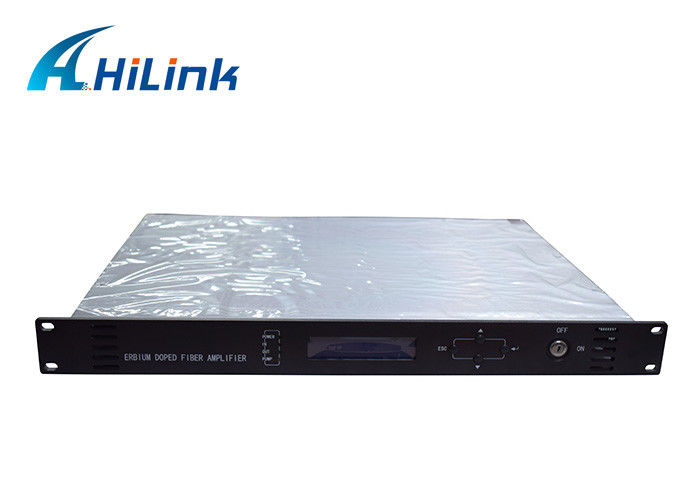

Name: 1U Chassis BA 15db EDFA Optical Amplifier AGC APC Circuit
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-EDFA-15
Price: 130.00 USD
Availability: InStock

Home > products > WDM Solution >

1U Chassis BA 15db EDFA Optical Amplifier AGC APC Circuit

1U Chassis EDFA Optical Amplifier

BA 15db EDFA Optical Amplifier

AGC APC EDFA Booster

Place of Origin:

China

Brand Name:

OEM

Certification:

CE FCC Rohs

Model Number:

HL-EDFA-15

Request A Quote

Product Details

Amplifier Type:

Booster EDFA

Input Power:

-10~+10dBm

Output Power:

20dBm

Operation Modes:

AGC/APC Circuit

Operating Wavelength:

1530nm~1562nm

Low Noise Figure:

Typical<4.5dB

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

paper box

Delivery Time

3-6days

Payment Terms

T/T, Western Union

Supply Ability

100pcs/week

CWDM 1*8CH 8Channel CWDM MUX/DEMUX 8CH 19 inch 1U CWDM Devices System

Get Best Price

Video

8CH CWDM 1270nm-1410nm 8Channel CWDM DEMUX LGX Package CWDM Devices

Get Best Price

Video

5U Chassis 19" OEO/DWDM MUX DEMUX Fiber Optic Equipment Chassis With EDFA/OLP/10G

Get Best Price

Video

1U HLBOX1500P Box Type DWDM System 120KM 8X100Gbps 1U 19' DWDM

Get Best Price

86-755-8317-6243

Contact Now

Product Description

EDFA Optical Amplifier 1U Chassis BA 15db Gain 20db Output LC

Description

EDFA is a high performance optical product . High dependability, low noise, especially double pump design makes a better noise figure. And with high performance to price ratio, it is suitable for using in large and middle-size network.

- Double pump structure (980nm,1480nm).

- Microprocessor automatic control circuit.

- high performance Erbium-Doped fiber.

- Low noise, high power and excellent reliability.

- Output optical power 14 ~ 24 dBm.

- 19” 1U standard framework

Product Description

The c-band 1550nm edfa 23dBm is multi-channel EDFA of high flattening and high stable output. The kernel component of the product is high availability pump laser and high-performance gain flattening filters. The c-band 1550nm edfa 23dBm has high stable output, high gain flatness and high reliability by using unique APC (automatic power control) and ATC (automatic temperature control).

The c-band 1550nm edfa 23dBm’s flatness and noise can achieve the best optimization by the gain flattening filters of professional design. The system is convenient to regulation and display, reliable, intelligent by using high stable and high precision MPU.

Product Features

C-band 1550nm EDFA 23dBm

·Low-noise high flatness design
·Adjustable output power
·High precision ATC keep system stableoperation
·Precision AGC / APC circuit keeps the output
·Power stability

·Card design highly integrated, space-saving cabinet
·Expansion is very convenient
·Strict accordance with Bellcore GR-1312-CORE
·requirement for design
