QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter

QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter

Product Details:

Place of Origin: China
Brand Name: Hilink
Certification: CE,ROHS,FCC
Model Number: HL-200G QSFP56 DAC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000pcs/month
Get Best Price Contact Now

Detail Information

Keywords: HL-QSFP-200G DAC Length: 3 Meters
Datarate: 200G LOGO: Can Be Customised
OEM: Support Delievery Time: 3-10 Working Days
Type: 26AWG Certification: CE RoHs
High Light:

QSFP56 200G Direct Attach Cable

,

Direct Attach Cable PAM 3m

,

HL-QSFP-200G DAC Passive Copper Cable

Product Description

QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter



200G QSFP56 Direct Attach Cable PAM 3 Meters Direct Attach Copper Cable for Datacenter



General Description

QSFP56 passive copper cable assembly feature eight differential copper pairs,providing four
data transmission channels at speeds up to 56Gbps(PAM4) per channel,and meets 200G
Ethernet and InfiniBand Enhanced Data Rate(EDR) requirements.
Available in a broad rang of wire gages-from 26AWG through 30AWG-this 200G copper cable
assembly features low insertion loss and low cross talk.
QSFP56 uses PAM4 signals for transmission, which doubles the rate. However, there are more
stringent requirements for cable insertion loss. For detailed requirements, please see High
Speed Characteristics.
Designed for applications in the data center,networking and telecommunications markets that
require a high speed,reliable cable assembly,this next generation product shares the same
mating interface with QSFP+ form factor ,making it backward compatible with existing QSFP
ports.
Features and Benefits
Compatible with IEEE 802.3bj and IEEE 802.3cd
In accordance with the paging function in the protocol SFF-8636, paging can be selected
00H or 02H in 127 bytes
Supports aggregate data rates of 200Gbps(PAM4)
Optimized construction to minimize insertion loss and cross talk
Backward compatible with existing QSFP+ connectors and cages
Pull-to-release slide latch design
26AWG through 30AWG cable
Straight and break out assembly configurations available
Customized cable braid termination limits EMI radiation
Customizable EEPROM mapping for cable signature
RoHS omplia



Product Applications
Switches,servers and routers
Data Center networks
Storage area networks
High performance computing
Telecommunication and wireless infrastructure
Medical diagnostics and networking
Test and measurement equipment
Industry Standards
200G Ethernet(IEEE 802.3cd)
InfiniBand EDR
SFF-8665 QSFP+28G
Technical Documents
108-32081 QSFP28 Copper Module Direct Attach Cable AssemblyApplicable Industry Documents

The following documents, of the latest issues in effect at the time of performance of the qualification tests, shall form a part of this specification to the extent specified herewith.

Product Offering



Notes:

The 24AWG cable is outstanding designed for specified cable brand.

T.B.D means to be designed and tested by individual cases and conditions.

Please contact us for customized products not listed in the above table.



Our Service:

1. Contact our sales for more details to confirm your order.

2. Short lead time after confirmation.
3. We deliver goods by international Express.
4. Quick response for customers' feedback and other questions.





Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.

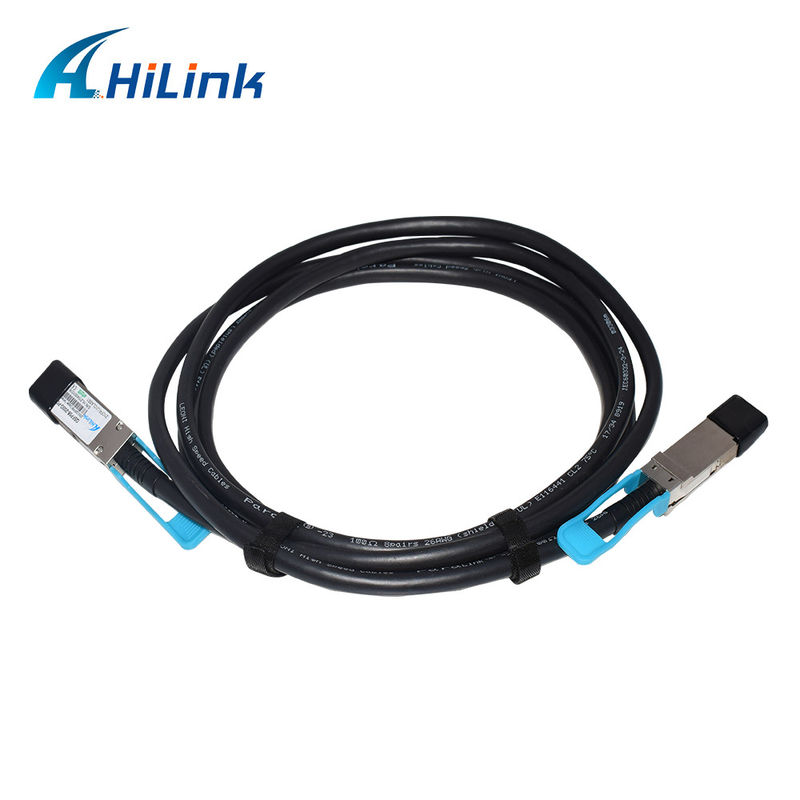

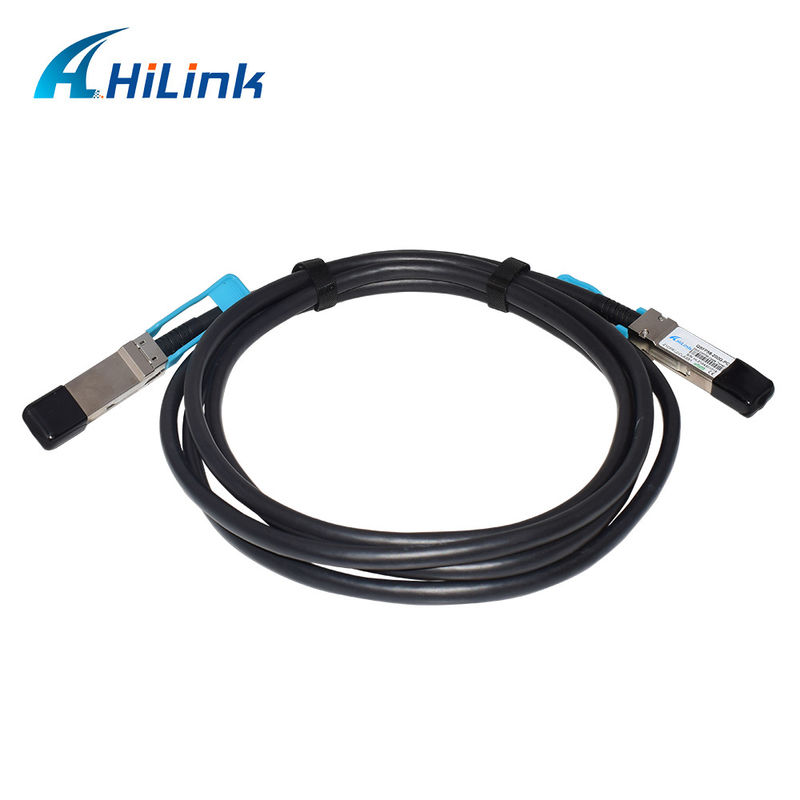

Real picture

QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter 0QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter 1QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter 2QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter 3

QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter 4QSFP56 200G Direct Attach Cable PAM 3m HL-QSFP-200G DAC For Datacenter 5



一.OEM and ODM

OEM/ODM order is available.

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.



What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.





FAQ

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use second-hand components.



Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.



Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.



Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.



Q:What devices can your products compatible with?

A:Our products are compatible with Mainstream switches.



Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
